Alfa Romeo 145/146 Factory Service Manual (1994-1999)05 · Gearbox
05 · Transmission

Removal/Refitting (1910 JTD) (page 2 of 8)

Make
Alfa Romeo
Model
145/146 Factory Service Manual
Year
1994–1999
Section
Removal/Refitting (1910 JTD)
GearboxRemoval/Refitting (1910 JTD) · page 2 of 8

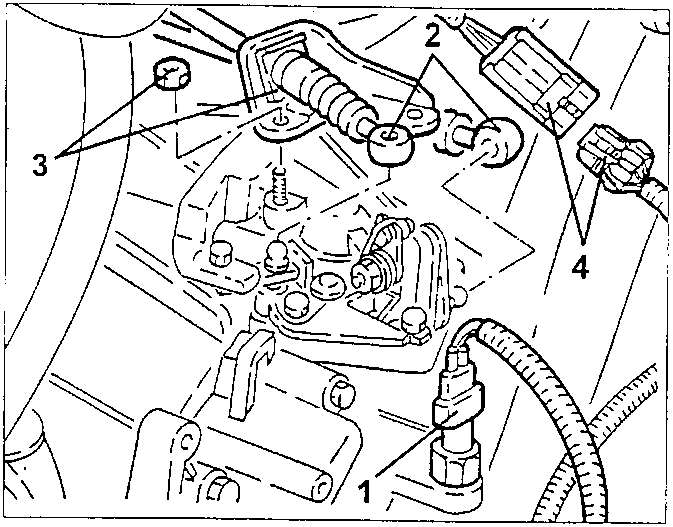

  1. Disconnect the electrical connection from the reverse gear switch.
  2. Disconnect the gearshift selection and engagement cables.
  3. Slacken the nuts and move aside the support brackets complete with gearshift selection and engagement cables.
  4. Disconnect the electrical connection of the speedometer sensor.
Diagram showing reverse gear switch, gearshift selection and engagement cables, and speedometer sensor connections.

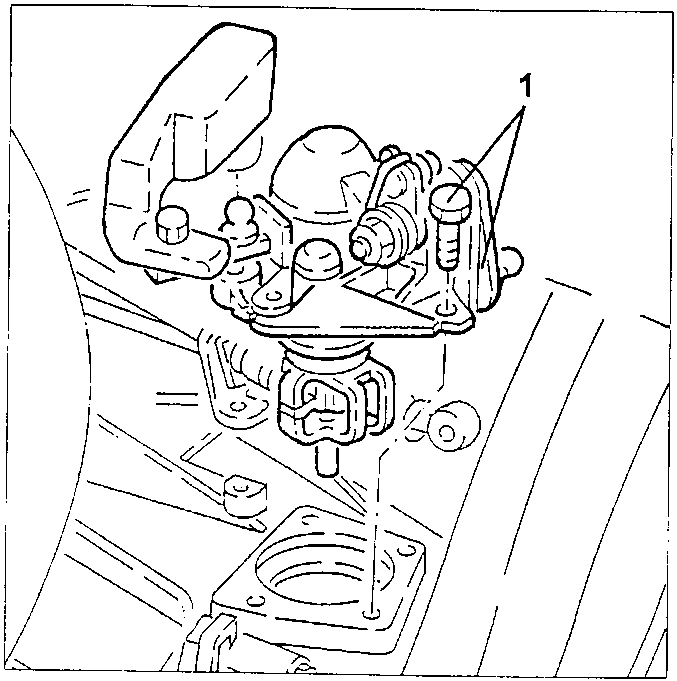

  1. Slacken the fastening screws and remove the gear selection and engagement unit.
Diagram showing gear selection and engagement unit with fastening screws.

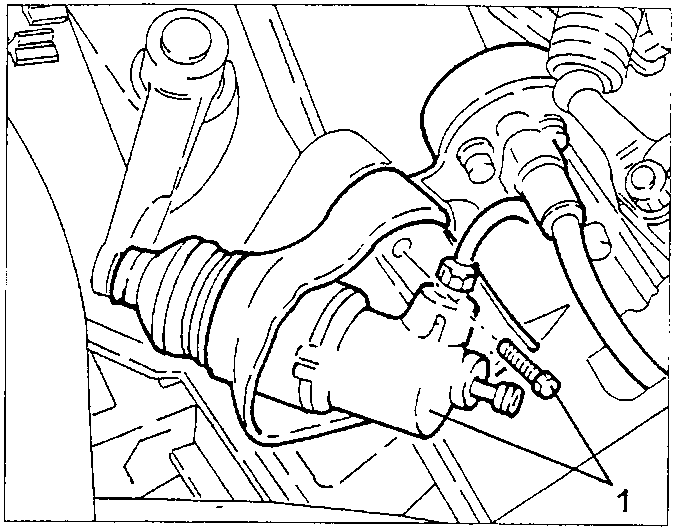

  1. Slacken the fastening screws and move the operating cylinder complete with pipes and vibration damper.
Diagram showing gearbox mounting area with upper gearbox fastening screws.

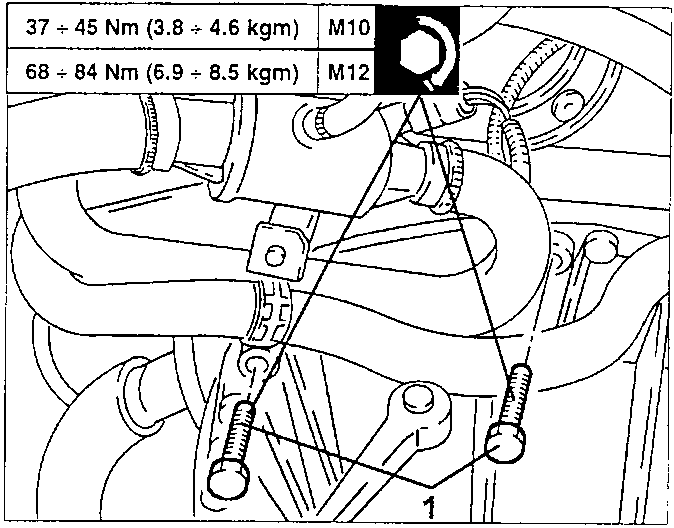

  1. Slacken the two upper gearbox fastening screws.

45 Nm (3.8 ÷ 4.6 kgm) M10
68 ÷ 84 Nm (6.9 ÷ 8.5 kgm) M12

Diagram showing gearbox mounting area with upper gearbox fastening screws and torque values.

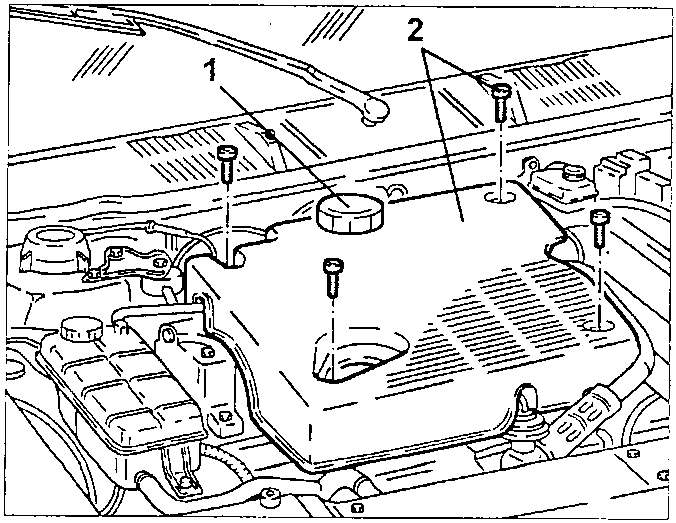

  1. Remove the engine oil filler cap.
  2. Slacken the fastening screws and remove the engine cover.
  • Refit the engine oil filler cap.
Diagram showing engine cover removal with oil filler cap and fastening screws.
