Removal/Refitting (1910 JTD) (page 3 of 8)

Make

Alfa Romeo

Model

145/146 Factory Service Manual

Year

1994–1999

Section

Removal/Refitting (1910 JTD)

GearboxRemoval/Refitting (1910 JTD) · page 3 of 8

• Remove the front bumper (see GROUP 70).

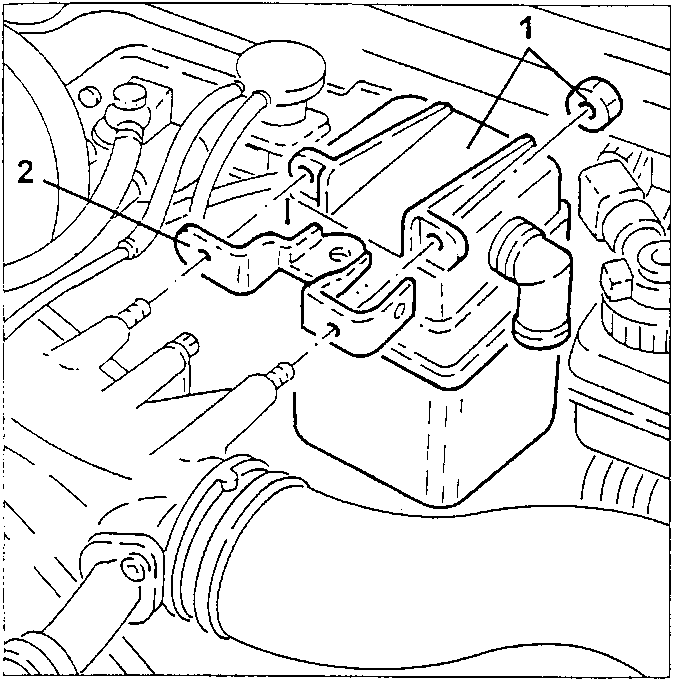

1. Slacken the fastening nuts and move the oil vapour separator just enough to disconnect the corresponding pipes, then remove it.
2. Retrieve the bracket.

• Release the clamp fastening the oil vapour recovery pipe from the tappet cover.
• Release the delivery and return pipes to the climate control system heater from the fastening clamps.

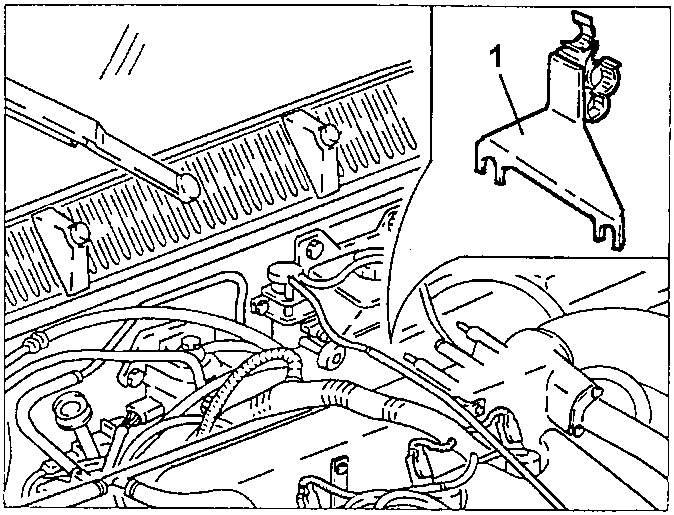

1. Slacken the upper screws fastening the starter motor, then remove the pipe support bracket.

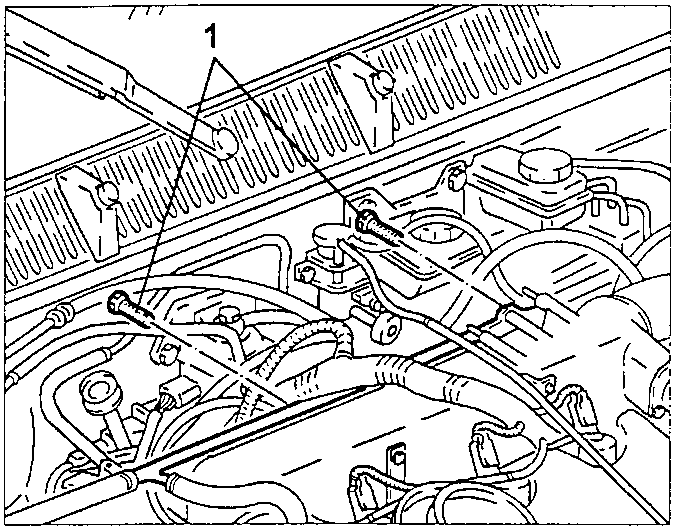

1. Slacken the fastening screws of the coolant fluid return pipe to the header tank.

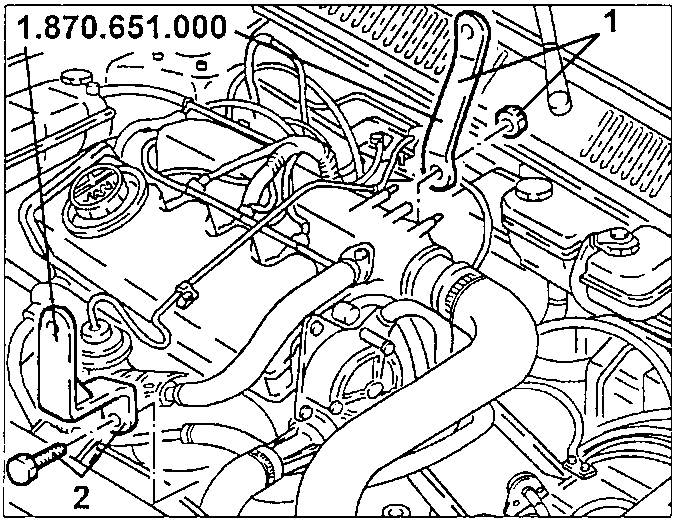

1. Install the rear bracket no. 1.870.651.000 and fasten it with an air box fastening nut.
2. Install the front bracket no. 1.870.651.000 and fasten it with the screw fastening the stiff coolant fluid delivery pipe to the engine oil heat exchanger.
