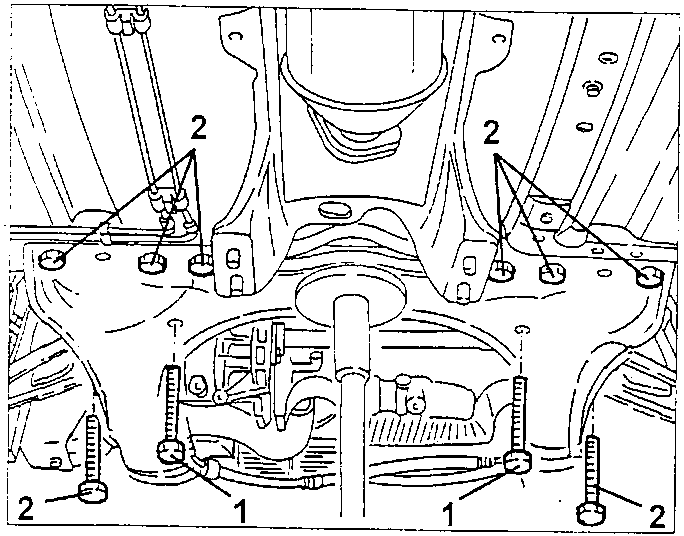

1. Slacken the screws fastening the power steering box to the front suspension cross rail.
   - Slacken the screws fastening sound-absorbing protections to the front suspension cross rail.
   2. Slacken the side and rear screws fastening the front suspension cross rail to the body.

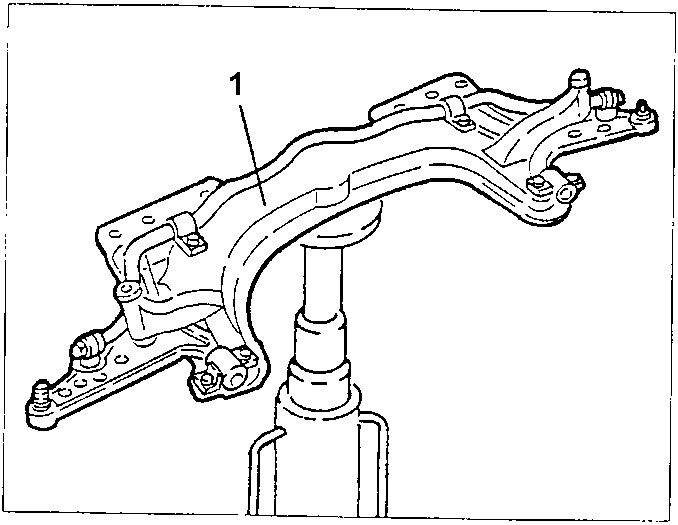

1. Lower the hydraulic jack and remove the front suspension cross rail complete with stabiliser bar and wishbones.

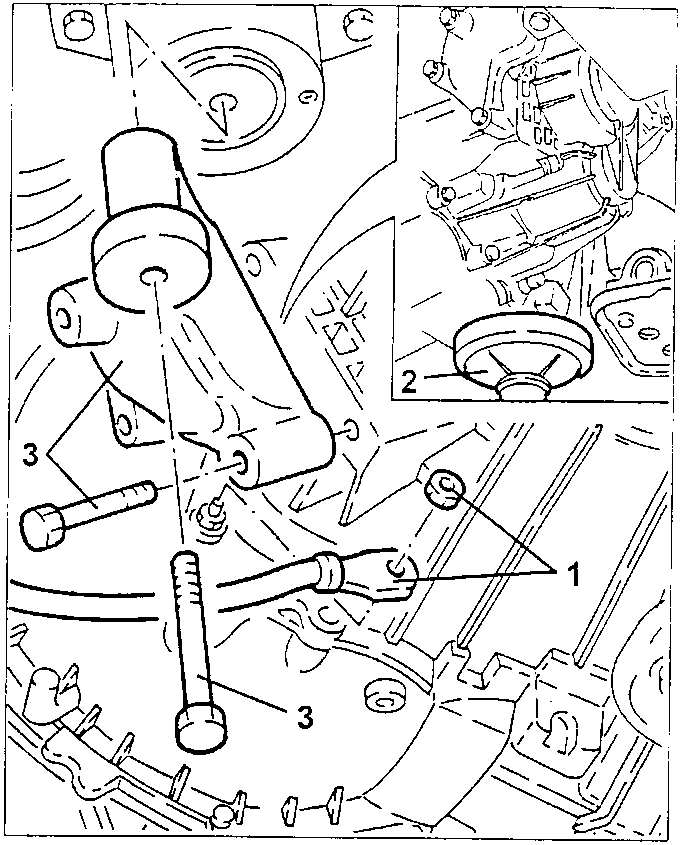

1. Slacken the nut and disconnect the gearbox earth cable.
2. Set a hydraulic jack under the gearbox.

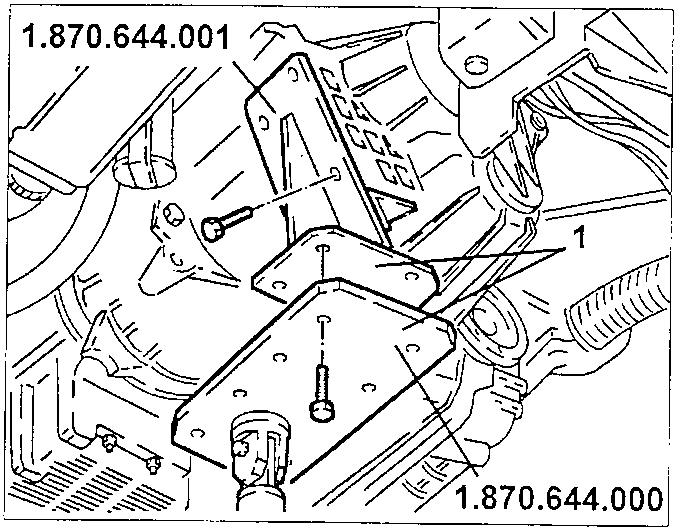

1. Support the gearbox with a hydraulic jack fitted with tools no. 1.870.644.000 and no. 1.870.644.001.

3. Slacken the screws and remove the gearbox stiff side support.
