Removal/Refitting (1910 JTD) (page 8 of 8)

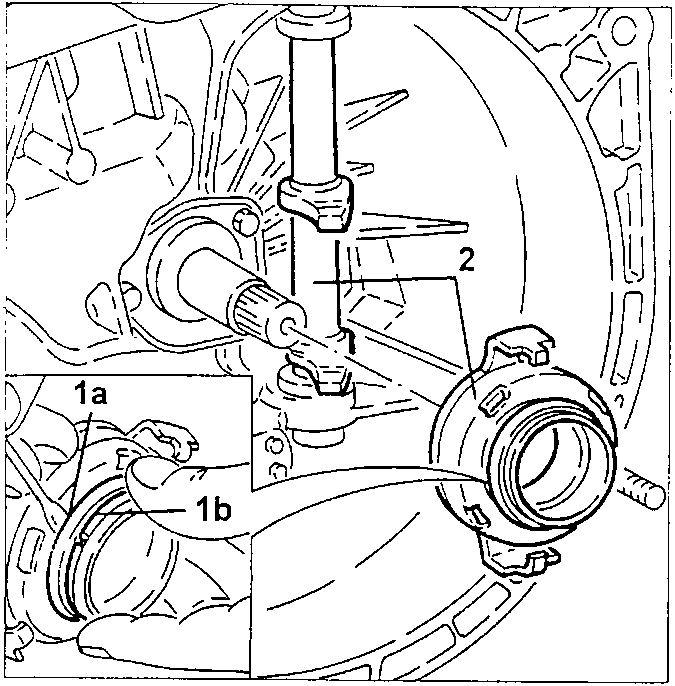

1. Raise the taper ring (1a) of the thrust bearing until covering the spring (1b).
2. Install the thrust bearing on the main shaft and couple it with the fork pin.

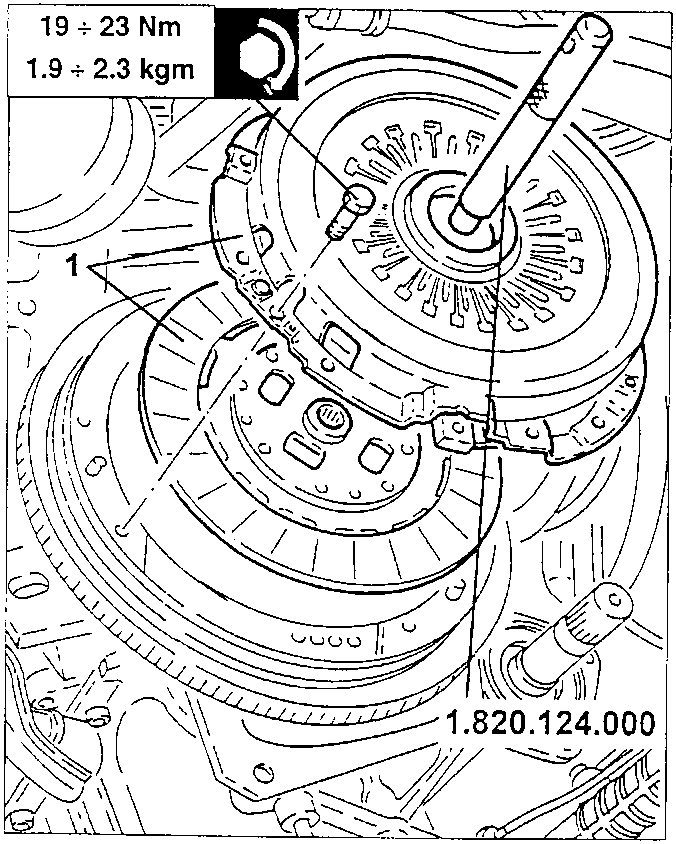

1. Install the clutch plate and clutch box centring them with tool no. 1.820.124.000.

19 ÷ 23 Nm
1.9 ÷ 2.3 kgm

• After assembling the gearbox and fastening it with its screws, work on the clutch control lever to engage the thrust bearing on the clutch.
• Complete refitting, reversing the sequence followed for removal up to assembly of the gear selection/engagement unit, then adjust the gear selection/engagement cables as described below.

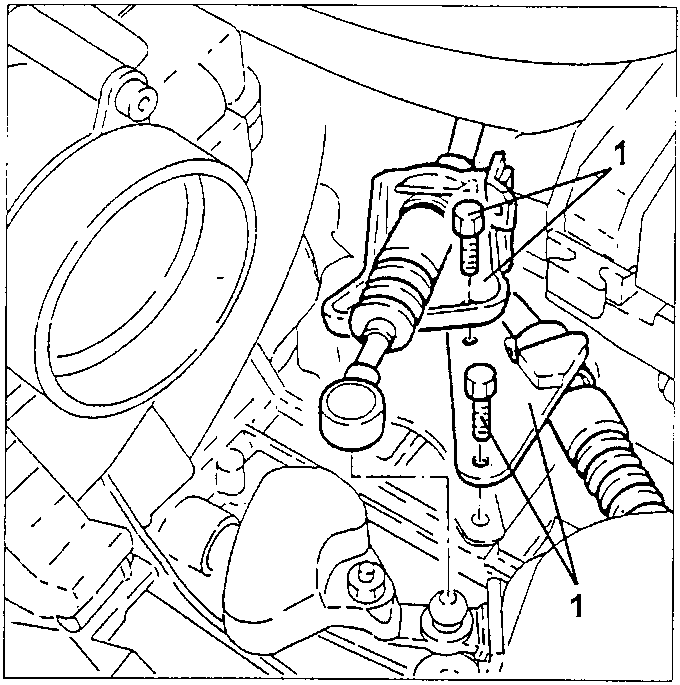

1. Refit the support brackets complete with gear selection and engagement cables and fasten them with their nuts.

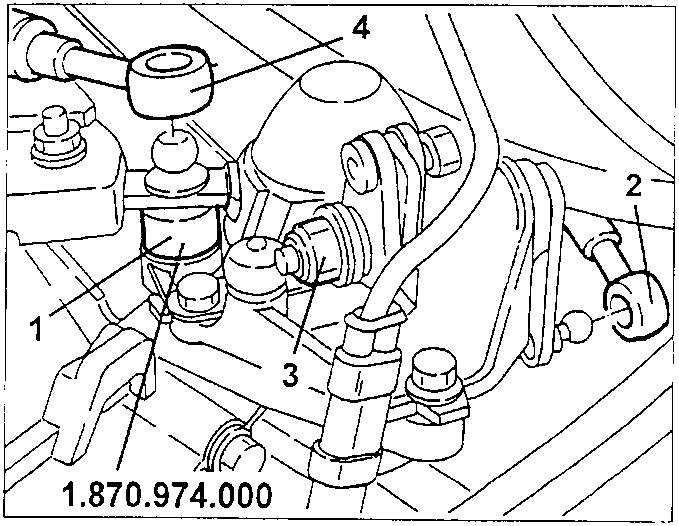

1. Install tool no. 1.870.974.000 under the gear engagement cable catch ball.
2. Connect the gear selection cable.
3. Loosen the adjustment nut of the gear selection/engagement unit.

• Tighten the adjustment nut of the gear selection/engagement unit after positioning the gearshift lever to neutral and moving it completely to the right.

4. Connect the gearshift engagement cable.

• Position the gearshift lever at reverse and remove the tool no. 1.870.974.000.

• Complete refitting, reversing the sequence followed for removal.
