Removal/Refitting (1910 JTD) (page 4 of 8)

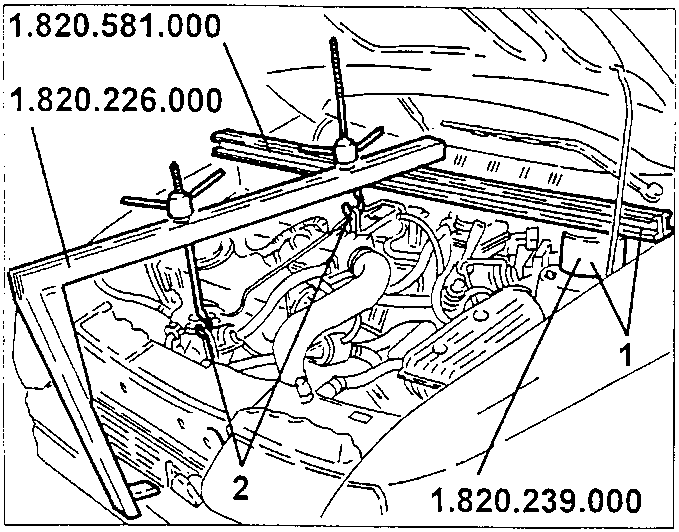

1. Install cross rail no. 1.820.581.000 complete with rest pads no. 1.820.239.000.
2. Install support no. 1.820.226.000 and connect the corresponding tie-rods to the brackets installed previously.

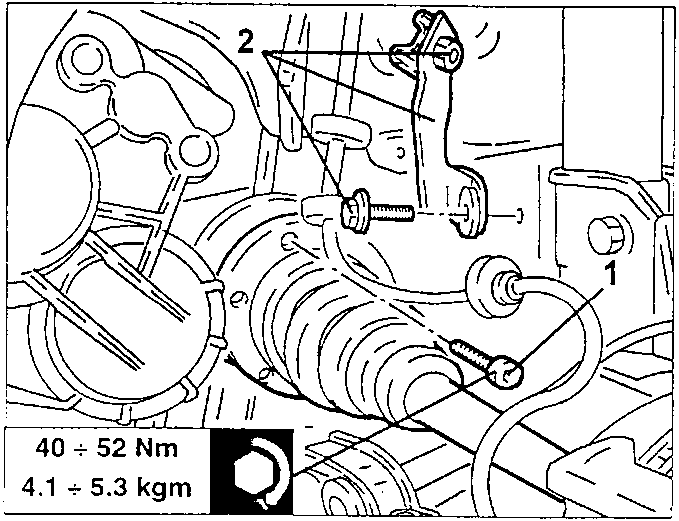

1. Slacken the bolts fastening the left axle shaft to the differential inner shaft.
2. Slacken the fastenings and remove the power steering pipe support bracket.

40 ÷ 52 Nm
4.1 ÷ 5.3 kgm

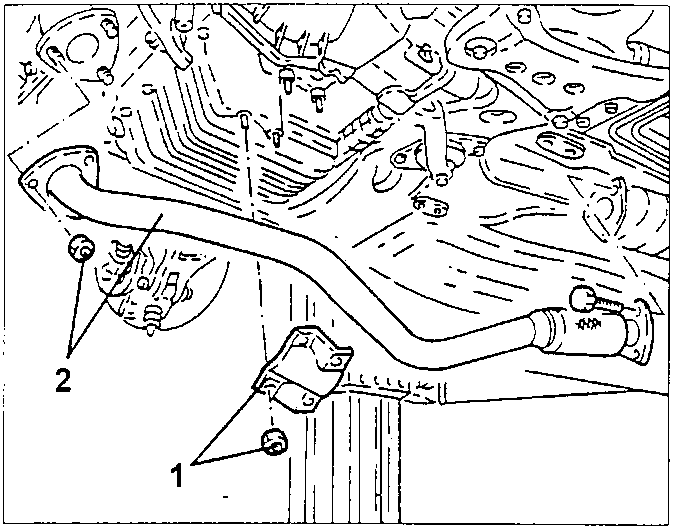

1. Slacken the fastening nuts and remove the reinforcement bracket.
2. Slacken the nuts and screws and remove the front section of the exhaust pipe.

• Remove the associated pipes.

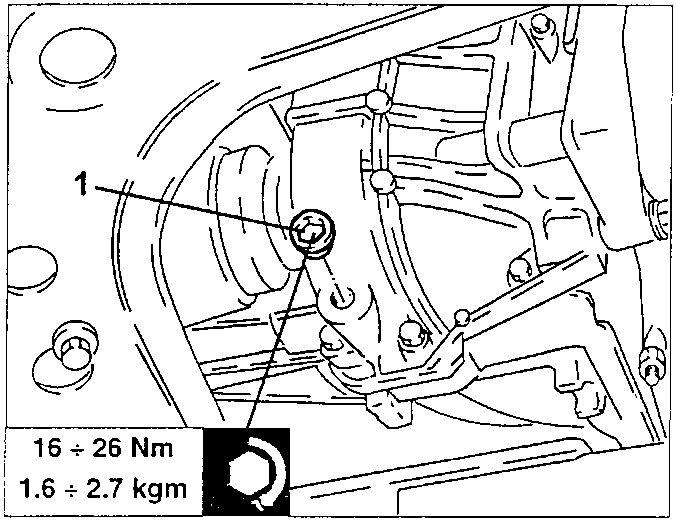

1. Slacken the drain cap and drain the gearbox/differential oil.

NOTE: Collect the gearbox/differential oil in a suitable container.

16 ÷ 26 Nm
1.6 ÷ 2.7 kgm

1. Slacken the nuts and remove the power steering box heat shield.
