Checking and adjusting valve clearance (page 2 of 2)

Make

Alfa Romeo

Model

145/146 Factory Service Manual

Year

1994–1999

Section

Maintenance

Technical data and maintenanceChecking and adjusting valve clearance · page 2 of 2

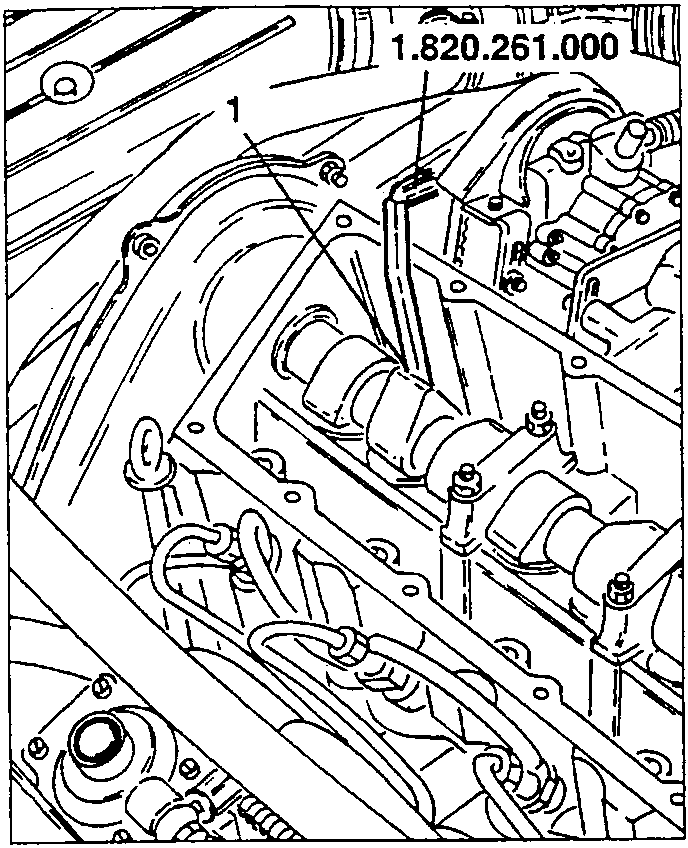

1. Position tappet support tool N° 1.820.261.000 and turn the notches on the edge of the tappet to facilitate the subsequent extraction of the regulating plate to be replaced.

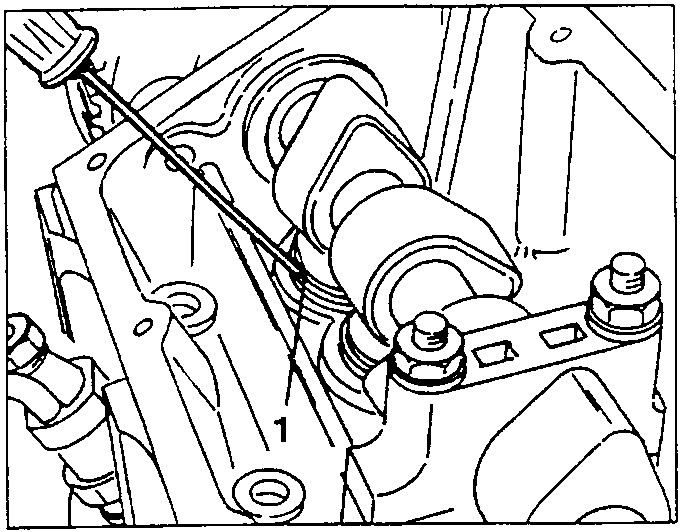

1. Extract and remove the tappet regulating plate.

• Replace the plate removed beforehand with another which has the correct thickness to reset the correct valve clearance, then repeat the above mentioned operations for the remaining valves.

02 Maintenance
