Technical data and maintenanceReplacement of the transmission control belt · page 2 of 2

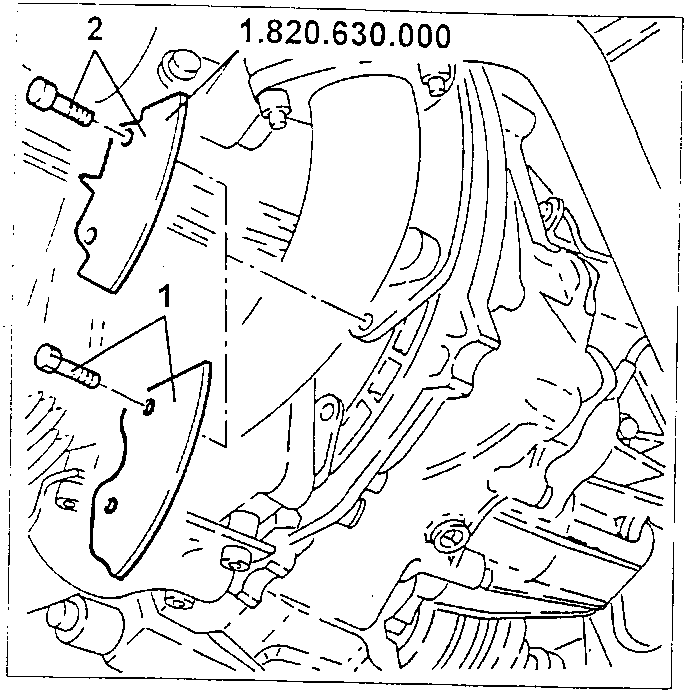

1. Unscrew the screws and remove the lower protection of the engine flywheel.
2. Mount the tool to stop the flywheel N° 1.820.630.000.

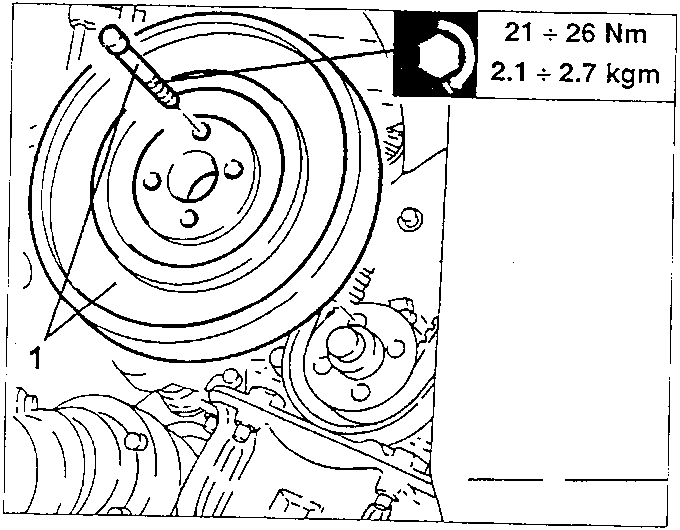

1. Unscrew the clamping screws and remove the driving shaft pulley.

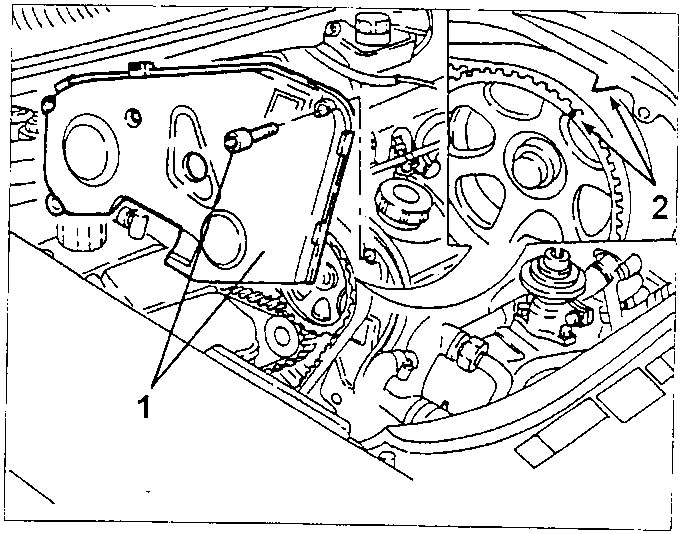

1. Unscrew the clamping screws and remove the upper protection of the transmission belt.
2. By acting onto the screw of the transmission pulley, make the driving shaft rotate till the timing references are aligned (1° cylinder at the TDC).

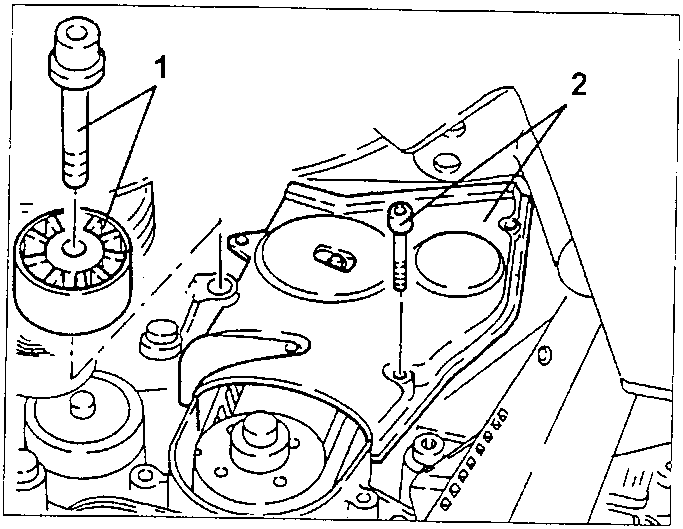

1. Unscrew the clamping screw and remove the fixed tightener of the engine belt.
2. Unscrew the clamping screws and remove the lower protection of the transmission belt.

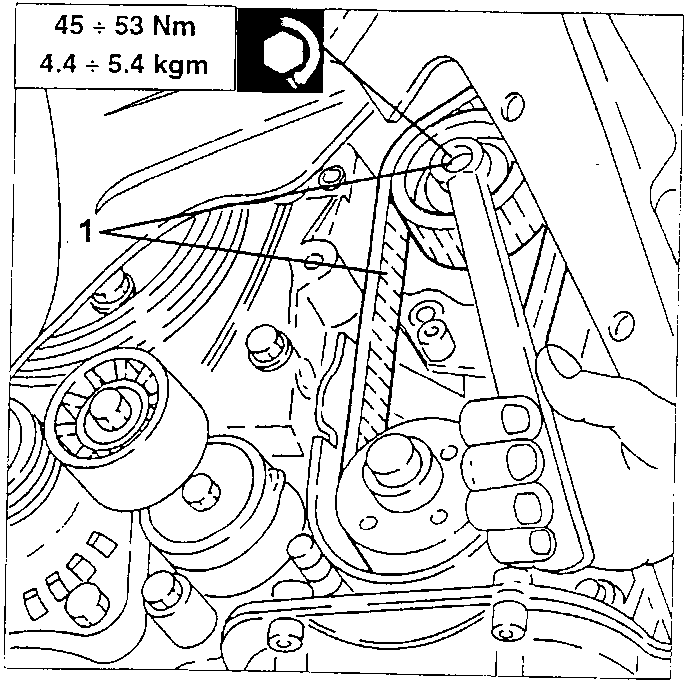

1. Loosen the clamping nut of the tightener of the transmission belt and hence remove the transmission belt itself.
