Checks and inspections

CHECKS AND INSPECTIONS

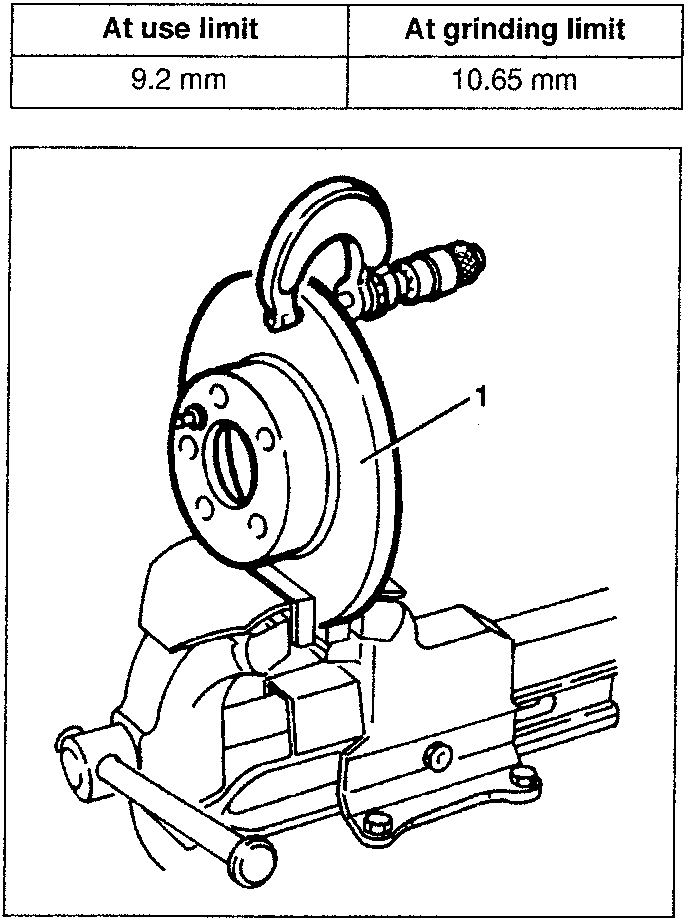

1. Check the thickness of the disks and check that the working surfaces have no deep scores or porosity. If necessary grind within the specified tolerances.

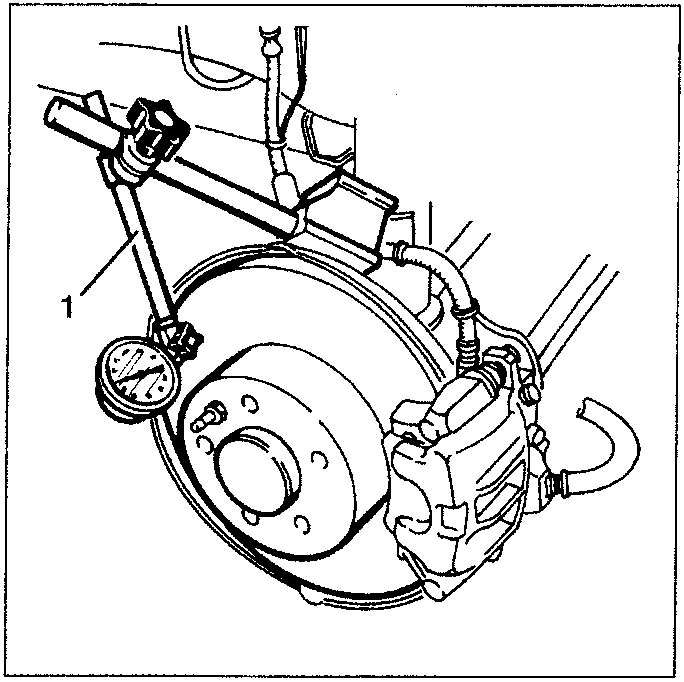

1. When changing the brake pads only, check that disk oscillation, with respect to the axis of rotation, is within the specified limits (0.15 mm max.).

NOTE: The value must be measured 2 mm from the outside diameter of the disk.

REAR BRAKE CALIPER REMOVAL / REFITTING

• Set the car on a lift.
• Empty the brake - clutch fluid reservoir.
• Remove the wheel on the side concerned.
• Remove the handbrake lever cover.

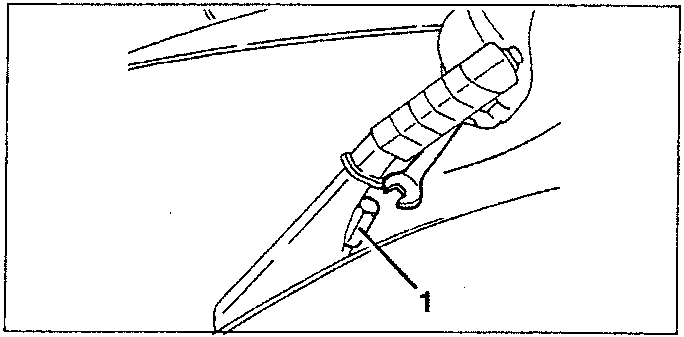

1. Working on the special adjustment nut on the handbrake lever, loosen the tension of the cables.

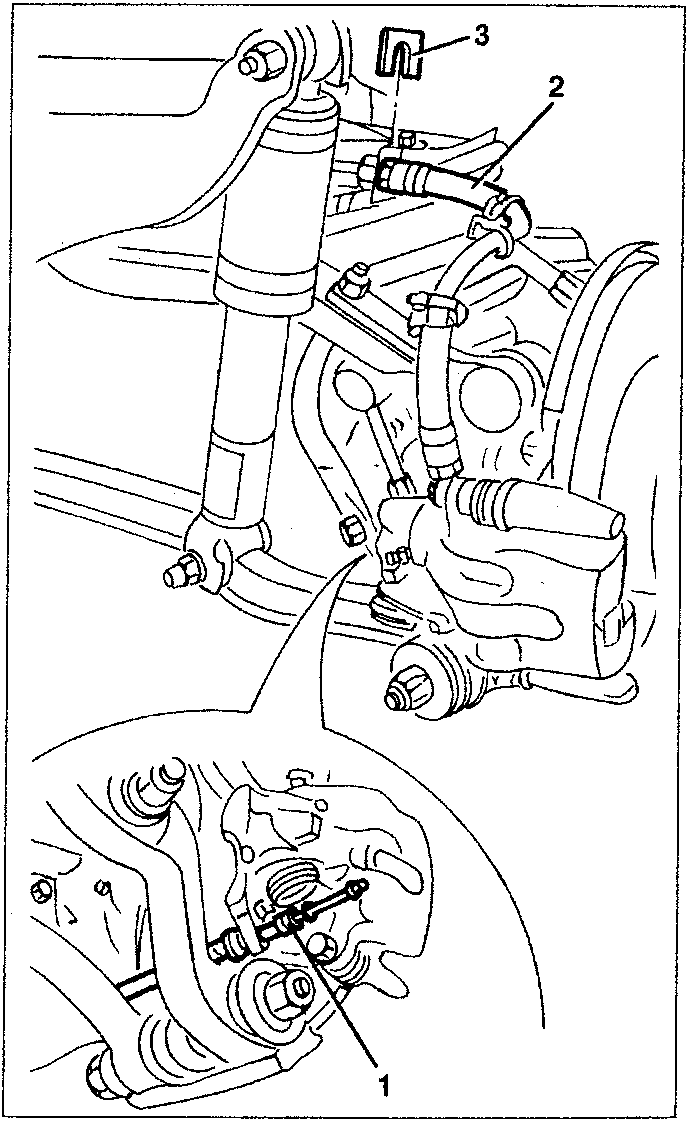

1. Disconnect the handbrake cable from the brake caliper.
2. Slacken the hose fitting.
3. Prise the brake and withdraw the hose fitting.
