Rear brake disk removal / refitting

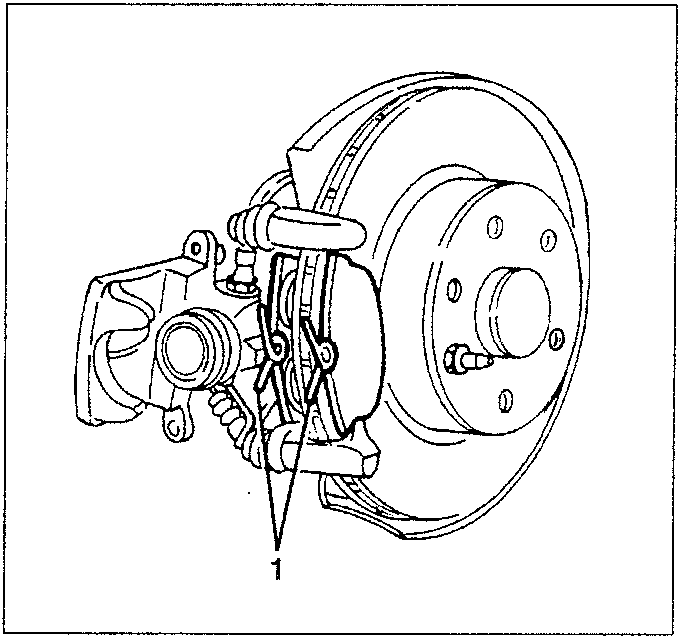

1. Turn the caliper as illustrated and change the brake pads.

NOTE: The brake pad, with the wear sensor must be fitted on the inner side of the disk (brake caliper piston side); at the same time, check the relief machined on the outer part of the pad, which should be positioned at the rear with respect to the direction of travel.

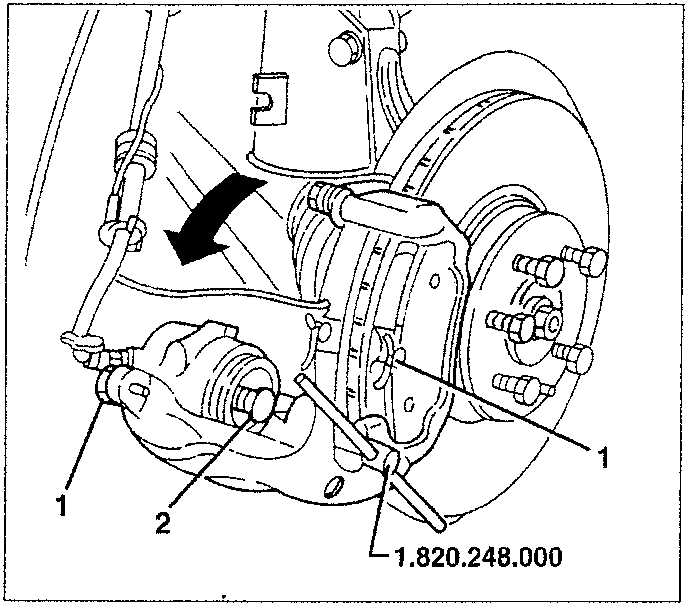

2. When refitting the caliper adjust the position of the piston using tool no. 1.820.248.000.

1. brake caliper
2. piston
3. tool no. 1.820.248.000

REAR BRAKE DISK REMOVAL / REFITTING

• Set the car on a lift.
• Remove the wheel on the side concerned.

31 ÷ 38 Nm
3.2 ÷ 3.9 Kgm

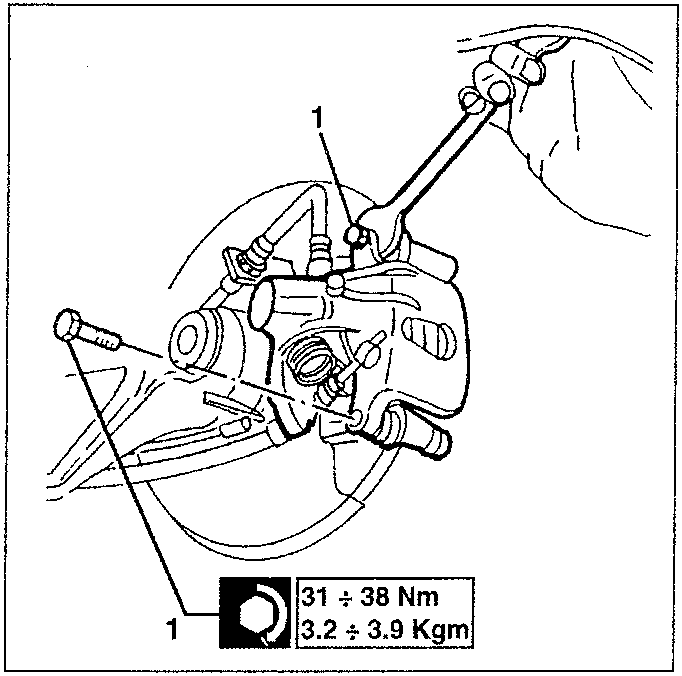

1. Remove the brake pads.

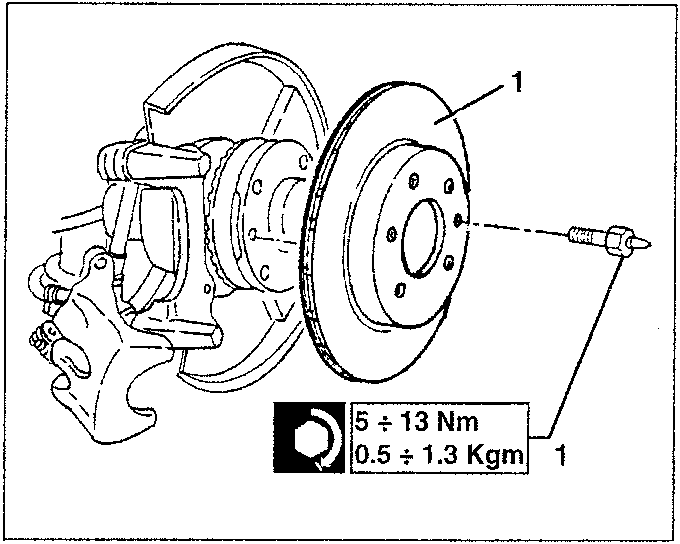

1. Slacken the fastening pin and remove the brake disk.

5 ÷ 13 Nm
0.5 ÷ 1.3 Kgm
