33 BrakesDis-assembly
  1. Slacken the two screws fastening the complete brake caliper.

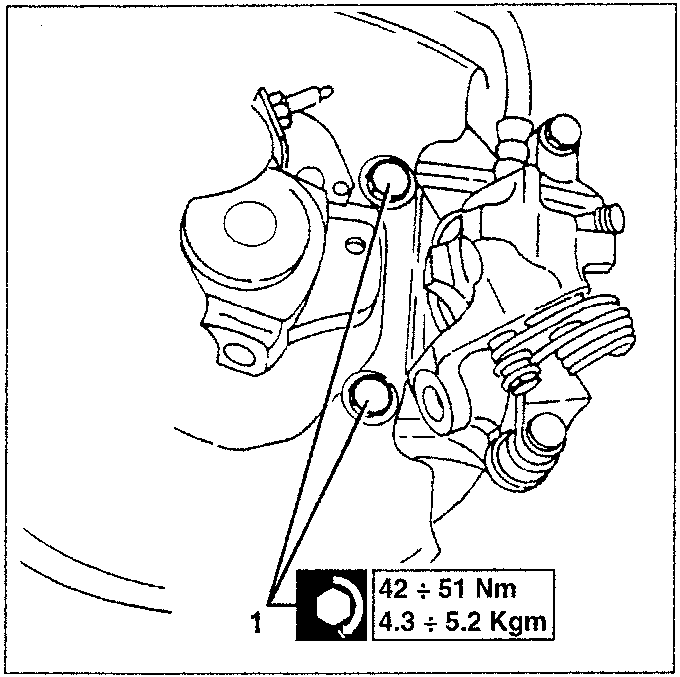

Brake caliper with two screws and torque specification box
  1. Remove the complete brake caliper.
    2. Retrieve the thickness.

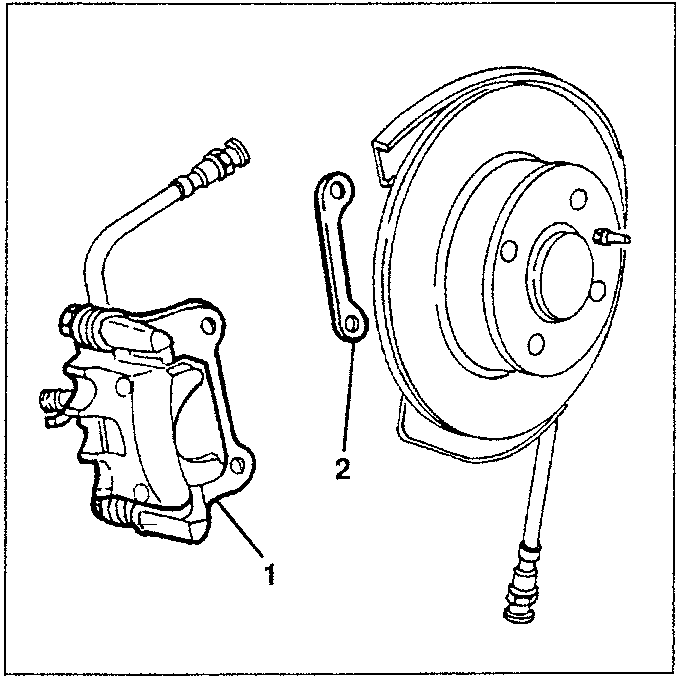

Brake caliper, brake pad, and brake disc

DIS-ASSEMBLY

  1. Disconnect the brake caliper hose fitting.

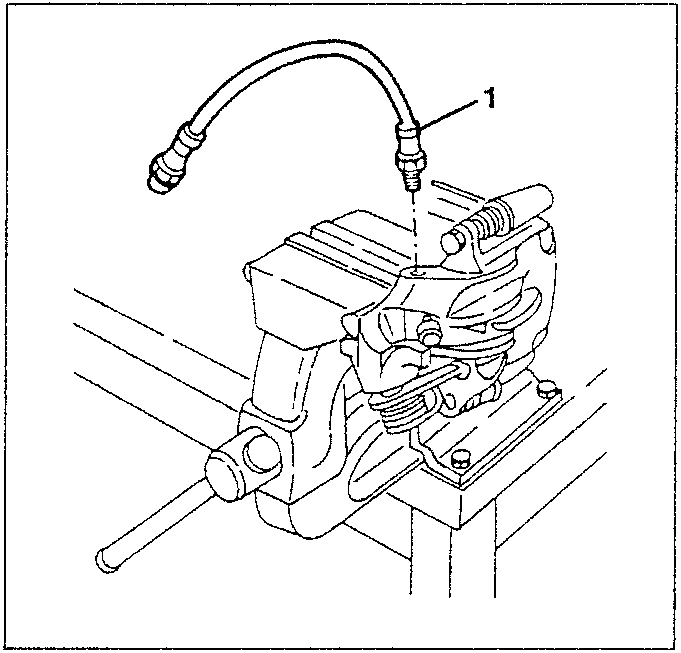

Brake caliper with hose fitting disconnected
  1. Slacken the two screws fastening the brake caliper to the support bracket and remove it.
    2. Retrieve the brake pads.

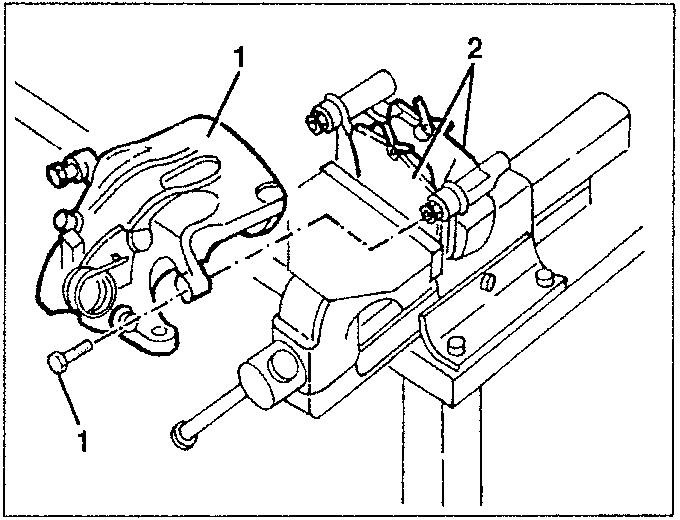

Brake caliper with brake pads removed

42 ÷ 51 Nm
4.3 ÷ 5.2 Kgm
