Reassembly

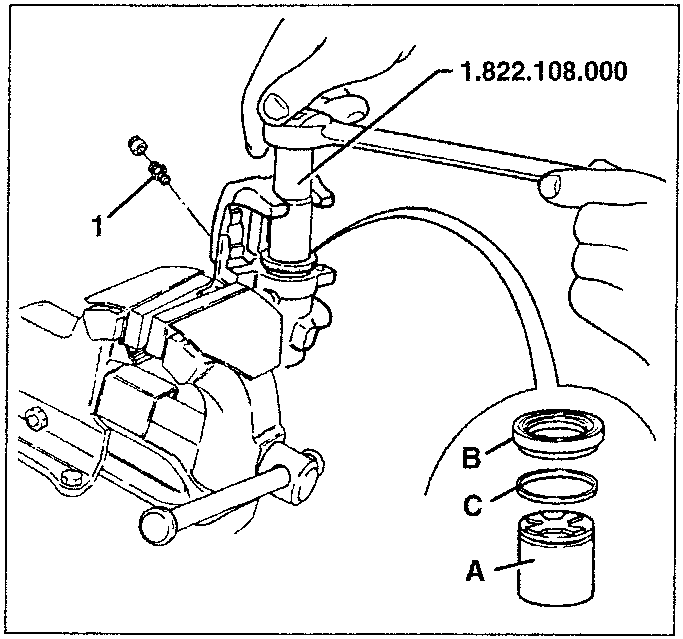

1. Remove the bleed screw.
   - Using tool no. 1.822.108.000, remove the piston (A), protection boot (B) and seal ring (C).

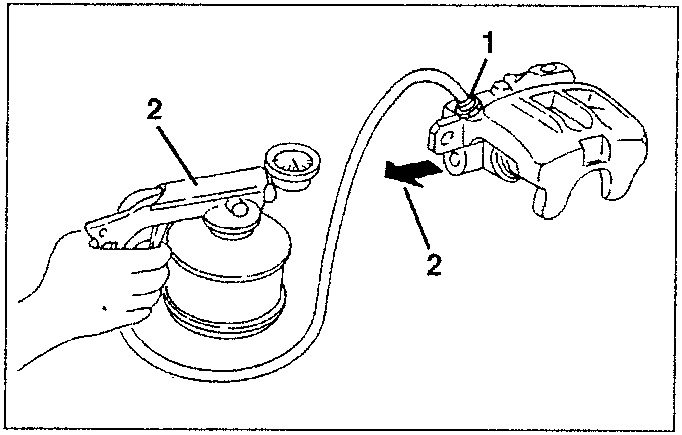

1. Partially tighten the bleed screw.
   2. Fill the caliper with the specified brake fluid until fluid without air bubbles comes out of the connection hole of the hose.

REASSEMBLY

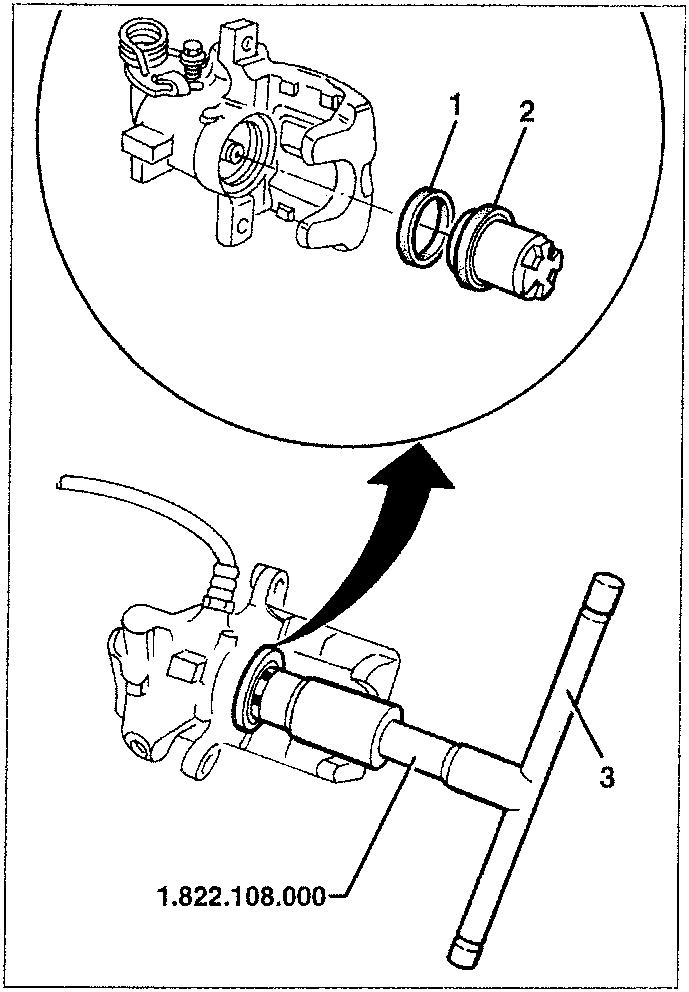

1. Fit the seal ring in the caliper body.
   2. Position the protection boot on the rear of the piston.
   3. Assemble the piston and adjust its position using tool no. 1.822.108.000.

13 ÷ 15 Nm
1.3 ÷ 1.5 Kgm

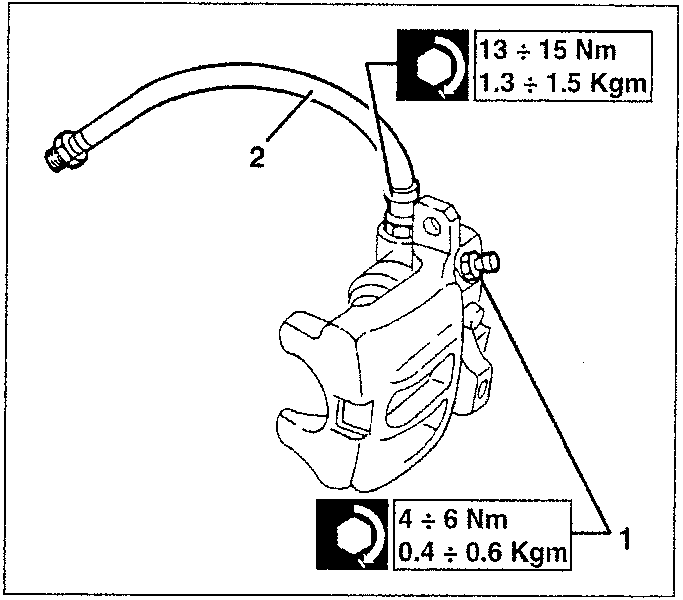

1. Tighten the bleed screw to the specified torque.
   2. Assemble the hose and lock the fitting to the specified torque.

4 ÷ 6 Nm
0.4 ÷ 0.6 Kgm

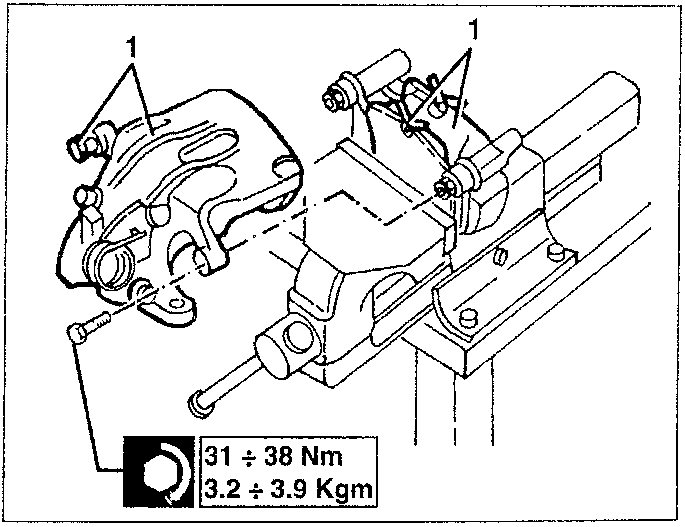

1. Position the brake pads, then assemble the brake caliper on the support tightening the new fastening screws to the specified torque.

31 ÷ 38 Nm
3.2 ÷ 3.9 Kgm
