FRONT BRAKE DISK

REMOVAL / REFITTING

  • Set the car on a lift.
  • Remove the wheel on the side concerned.
  1. Slacken the two screws fastening the brake caliper support plate.
  2. Remove and move aside the complete brake caliper without removing the piping and wiring.

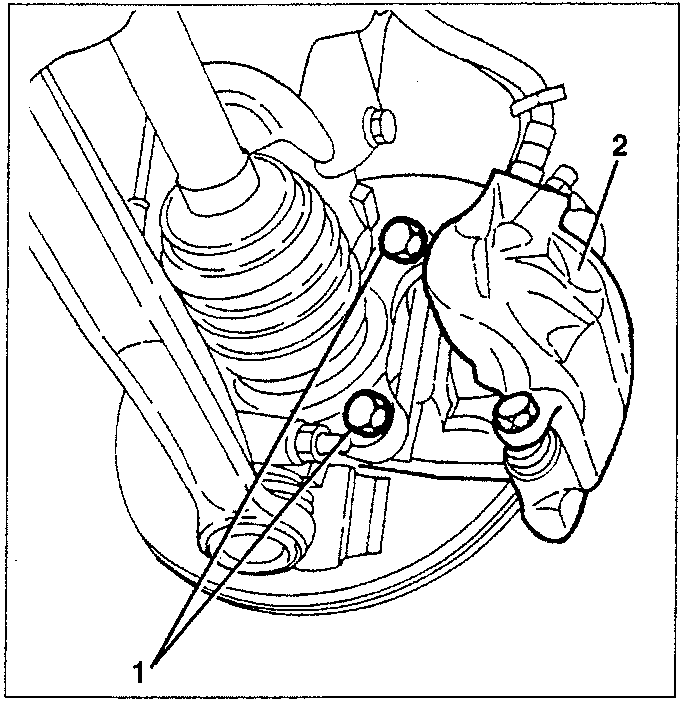

Front brake disk removal diagram showing brake caliper, pin, and screw locations

When refitting change the screws and tighten them to the specified torque (see GROUP 00).

  1. Slacken the fastening pin and remove the brake disk.

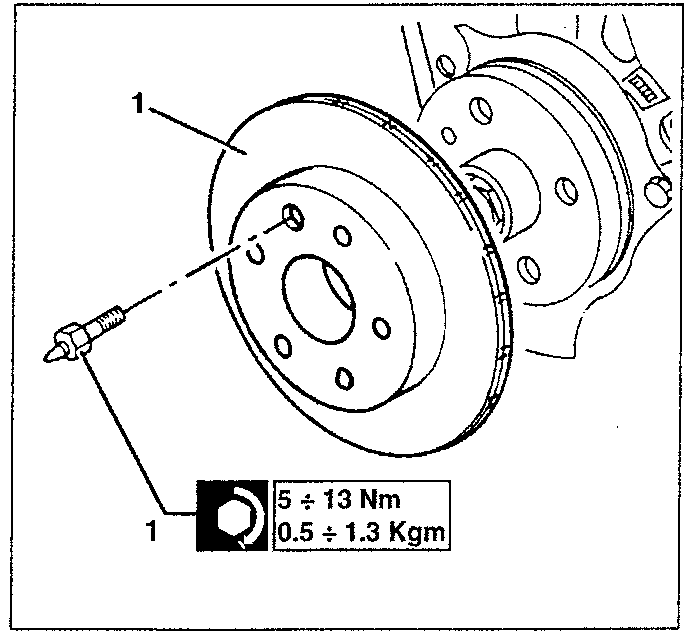

Front brake disk with fastening pin, showing torque specification

5 ÷ 13 Nm
0.5 ÷ 1.3 Kgm

CHECKS AND INSPECTIONS

  1. Check the thickness of the disks and check that the working surfaces have no deep scores or porosity. If necessary, grind respecting the specified tolerances.
Disk thickness At use limit Minimum after grinding
Spider 4 cyl.18.2 mm19.2 mm
Other versions20.2 mm21.9 mm

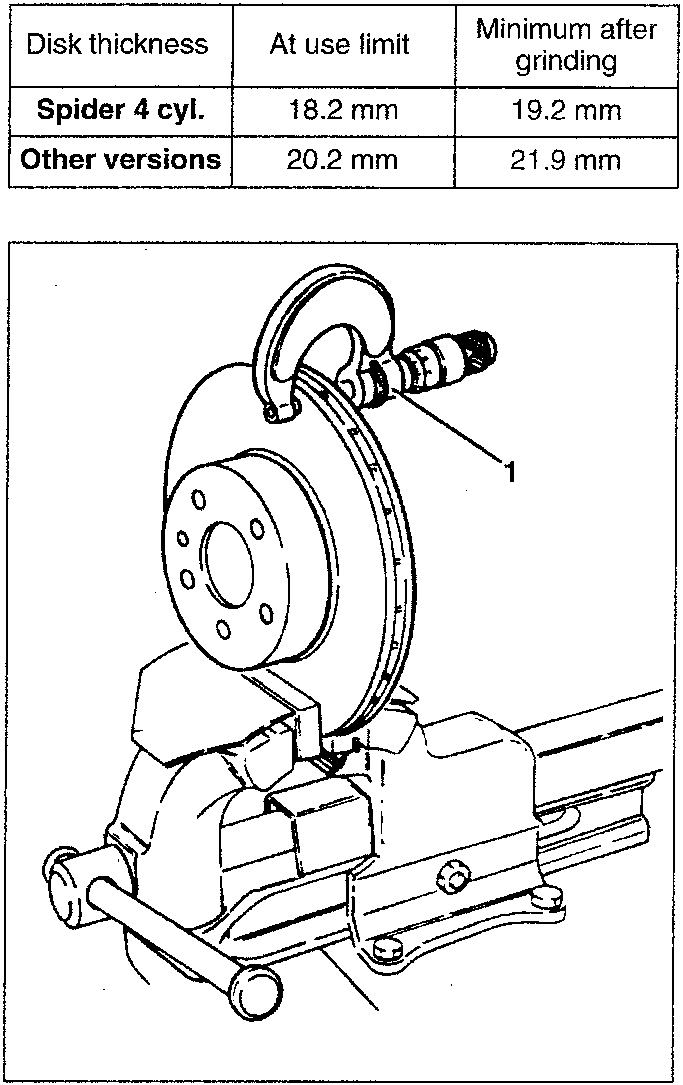

Brake disk thickness measurement tool setup
