Rear active sensors

REAR ACTIVE SENSORS

(6 Cylinder Version)

REMOVING / REFITTING

• Remove the wheel.

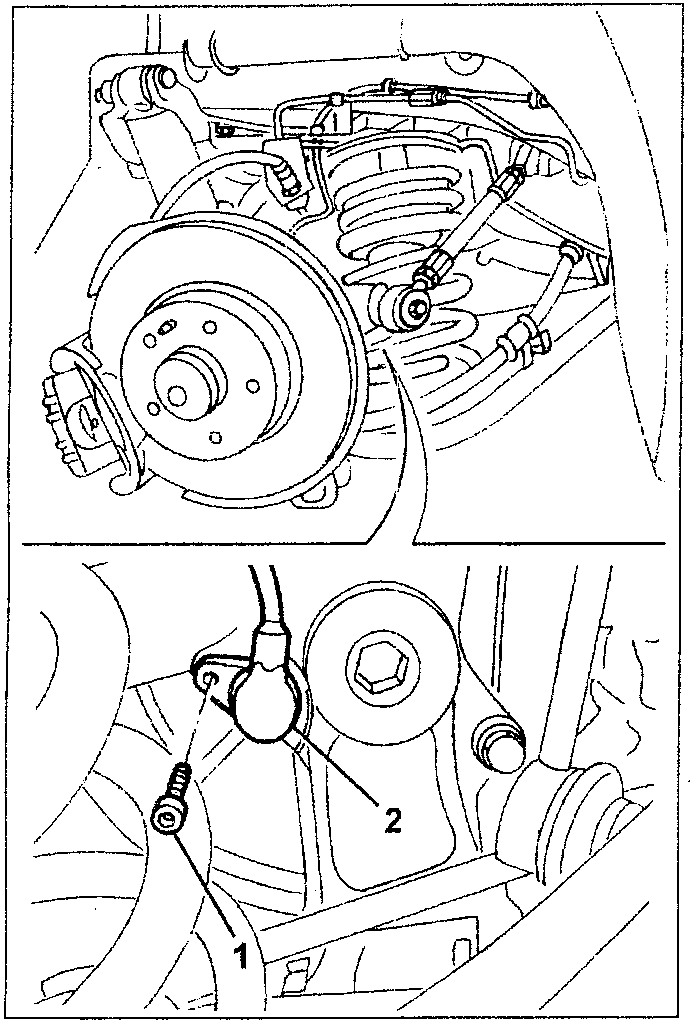

1. Undo the bolt fixing the active sensor.
2. Remove the active sensor from the housing.

1. Bolt
2. Housing

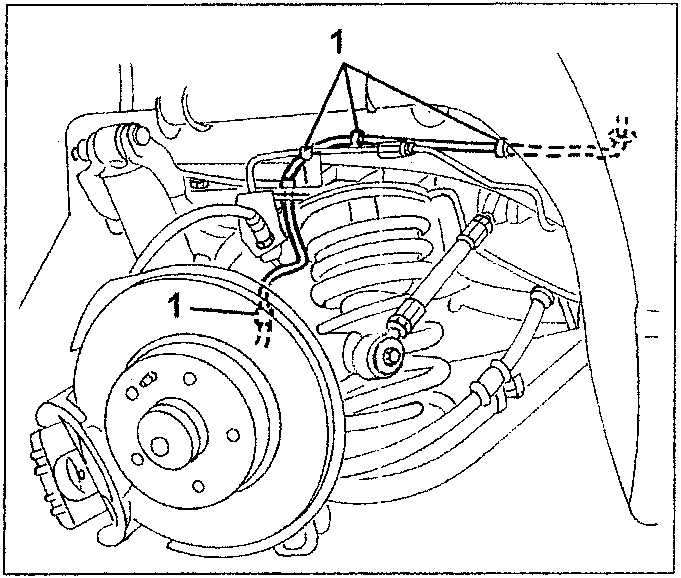

1. Disconnect the wiring for the active sensor from the retainers.

Spider

• Open the rear lid, lift up the side cover and gain access to the connector.

Gtv

• Remove the side panel (see GROUP 70)

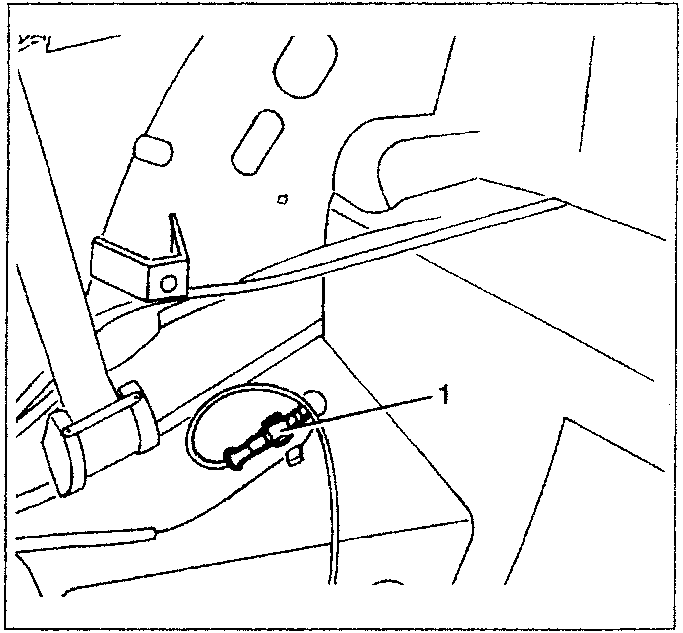

1. Disconnect the electrical connection for the sensor. Remove the sensor, extracting the connector from the lower side of the vehicle.

Proceed with the refitting, reversing the order of the operations carried out for the removal.
