33 BrakesRear inductive sensors
REAR INDUCTIVE SENSORS
REMOVAL / REFITTING

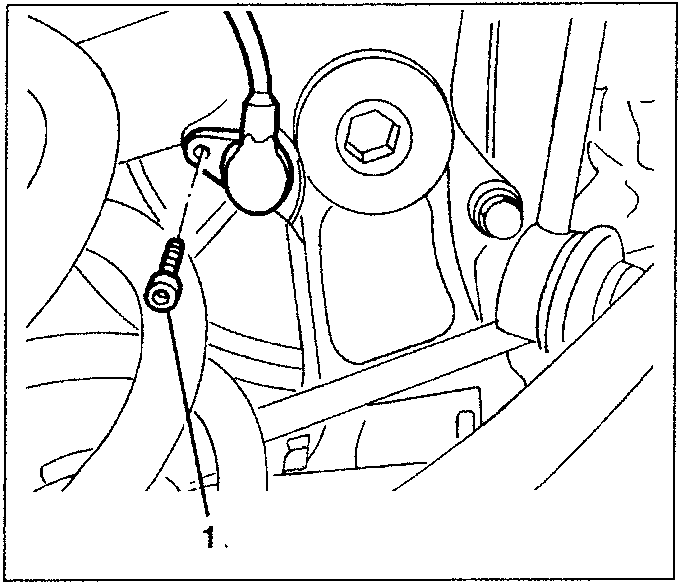

- Slacken the screw fastening the inductive sensor to the brake disk boot.
Spider
- Open the boot, raise and gain access to the connector.
Gtv
- Remove the side panel (see GROUP 70).

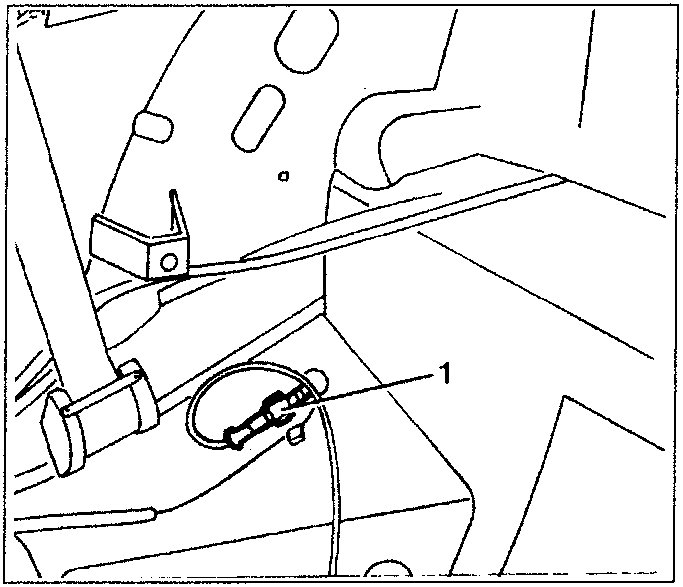

- Disconnect the electrical connection of the inductive sensor and remove it.
When refitting grease the seat of the inductive sensor with the specified grease.
CHECKING THE GAP
- Using a thickness gauge, check the gap between the inductive sensor and the corresponding phonic wheel
| Front gap | Rear gap |
| 0.3 ÷ 1.05 mm | 0.37 ÷ 0.9 mm |
The gap is not adjustable as no thicknesses are supplied for this purpose. Check that the sensor and the phonic wheel teeth are intact and if they are not within the specified tolerance.
