Description

DESCRIPTION

For the braking system particular solutions have been adopted in all the components to ensure stable and powerful braking suited to the high performance of the car.

The main features of the system are the following:

• BOSCH 2Si ABS (up to chassis no.__).
• BOSCH 5.3 ABS with EBD (from chassis no.__).
• Large disk diameter (front ventilated): ensure high heat dispersion thus effectiveness also during prolonged braking.

• Crossed circuit with braking load proportioning valve: ensuring high levels of safety in the event of a failure and preventing the rear wheels from locking.
• Servobrake with reduced loadless stroke: limits the pedal stroke and warrants quicker accurate braking.
• Brake linings in ecological material: in keeping with current environmental regulations.

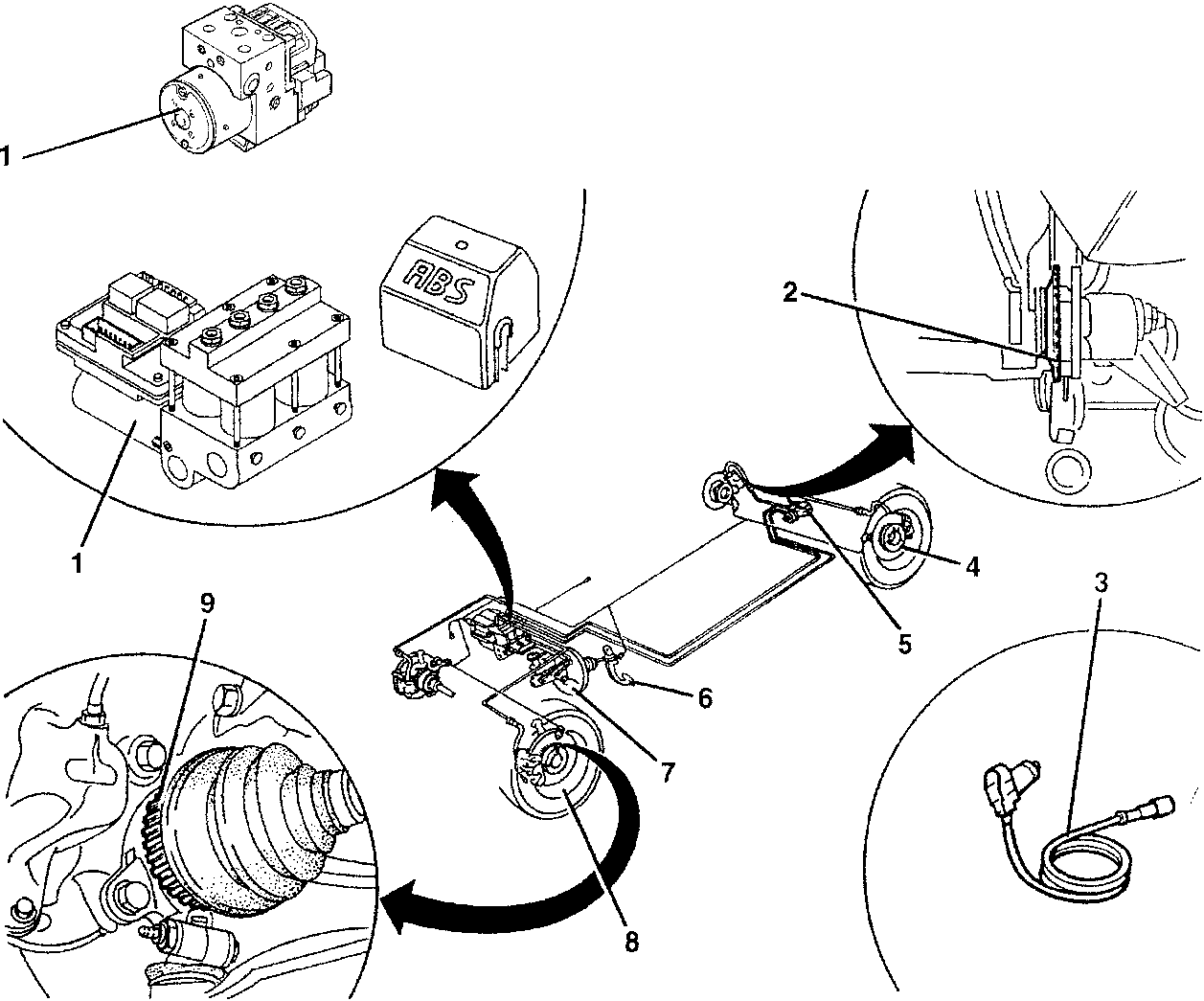

1. ABS hydraulic unit/electronic control unit
2. Rear phonic wheel
3. Inductive sensor
4. Rear disk
5. Braking load proportioning valve (up to chassis no.__)
6. Brake pedal
7. Servobrake
8. Ventilated front disk
9. Front phonic wheel
