RIGHT FRONT ACTIVE SENSOR

(6 Cylinder Version)

REMOVING / REFITTING

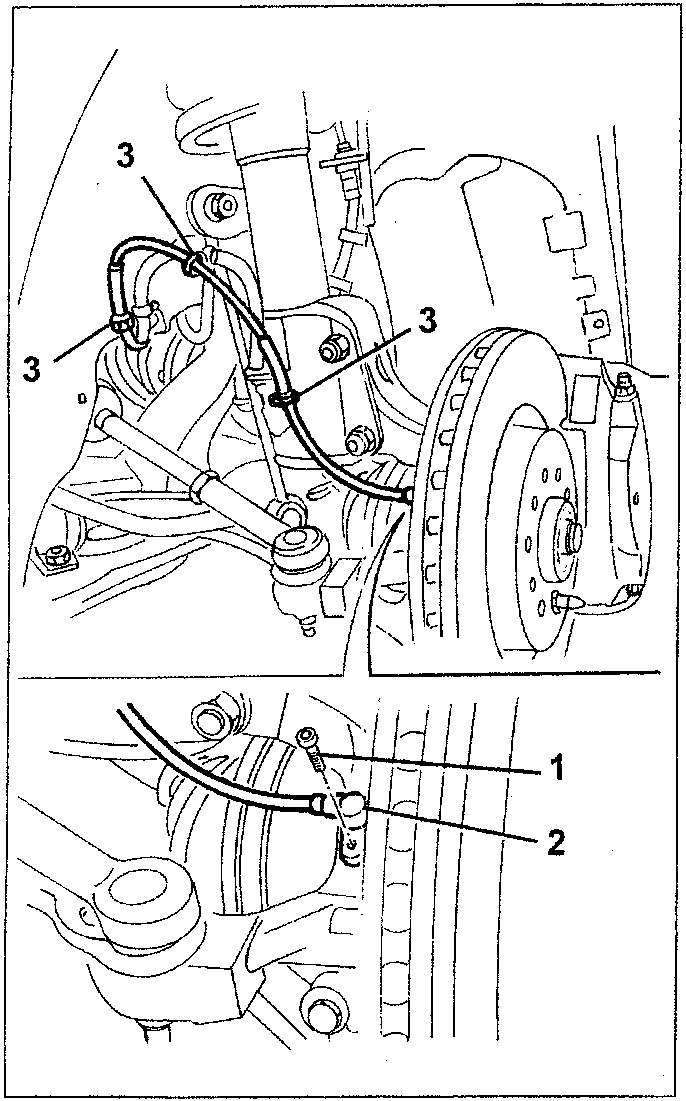

• Remove the wheel.
• Undo the bolt fixing the active sensor.
• Remove the active sensor from the housing.
• Disconnect the wiring for the active sensor from the retainers.

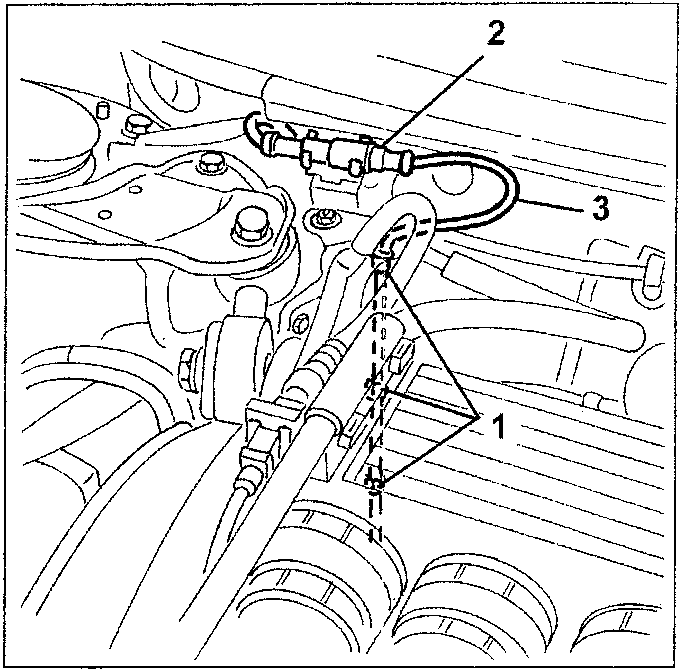

Open the bonnet lid.

1. Disconnect the wiring from the retainers.
2. Disconnect the electrical connection for the sensor.
3. Remove the sensor with the wiring.

Proceed with the refitting, reversing the order of the operations carried out for the removal.
