ABS BOSCH 2Si (up to chassis no.___) HYDRAULIC UNIT/ELECTRONIC CONTROL UNIT

REMOVAL / REFITTING

• Disconnect the battery negative terminal.
• Remove the corrugated air inlet pipe (see GROUP 10).
• Empty and then remove the brake - clutch fluid reservoir (see specific paragraph).

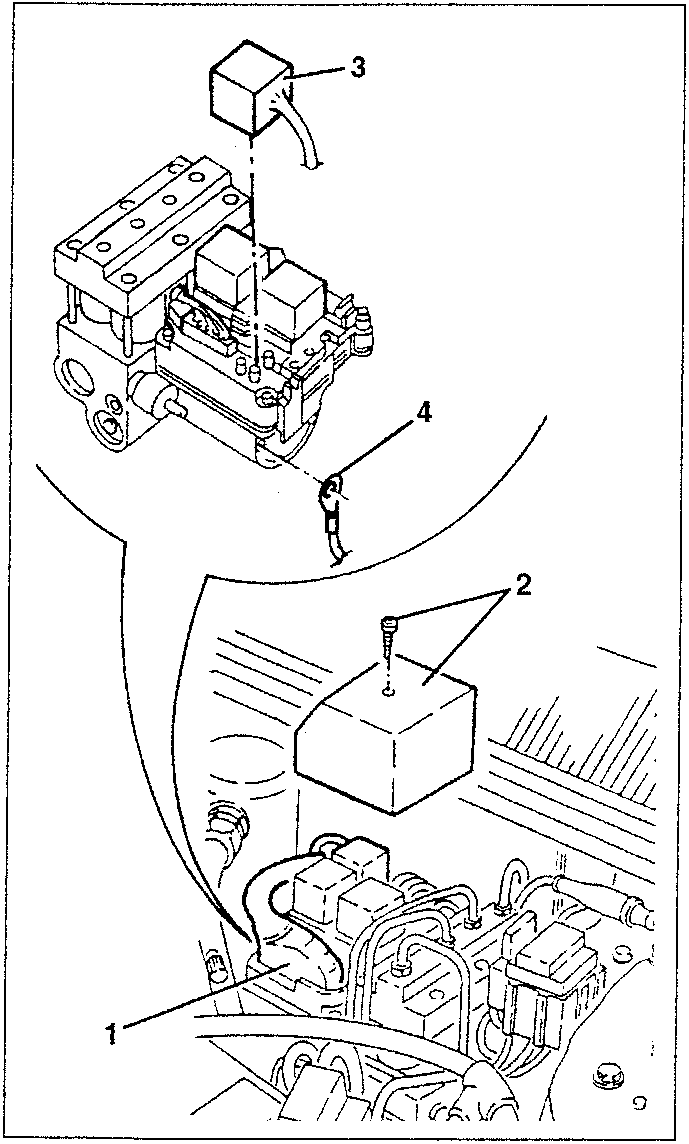

1. Disconnect the connection of the ABS control unit
2. Remove the protective cover.
3. Disconnect the connection of the relays.
4. Disconnect the earth cable.

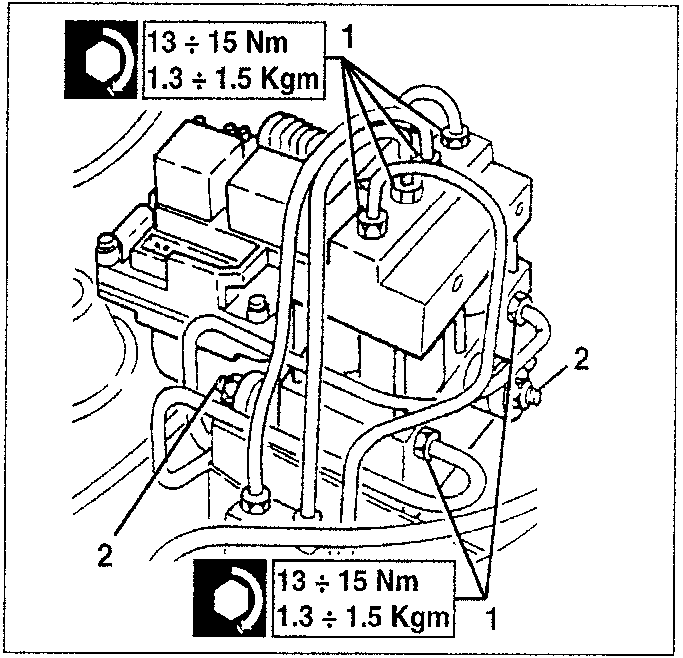

1. Disconnect the four stiff pipes from the valve unit (grey) and the two pipes from the pump (black).
2. Slacken the two screws and remove the unit from the bracket

13 ÷ 15 Nm
1.3 ÷ 1.5 Kgm

13 ÷ 15 Nm
1.3 ÷ 1.5 Kgm

When refitting relieve the air from the braking system (see specific paragraph)

NOTE: For further details about operation and system diagnosis see "GROUP 55 - ELECTRIC SYSTEM DIAGNOSIS". Diagnosis for fault-finding should be carried out using the ALFA ROMEO TESTER.
