Left front active sensor

LEFT FRONT ACTIVE SENSOR

REMOVING / REFITTING

• Remove the wheel.

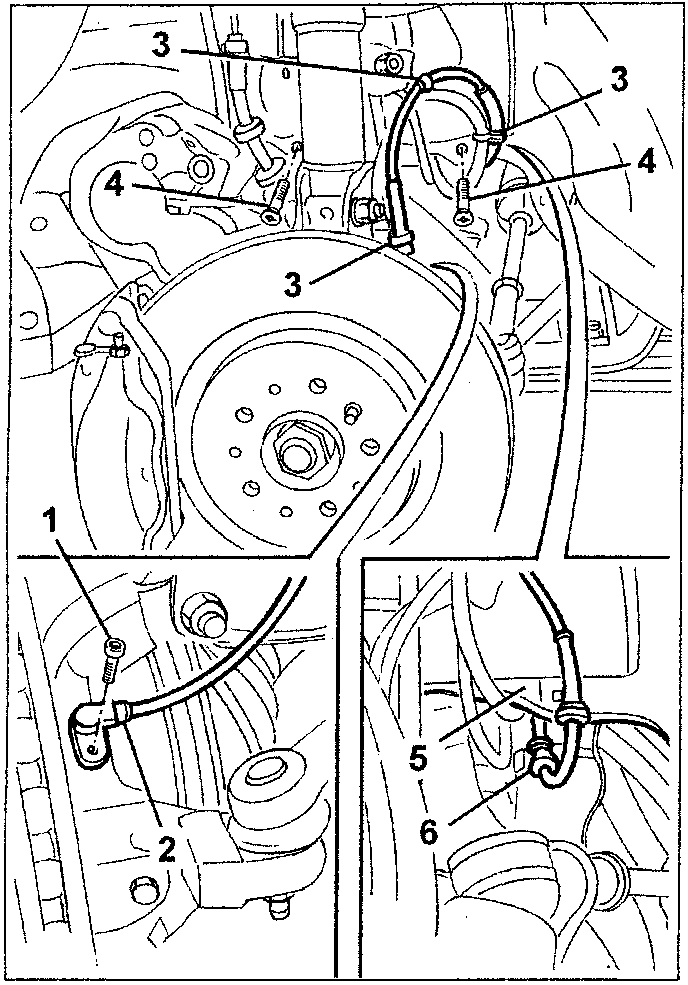

1. Undo the bolt fixing the active sensor.
2. Remove the active sensor from the housing.
3. Disconnect the wiring for the active sensor from the retainers.
4. Undo the bolts
5. Move the protection.
6. Disconnect the wiring for the sensor from the inner retainer.

• Open the bonnet lid.

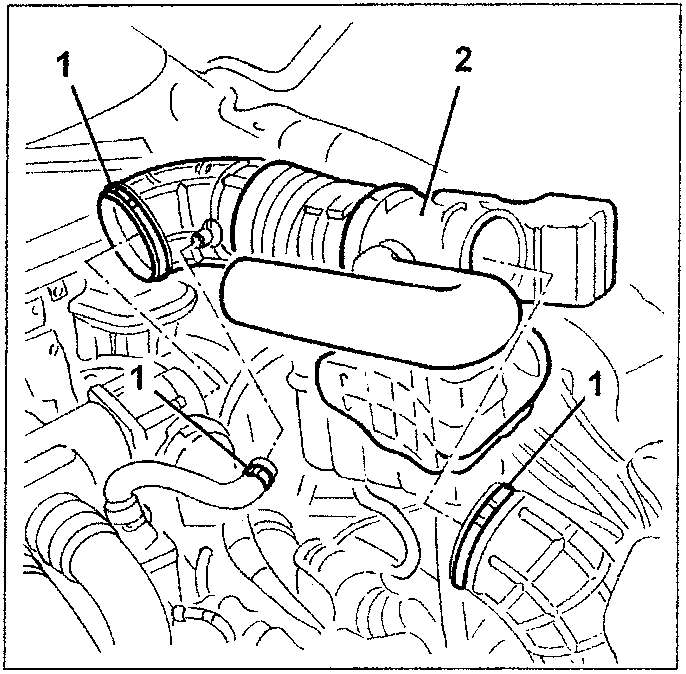

1. Open the retaining bands.
2. Remove the corrugate pipe connecting the chamber with the flow meter, complete with resonator.

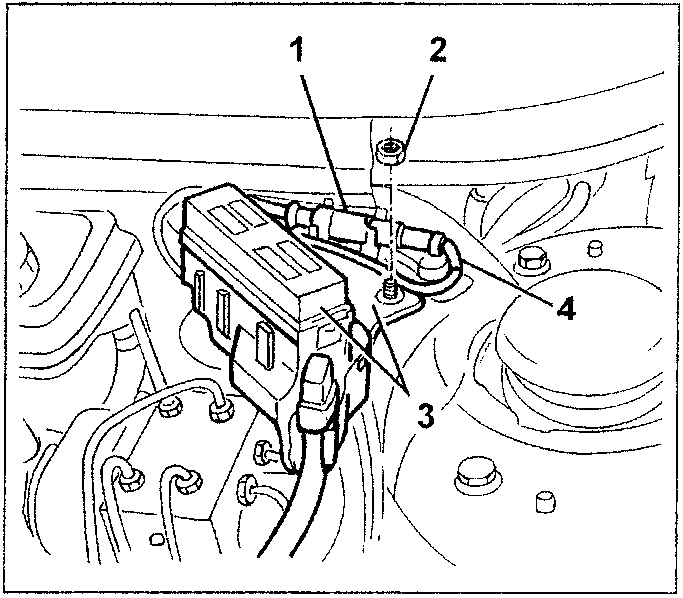

1. Disconnect the electrical connection for the sensor after having released it from the retainers.
2. Undo the nut.
3. Move the support with the fuse carrier.
4. Remove the sensor with the wiring.

Proceed with the refitting, reversing the order of the operations carried out for the removal.
