Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)15 · 70 Bodywork
15 · Body & interior

Operation (page 2 of 2)

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Sunroof
70 BodyworkOperation · page 2 of 2

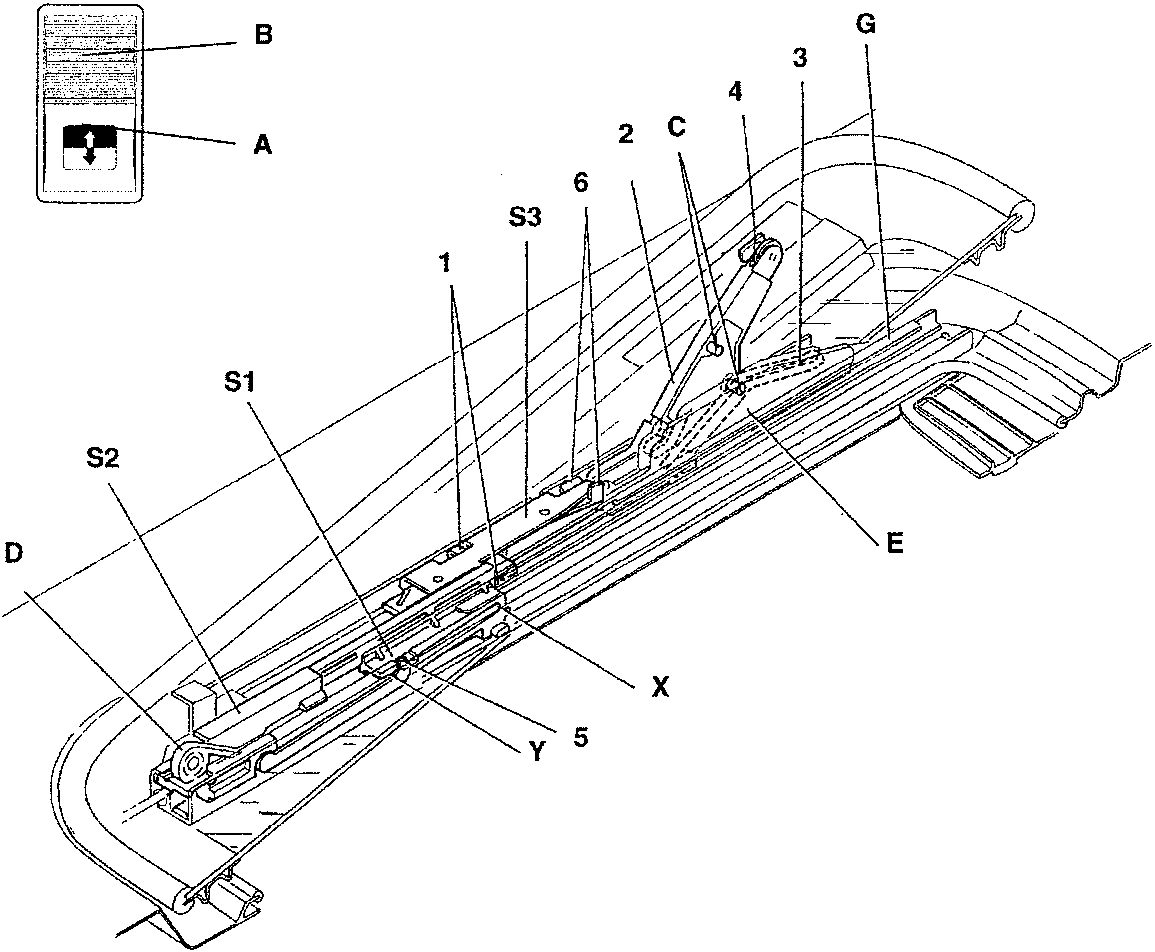

Diagram of sunroof mechanism with labeled parts including pantograph piece, front hinge, fixed cam, fixed guide, runners, rocker pins, and pad.
  1. Pantograph piece
  2. Front hinge
  3. Fixed cam
  4. Fixed guide
  5. Rear inner runner
  6. Front inner runner
  7. Outer runner
  8. Front rocker pin
  9. Pantograph pins
  10. Fixed cam profiles
  11. Pad
  12. Pin
  13. Rear rocker pin

Fig. 7b - Position(b): Roof opened to "compass" position
