Sunroof (page 2 of 2)

The glass is fastened to the movement brackets (4) controlled by the movement of the runners (3) along the guides (5). The flexible racks (1), controlled by the electric motor (2), determine the movement of the runners (3). The resulting coupling between the runners and the movement brackets of the sunroof enable the different phases of sunroof opening and closing, by means of profiles and cams which mesh and cause the movements of the sunroof itself. The sunroof is fitted with an inner blind (6) which is drawn by hand and serves to shade from sunlight.

1. Flexible rack
2. Electric motor
3. Runner
4. Movement brackets
5. Guide
6. Sliding blind

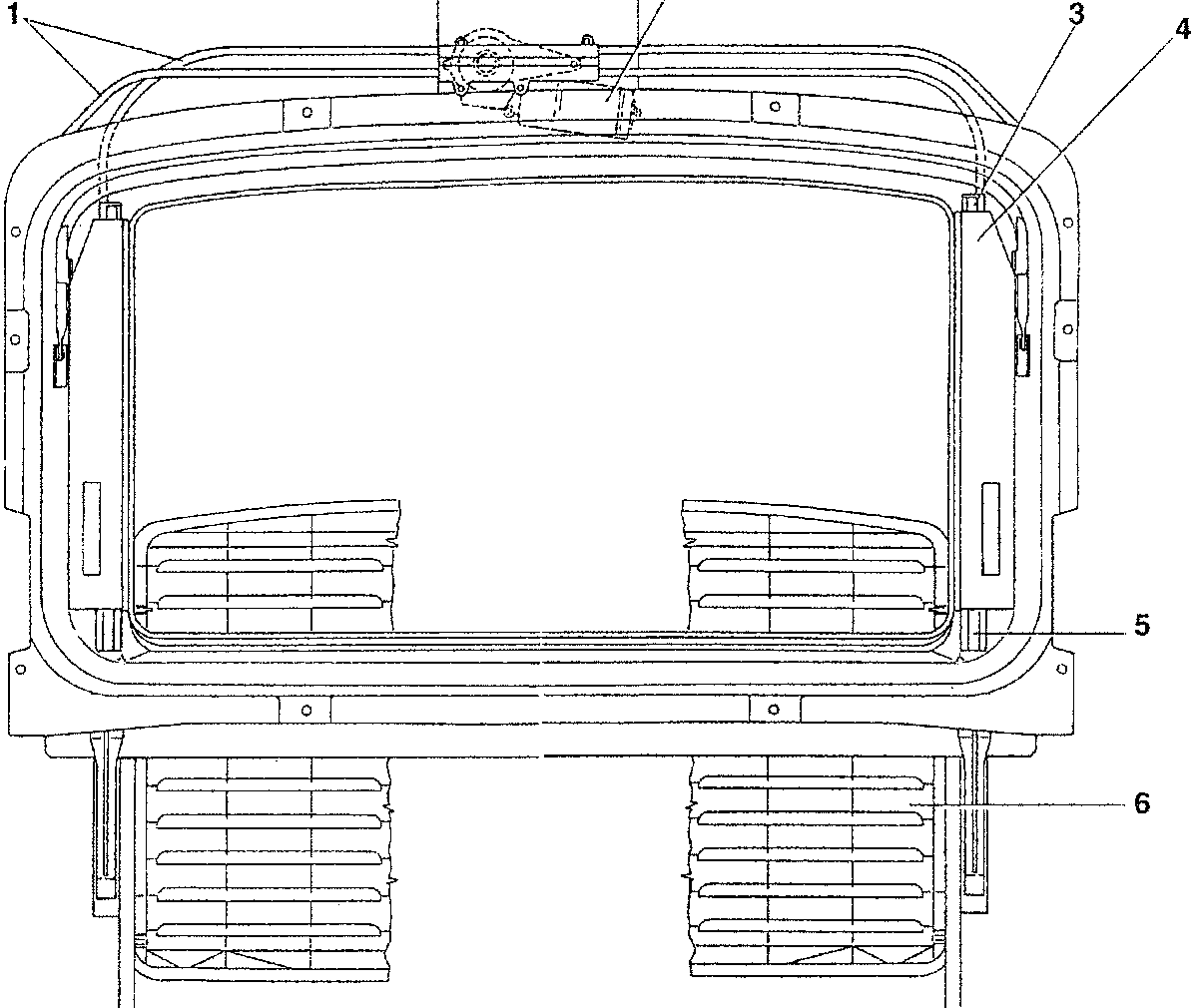

Fig. 3 - Location of main components
