01 Body systemDoor Trim

Door Trim

Removal

  1. Lower the door glass fully.
  2. Disconnect vehicle battery.

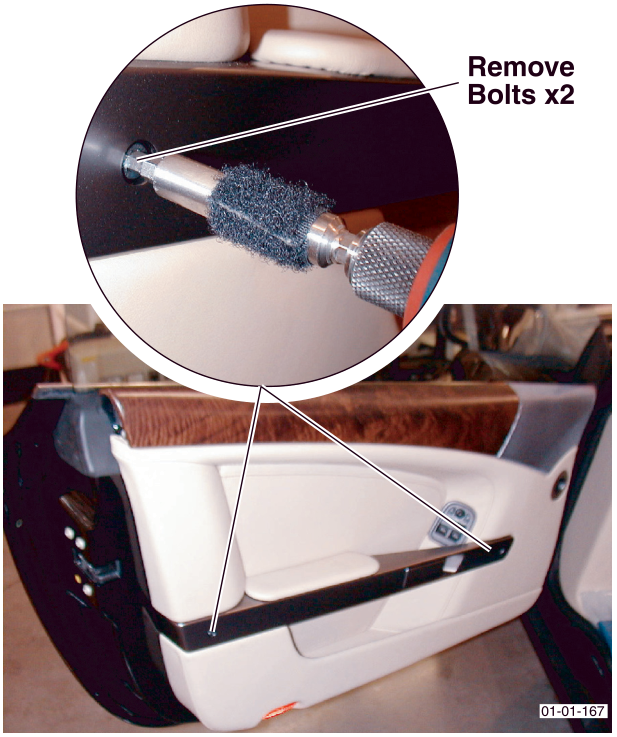

  3. Release the door handle (Bolts x2).
Close-up of a screwdriver removing two bolts from the interior door handle assembly, with an inset showing the bolt locations on the wood trim panel.

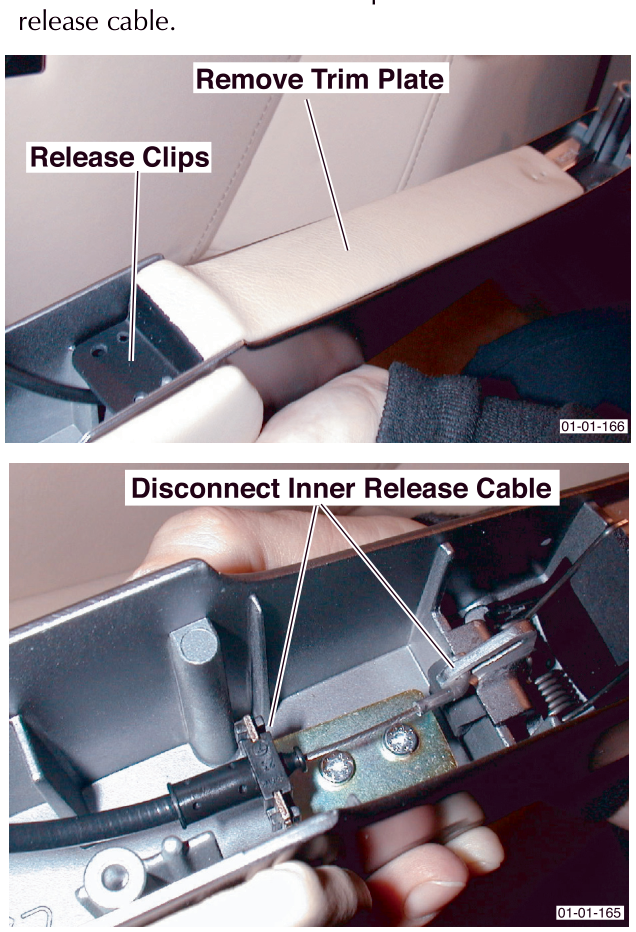

  1. Remove the door handle trim plate and disconnect the release cable.
Two-part image showing release clips being removed from the door handle trim plate, and a hand disconnecting the inner release cable from the mechanism.

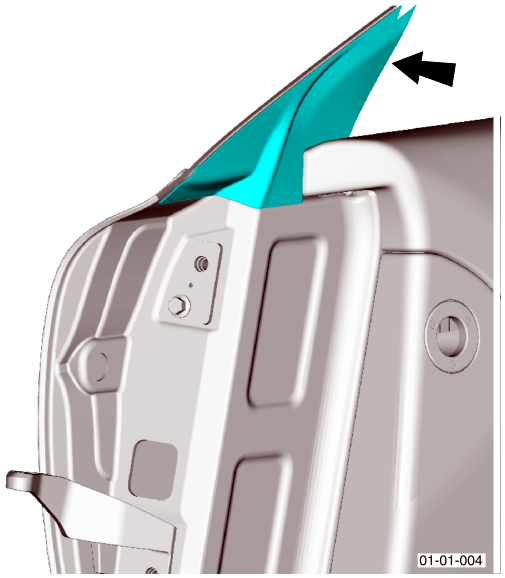

  1. Remove the door mirror cheater panel.
Diagram of the upper door corner showing the mirror cheater panel being pulled away from the body.

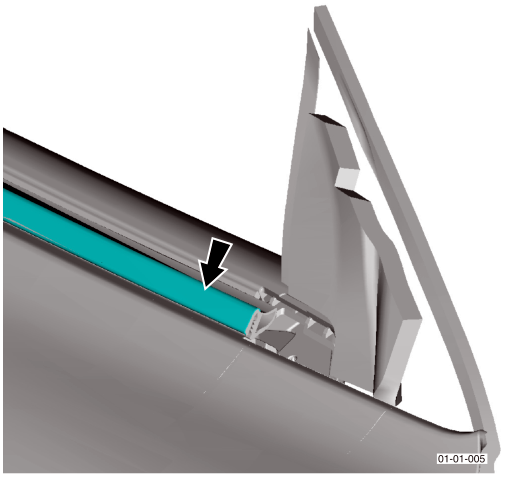

  1. Remove outer chrome waist rail trim.
Diagram showing the outer chrome waist rail trim being detached from the top edge of the door panel.

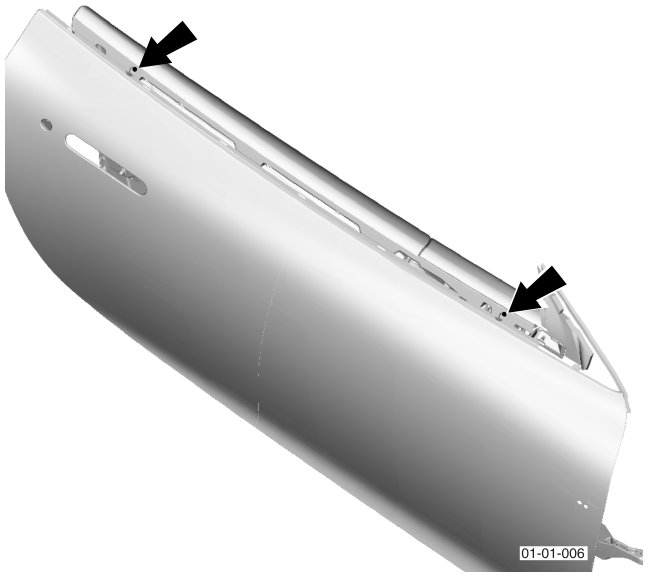

  1. From the outside remove screws (x2).
Diagram of the exterior door panel showing two screws located along the top edge being removed.
