01 Body systemInstall (Coupe)

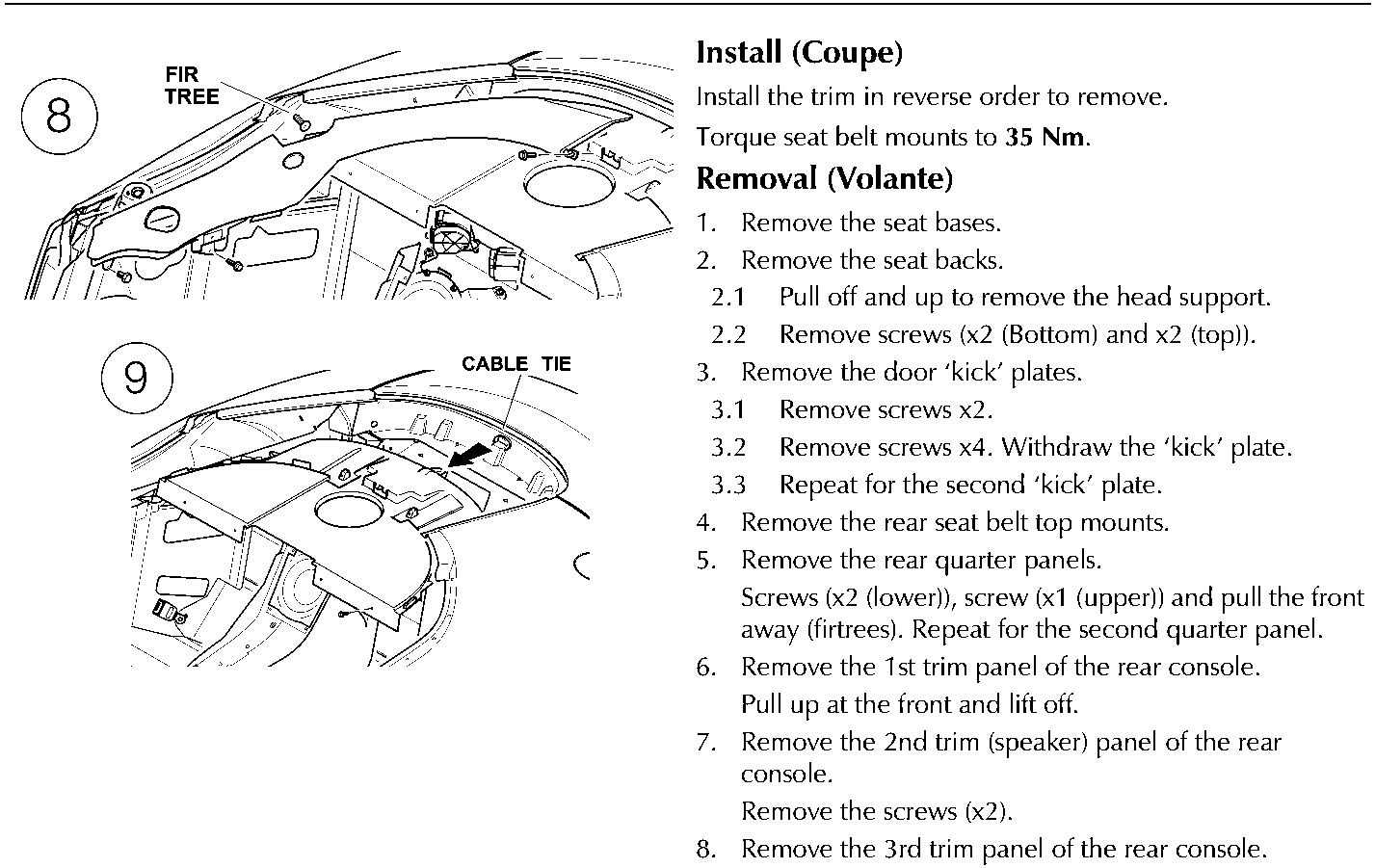

Diagram showing the rear interior trim of a DB 9 Volante, with callout numbers 8 and 9 identifying components labeled FIR TREE and CABLE TIE.

Install (Coupe)

Install the trim in reverse order to remove.

Torque seat belt mounts to 35 Nm.

Removal (Volante)

  1. Remove the seat bases.
  2. Remove the seat backs.
    1. Pull off and up to remove the head support.
    2. Remove screws (x2 (Bottom) and x2 (top)).
  3. Remove the door ‘kick’ plates.
    1. Remove screws x2.
    2. Remove screws x4. Withdraw the ‘kick’ plate.
    3. Repeat for the second ‘kick’ plate.
  4. Remove the rear seat belt top mounts.
  5. Remove the rear quarter panels.

Screws (x2 (lower)), screw (x1 (upper)) and pull the front away (firtrees). Repeat for the second quarter panel.

  1. Remove the 1st trim panel of the rear console.

Pull up at the front and lift off.

  1. Remove the 2nd trim (speaker) panel of the rear console.

Remove the screws (x2).

  1. Remove the 3rd trim panel of the rear console.

Remove the screws (x2) from the bottom and screws (x2) from the rear of the ROPS closure panel.

  1. Remove the rear center console.

Install (Volante)

  1. Install the rear center console.
  2. Install the center console trim panels.
  3. Install the rear quarter panels.
  4. Install the door ‘kick’ plates.
  5. Install the seat belt top mounts. Torque to 35 Nm.
  6. Install the seat backs and bases.
