01 Body systemRemoval · page 1 of 2
Removal

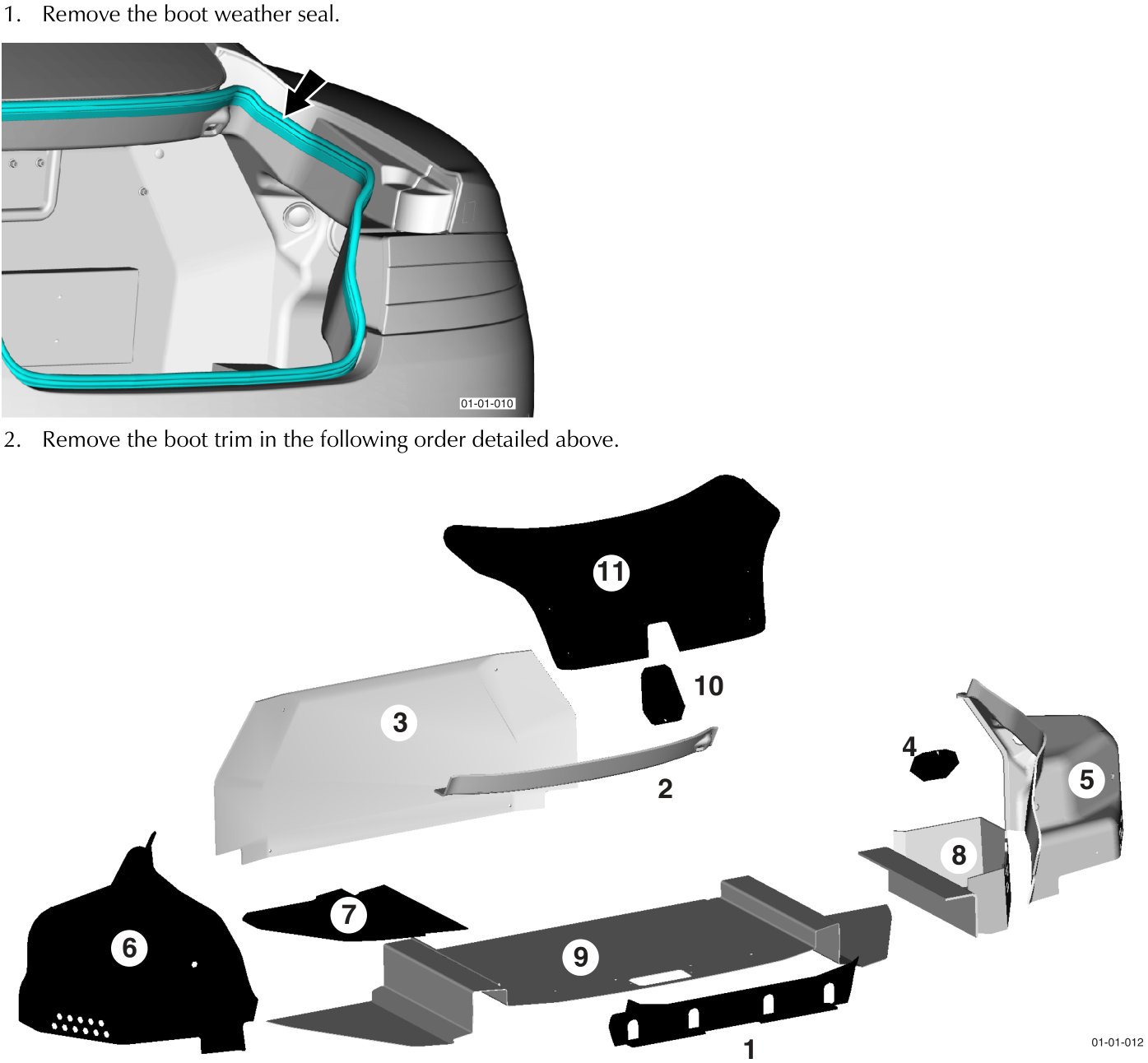

F1 Remove the boot weather seal.
- Remove the boot trim in the following order detailed above.
| Item | Fixings | Item | Fixings |
|---|---|---|---|
| 1. | Fir trees | 6. | Fir trees |
| 2. | Fir trees | 7. | Fir trees |
| 3. | Fir trees | 8. | Fir trees |
| 4. | Fir trees | 9. | Fir trees |
| 5. | Fir trees | 10. | Fir trees |
| 11. | Fir trees |
Installation
The rear trim is best installed in reverse order of the removal procedure.
