02 Frame and mounting7.1
  1. Remove the silencer assembly.
  2. Automatic Gearbox Only.
    Remove the gearbox coolant pipes.

7.1

Remove the coolant thermostat from it’s mounting bracket.

7.2

Disconnect the coolant pipes from the gearbox.

7.3

Cap the pipes open ends.

Gearbox ends are self sealing.

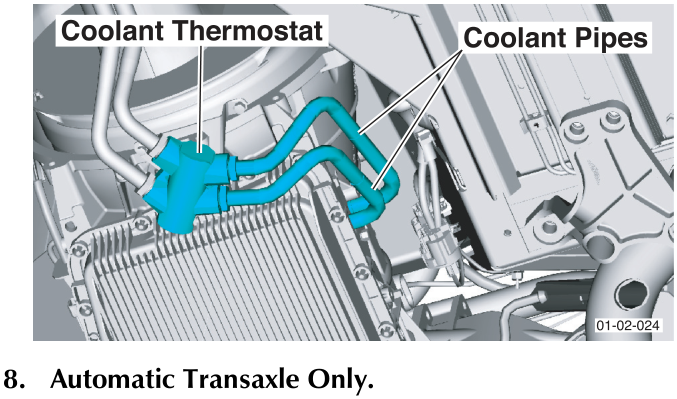

Coolant Thermostat and Coolant Pipes connected to the radiator assembly

8.

Automatic Transaxle Only.
Disconnect the following from the transaxle:

  • Wiring harness plugs

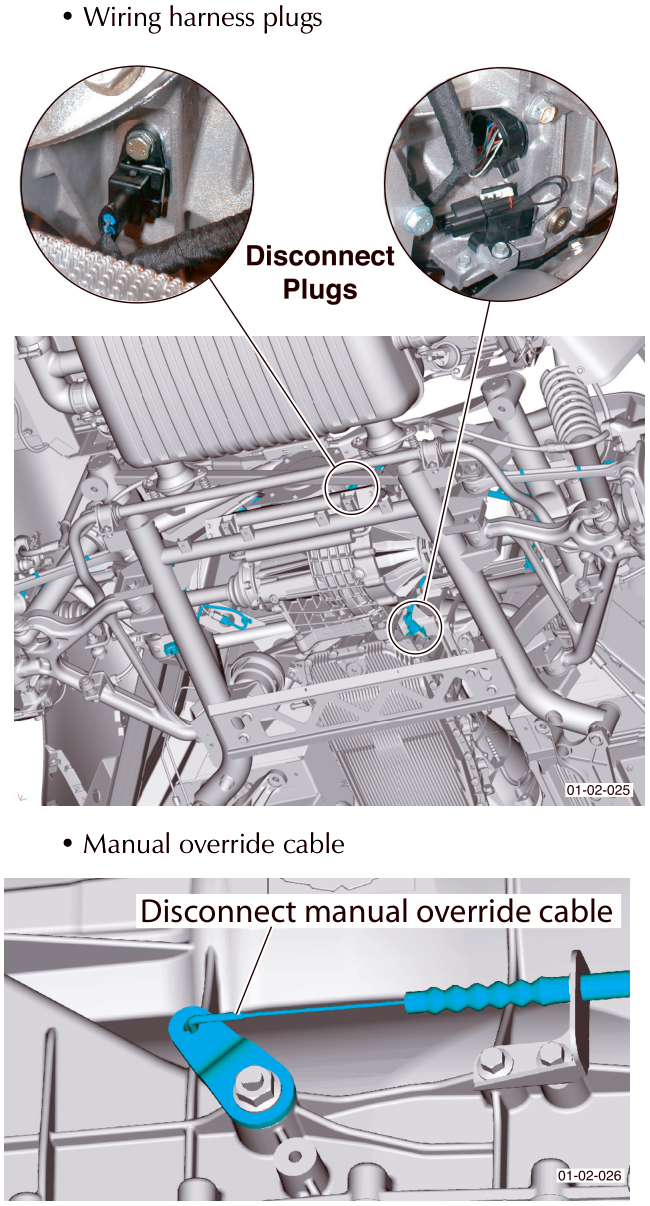

Disconnect Plugs on wiring harness and Disconnect manual override cable on automatic transaxle
  • Manual override cable

9.

Manual Transaxle Only.
Disconnect the wiring harness plug.

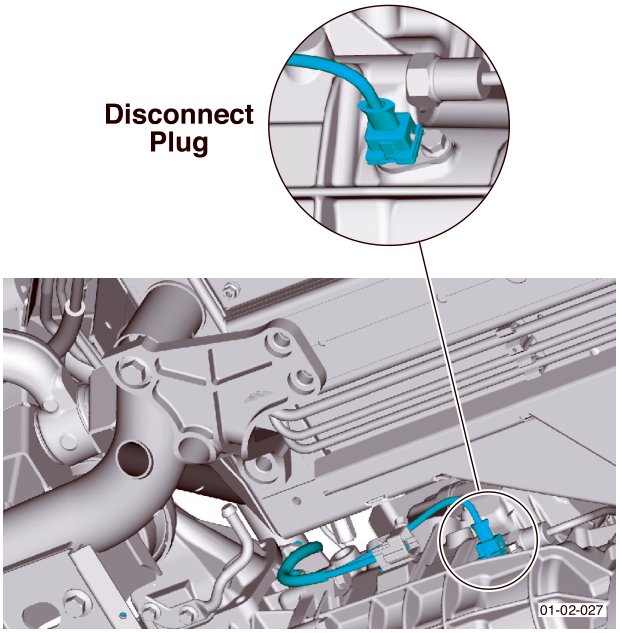

Disconnect Plug on manual transaxle wiring harness
  1. Remove accessible bolts from around the torque tube.
    Do not remove the lower bolts (x2) facing towards the gearbox.

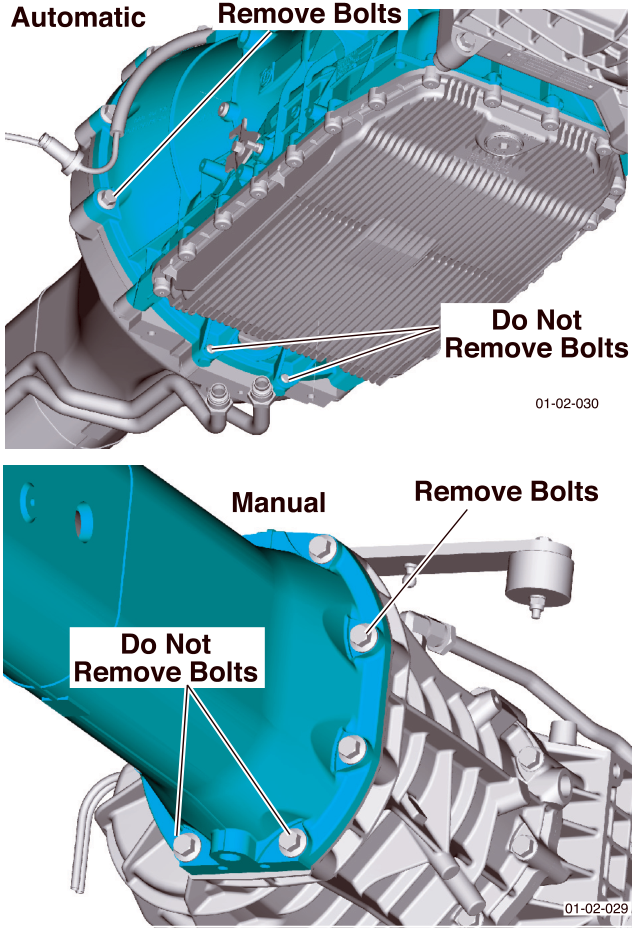

Automatic and Manual torque tube bolt locations showing where to Remove Bolts and Do Not Remove Bolts
