11. Automatic Transaxle Only.

11. Automatic Transaxle Only.

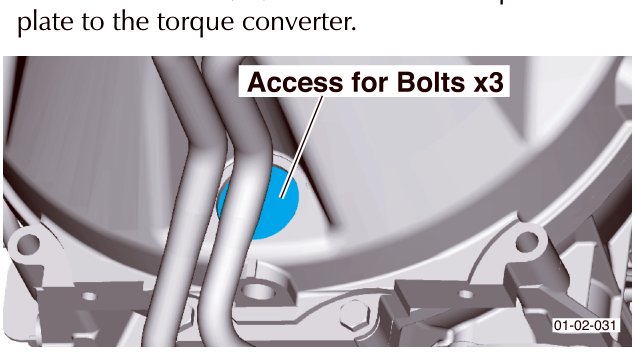

Remove the bolts (x3) that secure the torque tube drive plate to the torque converter.

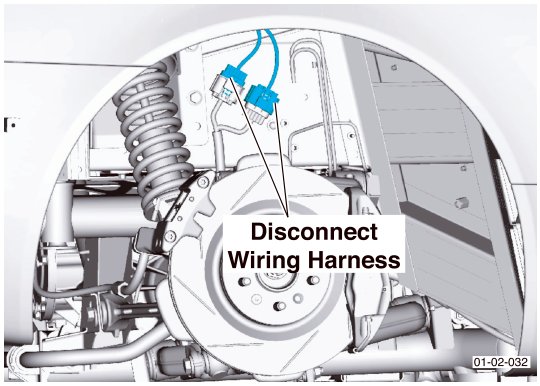

12. Disconnect the subframe wiring harness.

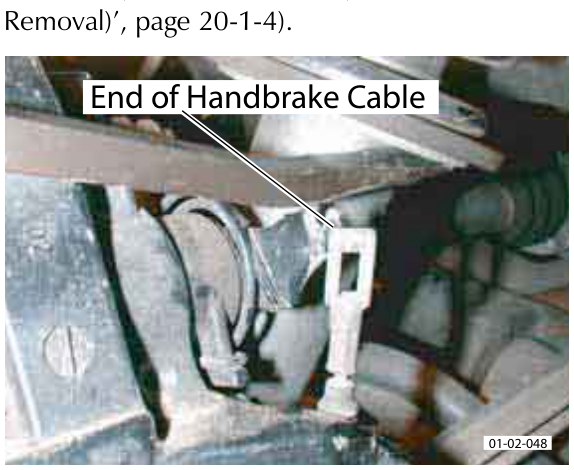

13. Disconnect the handbrake cable from the calipers and subframe (Refer to '206-103 (Handbrake Cable Removal)', page 20-1-4).

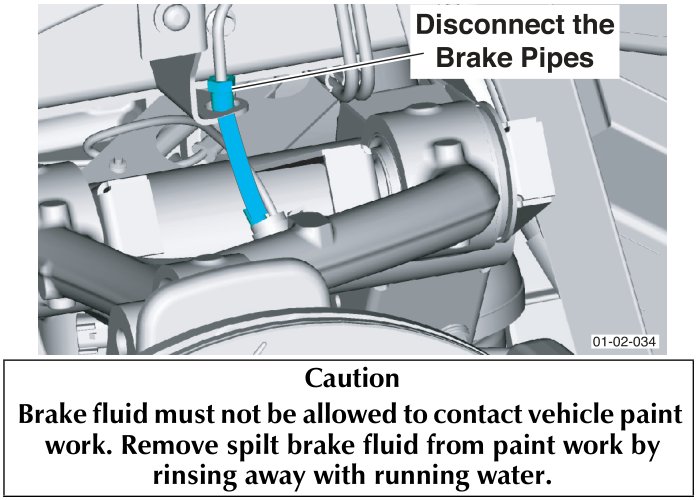

14. Disconnect the brake pipes.

Caution
Brake fluid must not be allowed to contact vehicle paint work. Remove spilt brake fluid from paint work by rinsing away with running water.

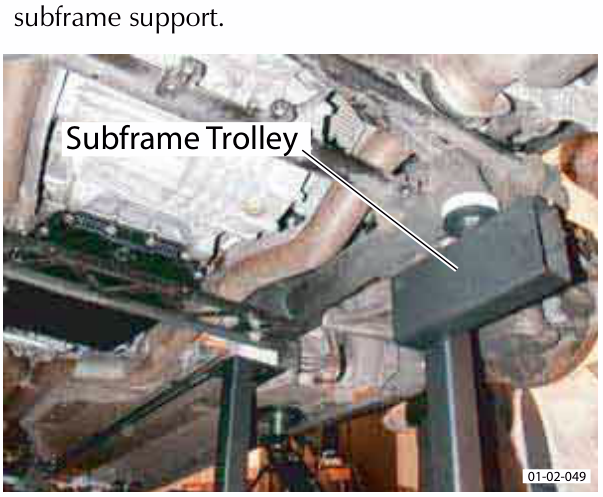

15. Position the subframe trolley (Refer to '303-F715 (Multi-purpose Trolley) x2', page 20-1-5) under the subframe. Lower the vehicle until the subframe rests on the subframe support.

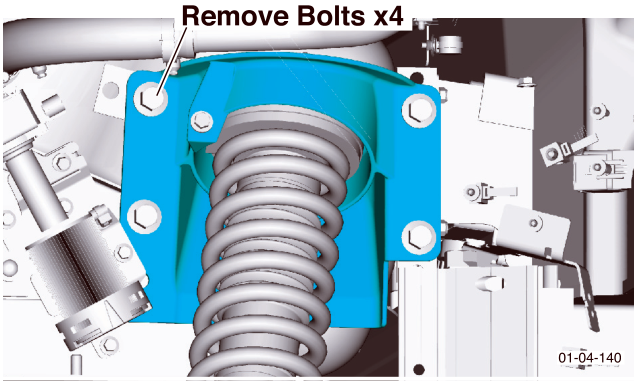

16. Remove bolts (x4) that secure the spring and damper units.

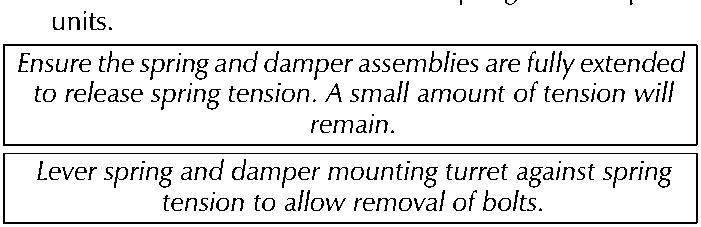

Ensure the spring and damper assemblies are fully extended to release spring tension. A small amount of tension will remain.

Lever spring and damper mounting turret against spring tension to allow removal of bolts.
