21. Automatic Gearbox Only.
    Install a torque converter transit bracket.

Transit Bracket image

22. Retain the spacers from each rear subframe mounting pad. These should be installed in the same positions when the subframe is installed.
23. If required, remove the transaxle from the subframe (Refer to 'Transmission (07.00)', page 7-1-1)

Installation

1. If removed, install the transaxle.
   • Automatic (Refer to 'Automatic Transaxle (07.01)', page 7-1-2)
   • Manual (Refer to 'Manual Transmission (07.03)', page 7-3-1).
2. Ensure the spacers from each rear subframe mounting pad are located correctly.

F1 Lower the vehicle to the subframe.
Ensure the vehicle lowers without catching pipes, cables, etc.

Ensure the suspension assembly is placed slightly to the rear of the final position. This will enable installation to the torque tube.

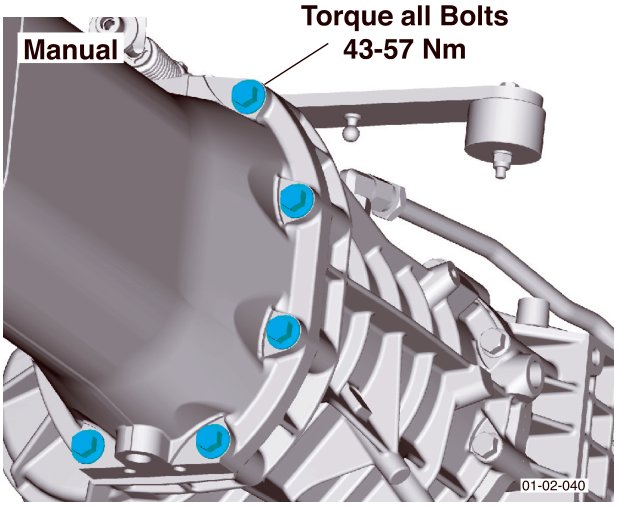

4. Manual Gearbox Only.
   Install the gearbox to the torque tube.
   1. Lower the vehicle to enable the gearbox to line up with the propshaft splines.
   2. Move the subframe forward. Engage the gearbox to the propshaft splines.
   3. Install the bolts around the torque tube. Torque to 43-57 Nm.

5. Manual Gearbox Only.
   Install the gear selector cables.

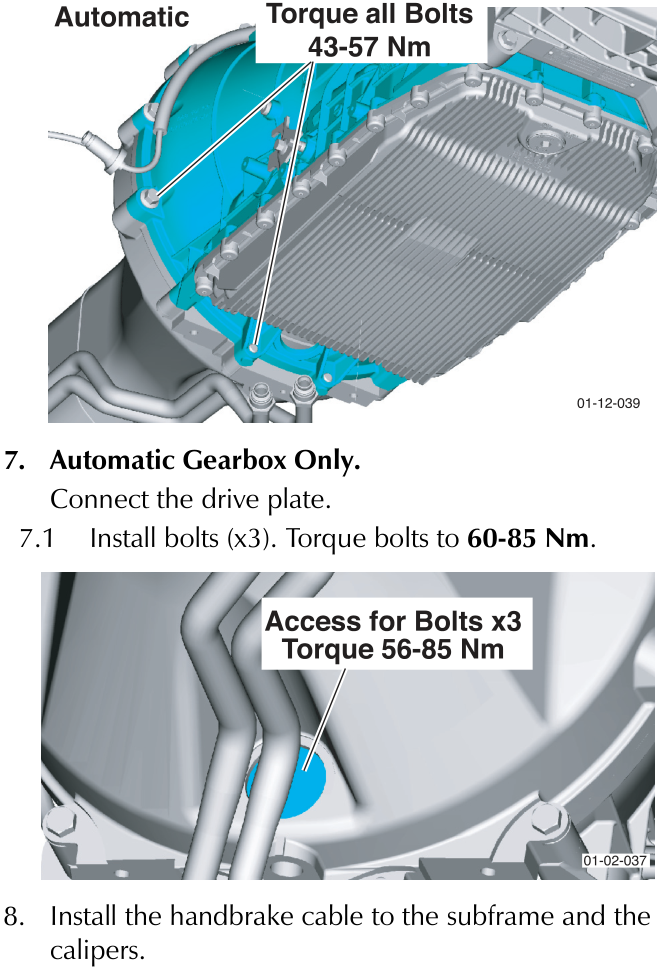

6. Automatic Gearbox Only.
   Install the gearbox to the torque tube.
   1. Remove the torque converter transit bracket.
   2. Move the subframe forward. Place the torque converter to the torque tube drive plate.
   3. Install the bolts around the torque tube. Torque to 43-57 Nm.

7. Automatic Gearbox Only.
   Connect the drive plate.
   1. Install bolts (x3). Torque bolts to 60-85 Nm.

8. Install the handbrake cable to the subframe and the calipers.
