9. Install the spring and damper units.

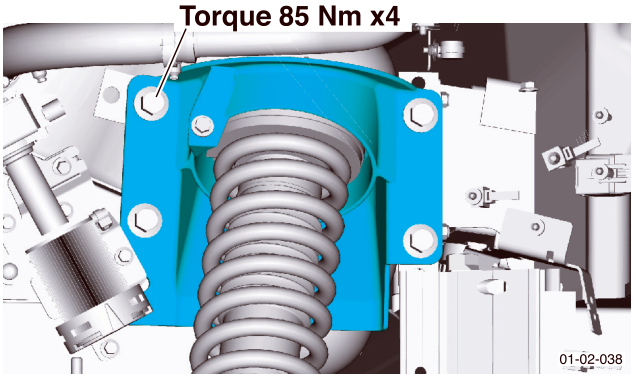

9.1 Lower the vehicle to line up the spring and damper mounts to the body.

9.2 Install bolts (x4) to each mount. Torque to 85 Nm.

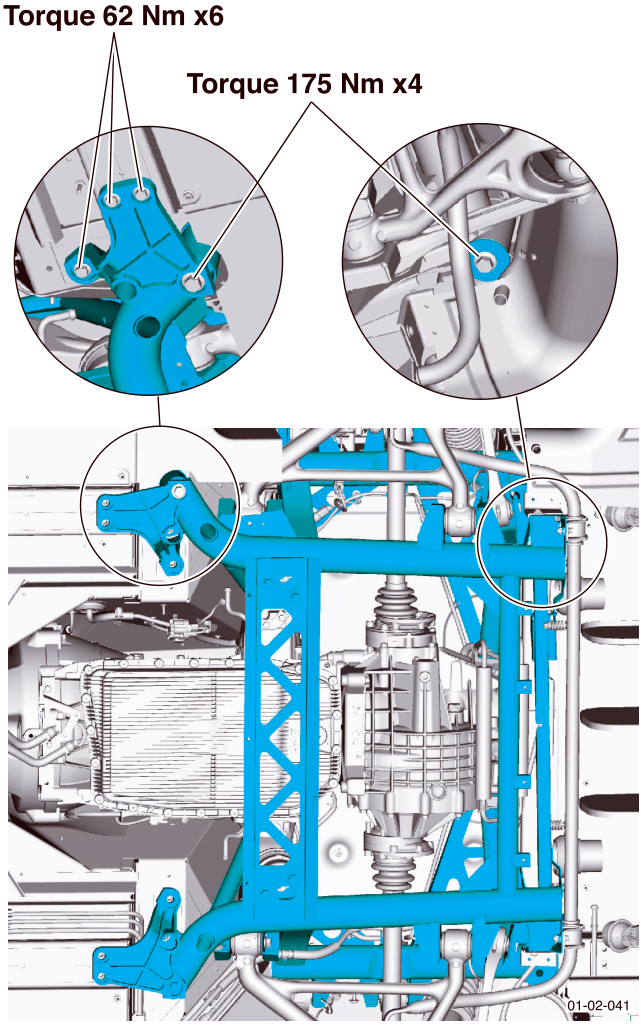

10. Lower the vehicle to meet the subframe mounts. Install bolts (x4) that secure the subframe to the body. Torque bolts to 175 Nm.

If the anti-roll bar was removed ensure the two rear bolts are installed.

11. Install the subframe reinforcement plates. Torque bolts to 62 Nm.
12. Connect the subframe wiring harness plugs.

13. Automatic Gearbox Only.

Install to the gearbox:

• Manual override cable
• Coolant pipes
• Wiring harness plugs
• Breather pipe

14. Manual Gearbox Only.

Install the wiring harness plugs.

Caution
Brake fluid must not be allowed to contact vehicle paint work. Remove spilt brake fluid from paint work by rinsing away with running water.

15. Connect the brakes pipes.
16. Install the exhaust system.
17. Install the front and rear undertrays and the shear plate.
18. Bleed the brakes. (Refer to 'Brake Bleeding - WDS', page 6-4-4).
19. Install the road wheel arch liners.

The fuel filler drain off pipe is attaches to the arch liner.

20. Install the road wheels (Refer to 'Road Wheel Nut Torque Tightening', page 4-5-7).
21. Remove the vehicle securing strap, if installed.
22. Connect vehicle battery.
