Minimum Block Diameter

		A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R	S	T	U	V	W	X
		.401	.402	.403	.404	.405	.406	.407	.408	.409	.410	.411	.412	.413	.414	.415	.416	.417	.418	.419	.420	.421	.422	.423	.424
Max Crankshaft Diameter	X	67.504	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	2	2	2	2	2	2	2
	W	67.503	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	2	2	2	2	2	2	2	2
	V	67.502	1	1	1	1	1	1	1	1	1	1	1	1	1	1	2	2	2	2	2	2	2	2	2	2
	U	67.501	1	1	1	1	1	1	1	1	1	1	1	1	2	2	2	2	2	2	2	2	2	2	2	2
	T	67.500	1	1	1	1	1	1	1	1	1	1	1	2	2	2	2	2	2	2	2	2	2	2	2	2
	S	67.499	1	1	1	1	1	1	1	1	1	1	2	2	2	2	2	2	2	2	2	2	2	2	2	2
	R	67.498	1	1	1	1	1	1	1	1	1	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2
	Q	67.497	1	1	1	1	1	1	1	1	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	3
	P	67.496	1	1	1	1	1	1	1	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	3	3
	O	67.495	1	1	1	1	1	1	2	2	2	2	2	2	2	2	2	2	2	2	2	3	3	3	3	3
	N	67.494	1	1	1	1	1	2	2	2	2	2	2	2	2	2	2	2	3	3	3	3	3	3	3	3
	M	67.493	1	1	1	1	2	2	2	2	2	2	2	2	2	2	3	3	3	3	3	3	3	3	3	3
	L	67.492	1	1	1	2	2	2	2	2	2	2	2	2	3	3	3	3	3	3	3	3	3	3	3	3
	K	67.491	1	1	2	2	2	2	2	2	2	2	3	3	3	3	3	3	3	3	3	3	3

Bearing Grade 1 = Orange
Bearing Grade 2 = Blue
Bearing Grade 3 = Green

The bearing grade is stamped, in ink, on the inside of the bearing.

Maintenance

Crankshaft

Repair Operation Time (ROT)
Item	Code
Crankshaft Renew	TBA

Removal

1. Remove the engine from the vehicle (Refer to 'Engine', page 3-1-4).
2. Remove the cylinder heads (Refer to 'Cylinder Heads', page 3-2-2).
3. Remove the sump (Refer to 'Sump', page 3-3-3).

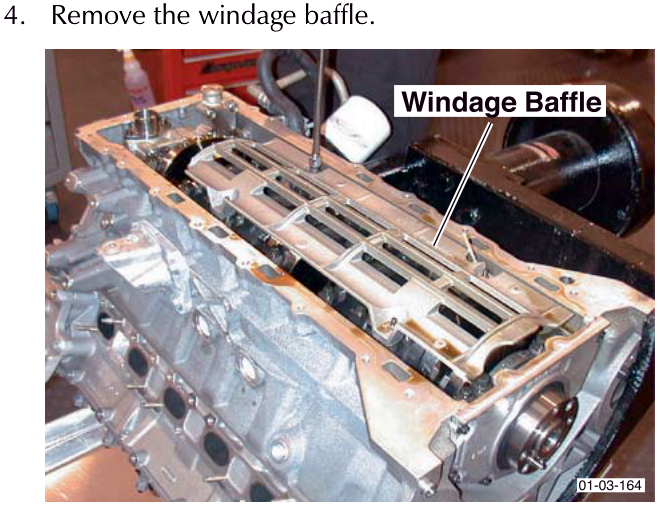

Remove the windage baffle.
