9. Using suitable lifting equipment, i.e. hydraulic jack and sling, support the transaxle and remove the bolts (x8 (4 each side)) that secure the transaxle to the mounts (x2). Discard the bolts.

Image to Follow

10. Lower the transaxle, using the lifting equipment, and disconnect the gear selector cables.

Use the service tool (Refer to '501-F116 (IP Removal)', page 20-1-8) to remove the horseshoe clips (x2) and lever the cables from the ball joints.

Caution
Ensure that the service tool No. TBA is used. There is a risk of bending the end of the cable. Lever cable from ball joint at a point closest to the ball joint.

Image to Follow

11. Disconnect the torque tube from the gearbox.
12. Ensure the torque tube is supported.

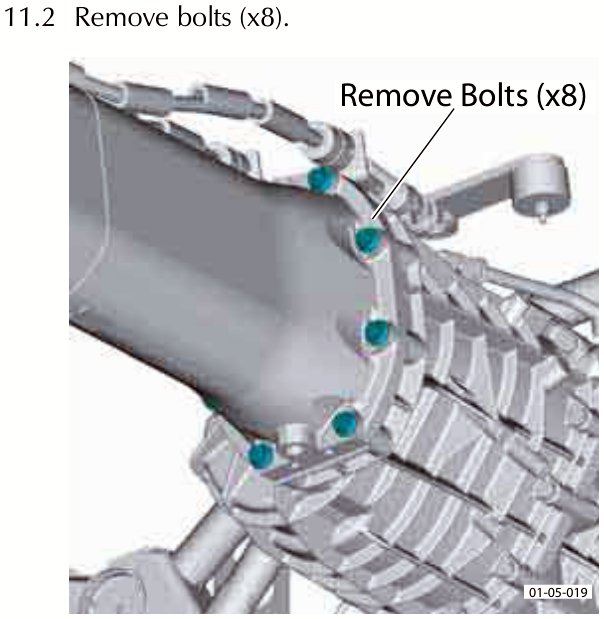

13. Remove bolts (x8).

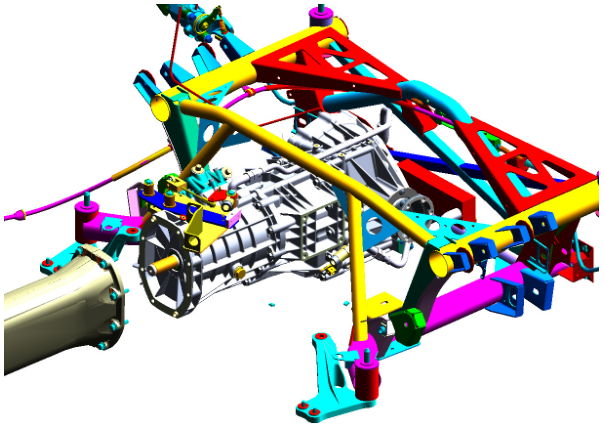

12. Withdraw the transaxle rearwards and manoeuvre transaxle out from rear subframe.

Installation

1. Using suitable lifting equipment, i.e. hydraulic jack and sling, place the transaxle up in the subframe.

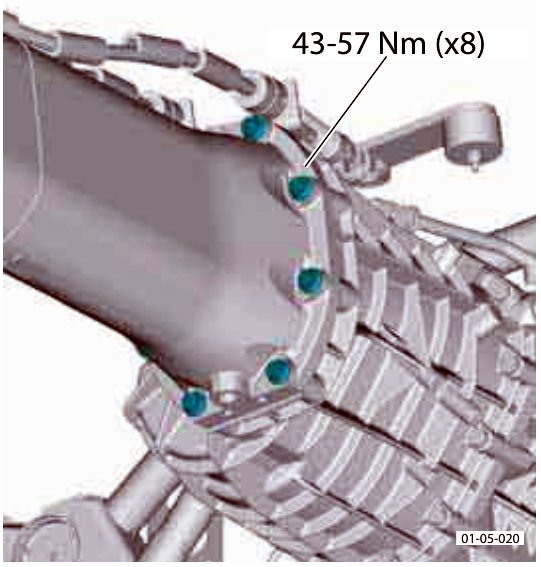

2. Manoeuvre the transaxle to up to the torque tube. Install bolts (x8). Torque to 43-57 Nm.

3. Connect the gear selector cables.
