Aston Martin DB9 Factory Workshop Manual (Issue 2, 2005)08 · 07 Transmission
08 · Transmission

Removal

Make
Aston Martin
Model
DB9 Factory Workshop Manual
Year
Issue 2, 2005
Section
Manual Transmission › Removal
07 TransmissionRemoval
Repair Operation Time (ROT)
ItemCode
Manual Transaxle RenewTBA

Removal

  1. Raise vehicle and make safe.

Caution
On a two post ramp ensure vehicle is ‘strapped’ to the lift.

  1. Remove both rear road wheels.
  2. Remove the silencer and rear LH and RH exhaust pipes.
  3. Remove the subframe brace.

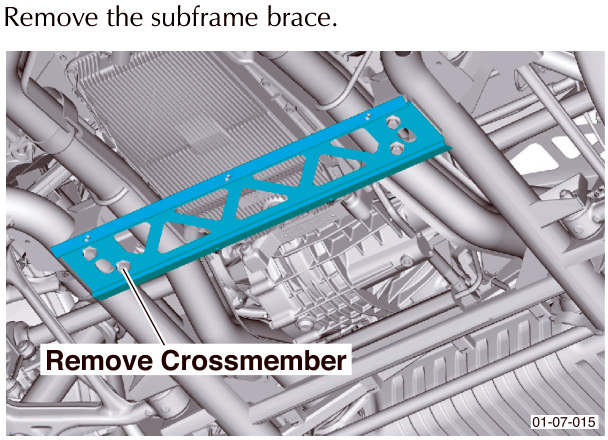

View of the subframe crossmember being removed from under the vehicle chassis
  1. Remove the halfshafts from the differential.
  2. Remove bolts (x6) and washer tabs (x3). Discard the bolts.
  3. Withdraw the halfshafts from final drive.

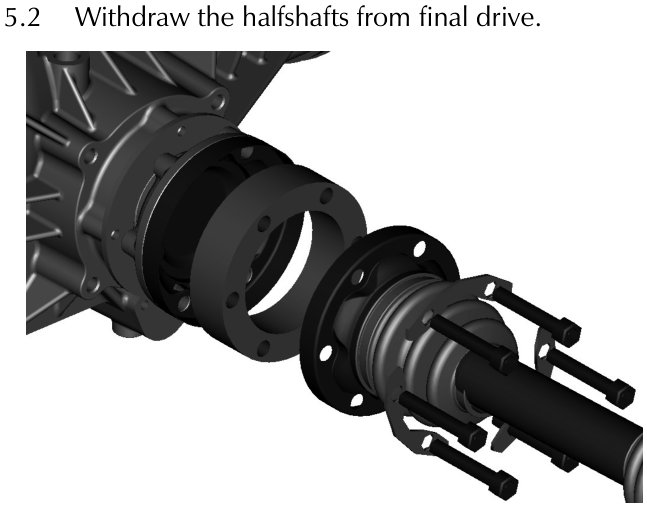

Halfshaft assembly withdrawn from the final drive differential housing
  1. Disconnect the wiring harness plugs.

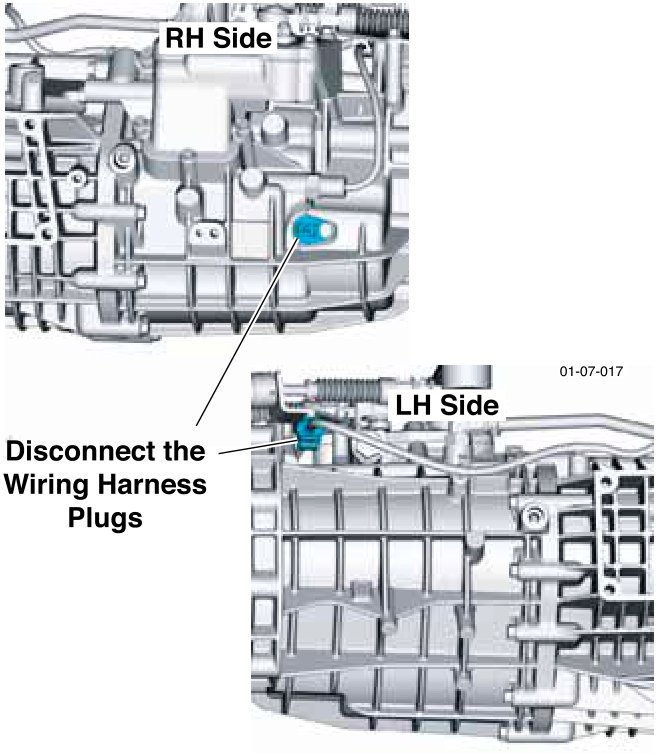

Wiring harness connectors on the RH and LH sides of the transaxle unit

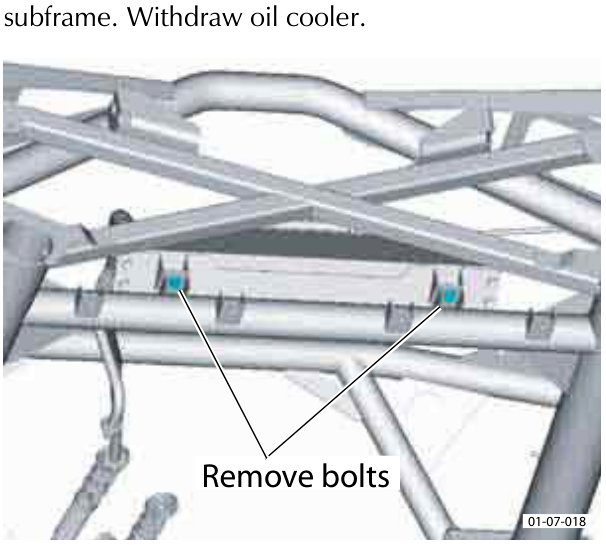

  1. Remove the bolts that secure the oil cooler to the subframe. Withdraw oil cooler.
Bolts securing the oil cooler to the subframe structure
  1. Disconnect the breather pipe from the transaxle.

The breather pipe should remain in position on the vehicle to avoid being incorrectly route on install.
