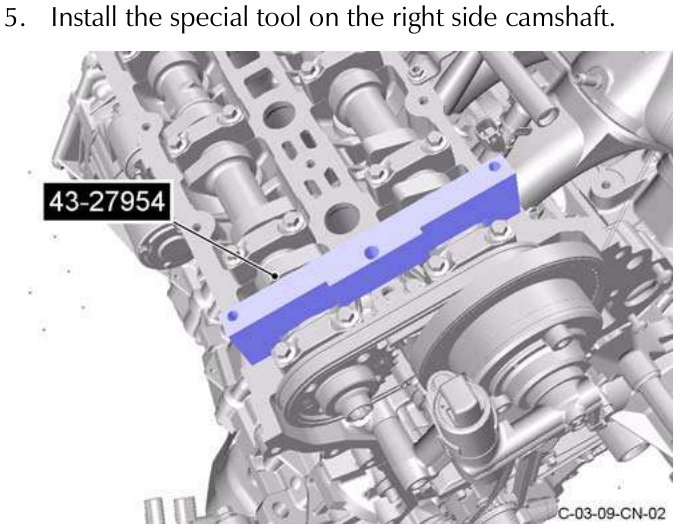

Install the special tool on the right side camshaft.

Special tool installed on right side camshaft, part number 43-27954

Figure 4

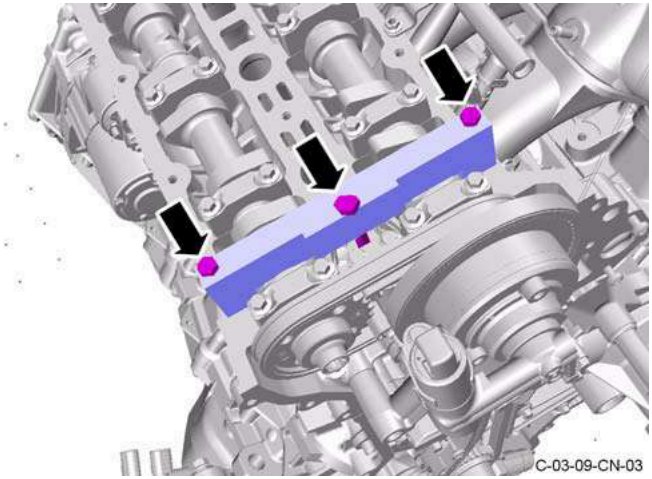

  1. Install and tighten the three screws that attach the special tool to the cylinder head.
Three screws attaching special tool to cylinder head, part number 43-27954

Figure 5

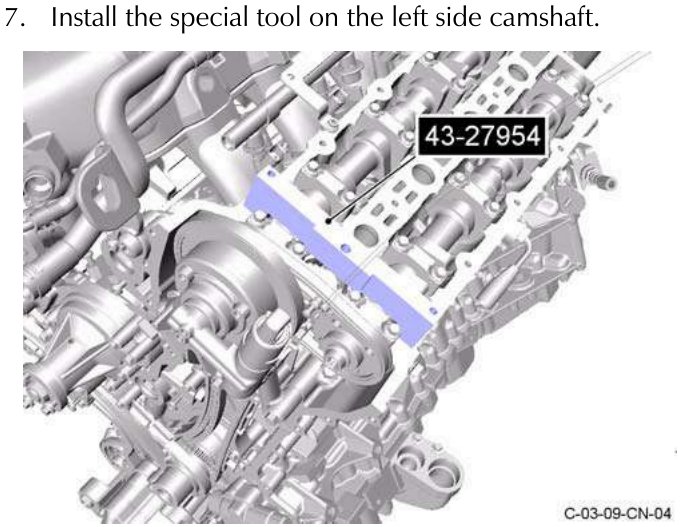

F3 Install the special tool on the left side camshaft.

Special tool installed on left side camshaft, part number 43-27954

Figure 6

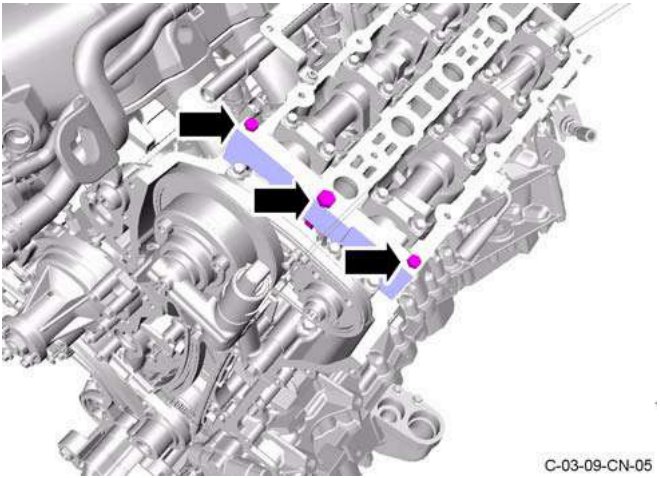

  1. Install and tighten the three screws that attach the special tool to the cylinder head.
Three screws attaching special tool to cylinder head, part number 43-27954

Figure 7

  1. Use the applicable equipment to lift the vehicle and make it safe.

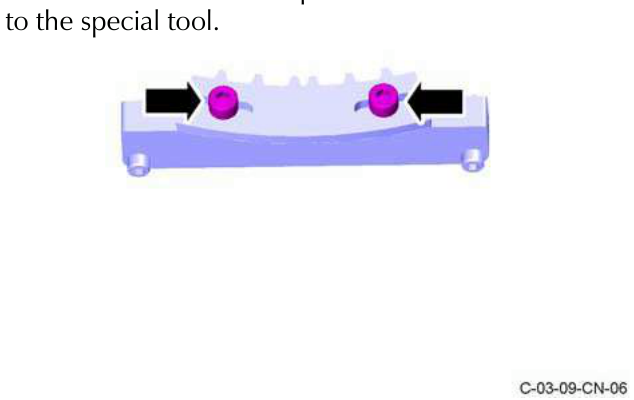

  2. Loosen the two socket cap screws that attach the teeth to the special tool.
Two socket cap screws on special tool

Figure 8

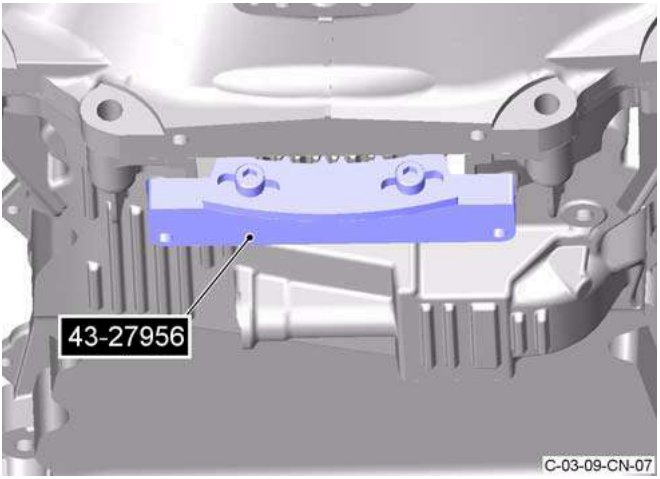

  1. Install the special tool onto the flywheel.
Special tool installed on flywheel, part number 43-27956

Figure 9
