Aston Martin V8 Vantage Factory Workshop Manual (2005-2010)04 · 03 Engine
04 · Engine

Valve Train: Specifications (page 7 of 7)

Make
Aston Martin
Model
V8 Vantage Factory Workshop Manual
Year
2005–2010
Section
Valve Train
03 EngineSpecifications · page 7 of 7
  1. Remove the special tool from the flywheel.

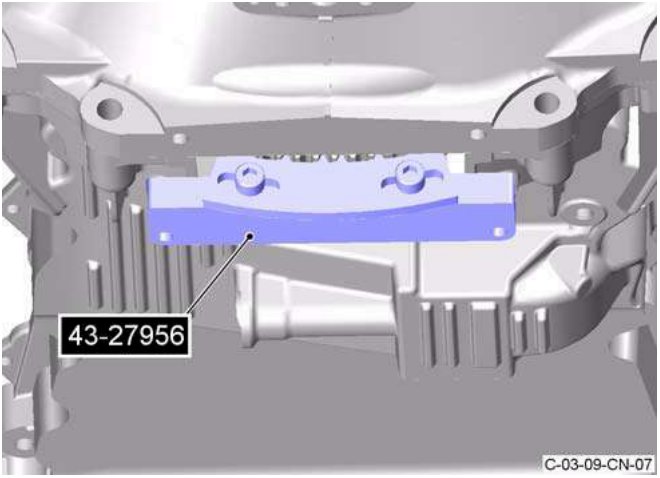

    2. Special tool removed from flywheel, part number 43-27956 shown

    Figure 31

  2. Lower the vehicle.
  3. Remove the three screws that attach the special tool to the cylinder head.

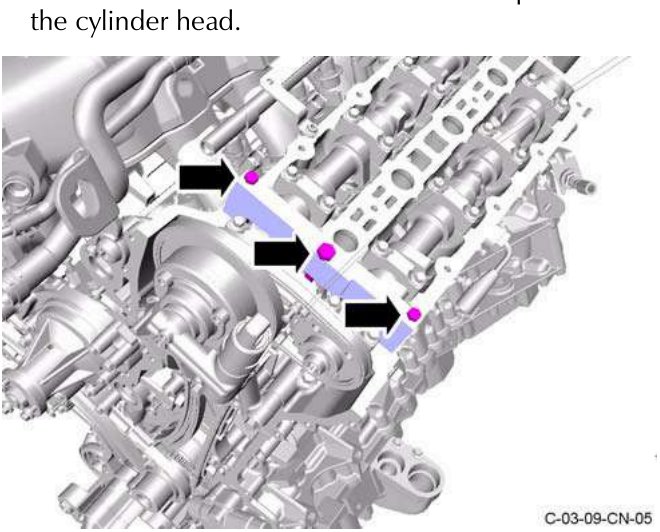

    4. Three screws removed from cylinder head, part number 43-27956 shown

    Figure 32

  4. Remove the special tool from the left side camshaft.

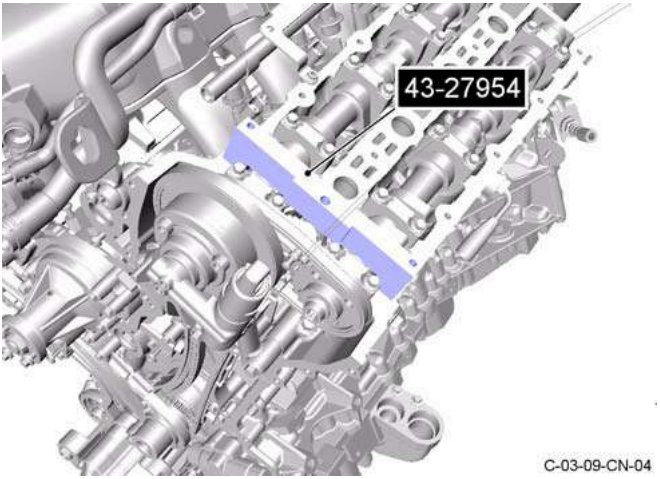

    5. Special tool removed from left side camshaft, part number 43-27954 shown

    Figure 33

  5. Remove the three screws that attach the special tool to the cylinder head.

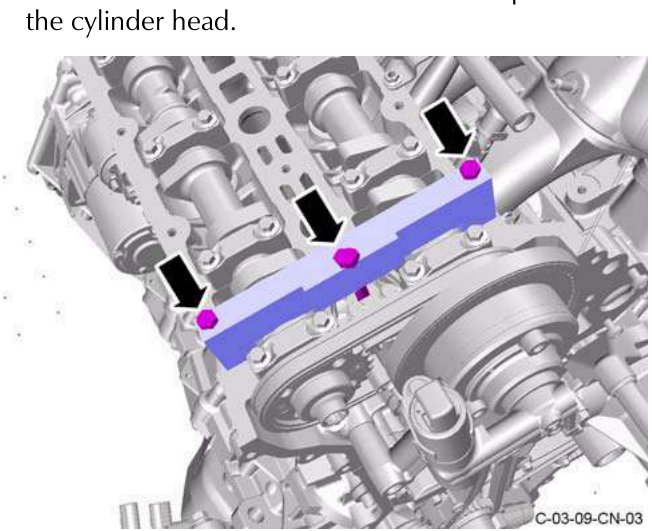

    6. Three screws removed from cylinder head, part number 43-27956 shown

    Figure 34

  6. Remove the special tool from the right side camshaft.

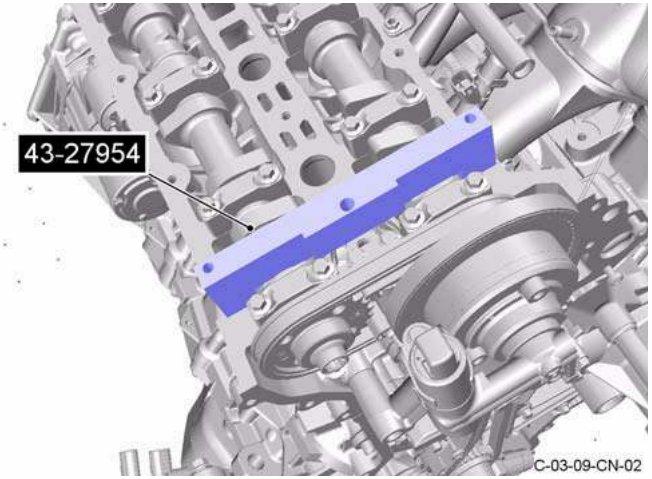

    7. Special tool removed from right side camshaft, part number 43-27954 shown

    Figure 35

    Caution: During the step that follows, if you feel any increase in resistance, do not force the crankshaft. If you do you can damage the engine. If you cannot turn the crankshaft, you must do the engine timing procedure again.

  7. Turn the crankshaft two full revolutions clockwise.
  8. Use the applicable equipment to lift the vehicle and make it safe.
