Valve Train: Specifications (page 6 of 7)

Note: Make sure that you torque the bolt that attaches the sprocket to the exhaust camshaft first in the step that follows.

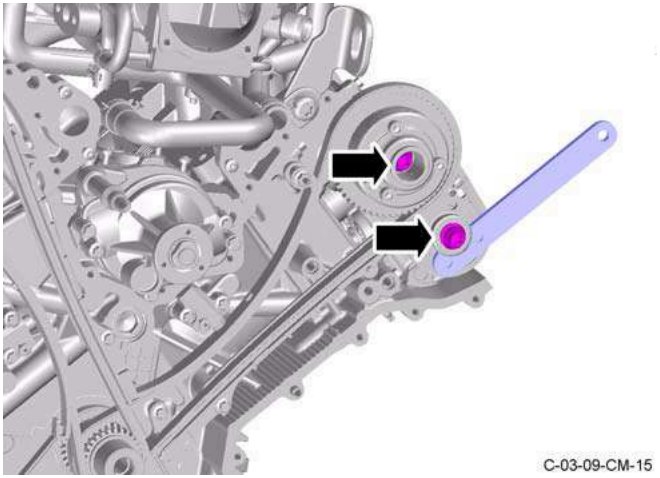

1. Torque the two Torx bolts that attach the camshaft sprockets to the camshafts to 20 Nm.

Note: Make sure that you torque the bolt that attaches the sprocket to the exhaust camshaft first in the step that follows.

1. Tighten the two Torx bolts that attach the camshaft sprockets to the camshafts 90 degrees more (refer to Figure 26).
2. Remove the special tool from the exhaust camshaft sprocket (refer to Figure 23).
3. Install the left side bush carrier for the VCT.

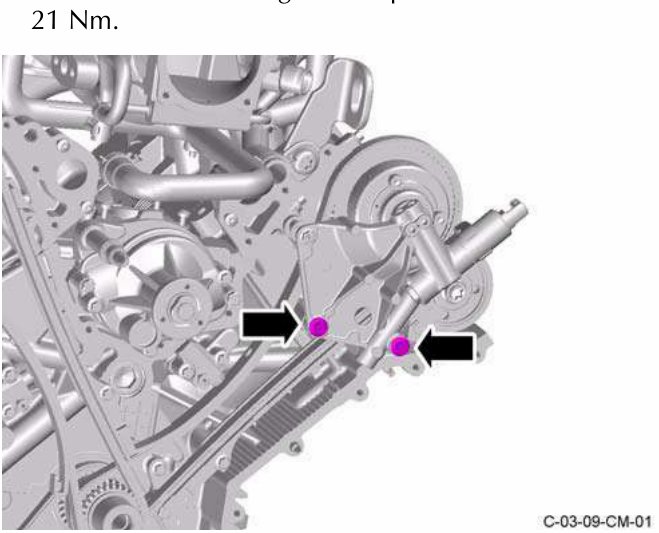

1. Install the two bolts that attach the left side bush carrier for the VCT to the engine. Torque the two bolts to 1 Nm.

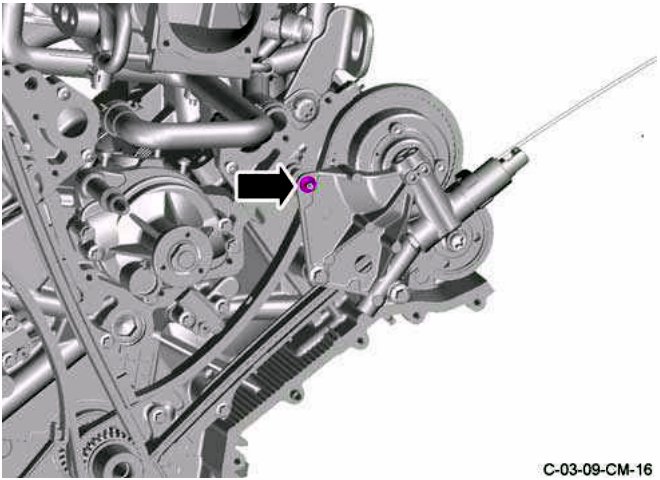

1. Install and torque the nut that attaches the left side bush carrier for the VCT to the engine to 11 Nm.

1. Use the applicable equipment to lift the vehicle and make it safe.

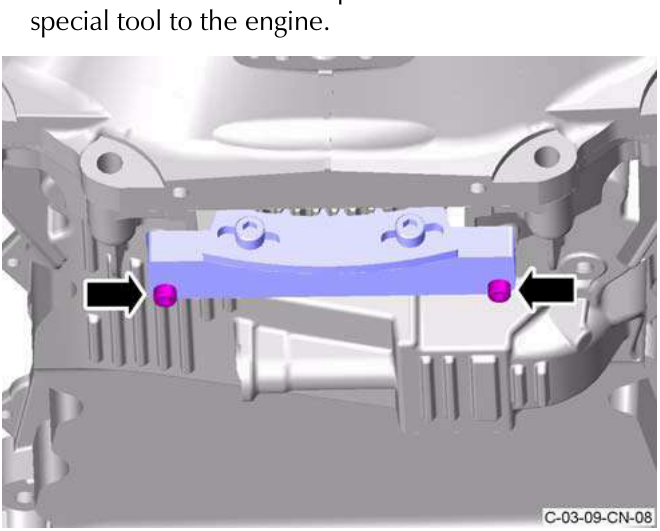

2. Remove the two socket cap screws that attach the special tool to the engine.
