07 TransmissionDescription
Description

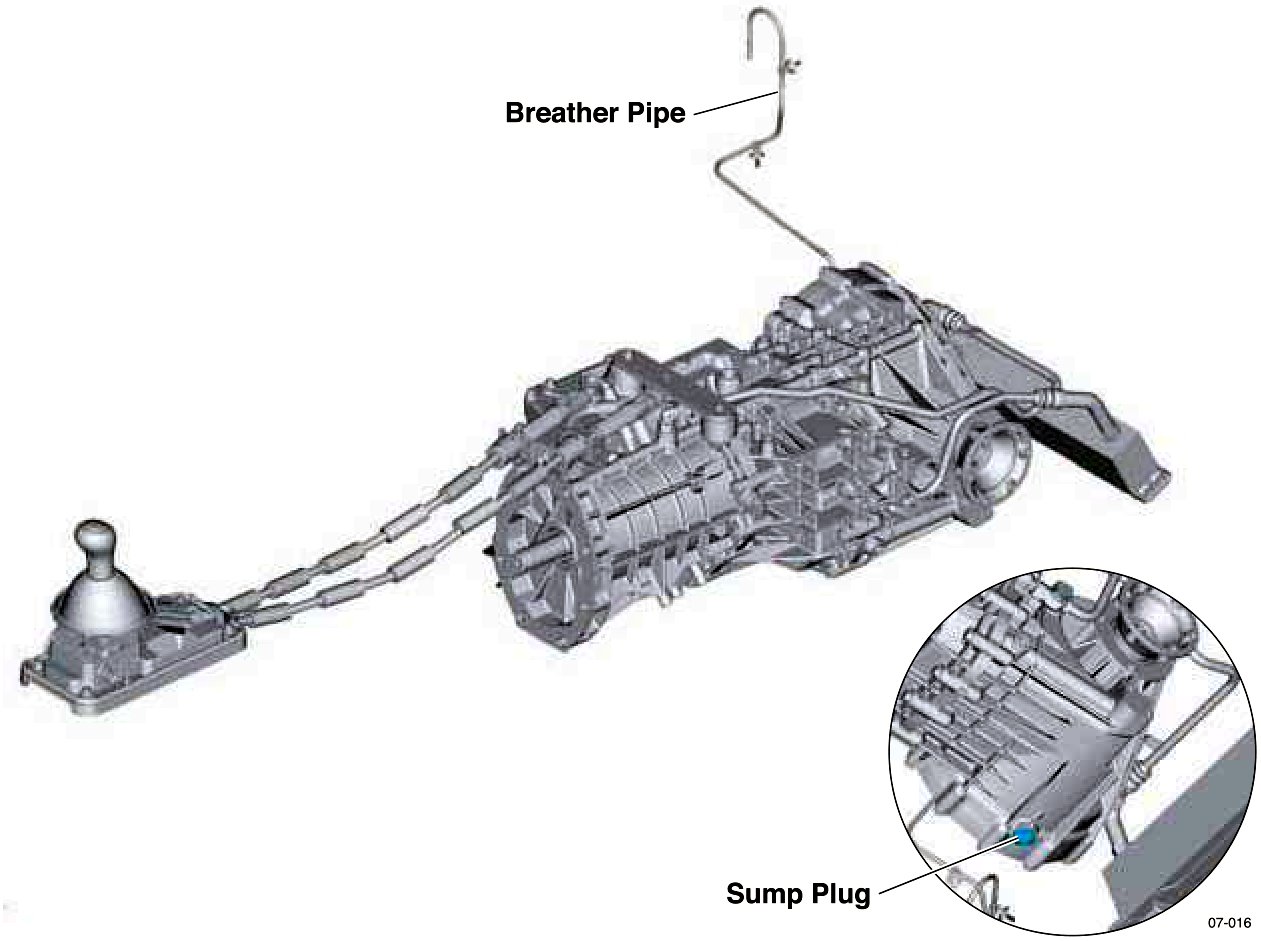

The Graziano rear transaxle installed to this vehicle incorporates a six speed transmission plus reverse, with synchromesh on all gears. Gear selection is via an Integrated Shifter Bellcrack System (Cable Operated).
Cooling
The manual transaxle has an external cooling circuit which operates continuously by a fixed displacement pump driven by the input shaft.
The cooler is mounted at the rear attached to the subframe.
