Install

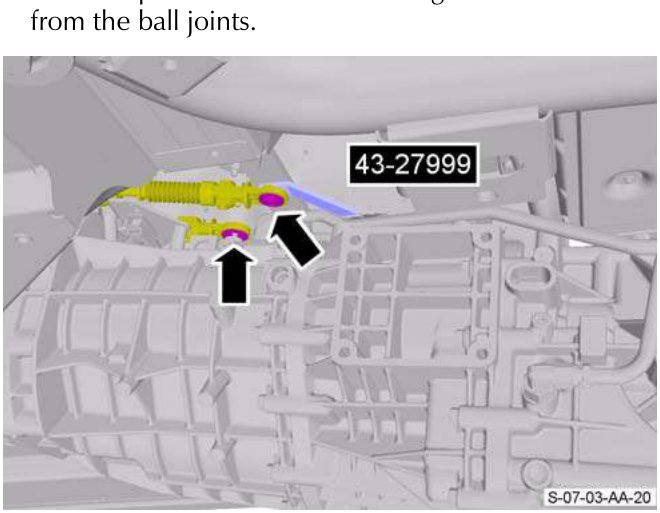

41. Use the special tool to release the gear selector cables F1 from the ball joints.

Figure 16

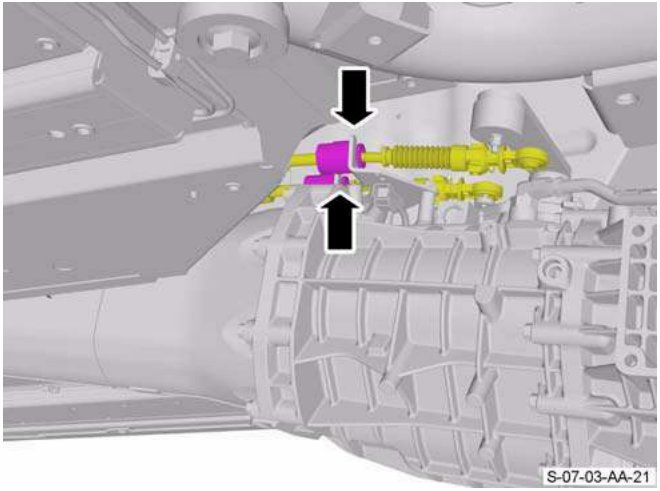

42. Release the gear selector cables from the bracket.

Figure 17

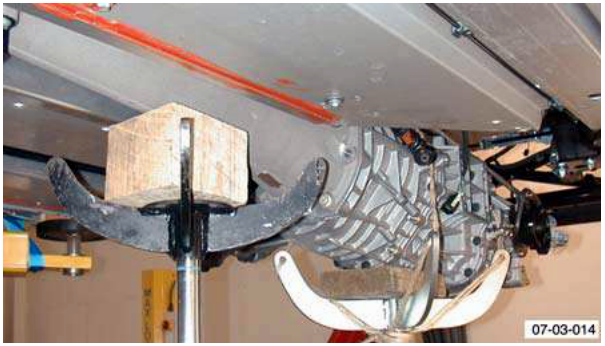

Put a transmission jack in position below the torque tube.

Figure 18

43. Adjust the height of the transmission jack to hold the torque tube.

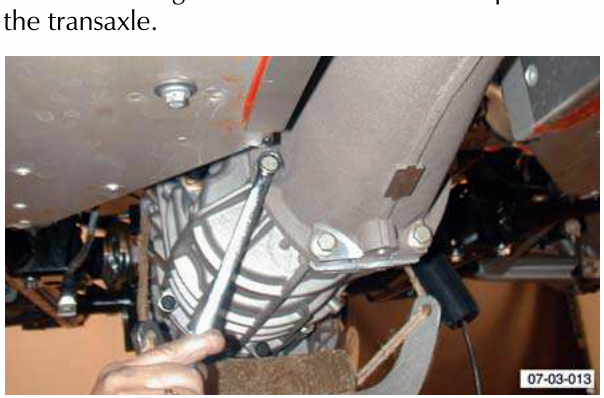

44. Remove the eight bolts that attach the torque tube to F4 the transaxle.

Figure 19.

THE TRANSAXLE ASSEMBLY IS VERY HEAVY. GET THE AID OF ONE MORE PERSON WHEN YOU MOVE THE TRANSAXLE. IF YOU DO NOT, PERSONAL INJURY CAN OCCUR.

45. Move the transaxle rearward to give clearance between the torque tube and the transaxle

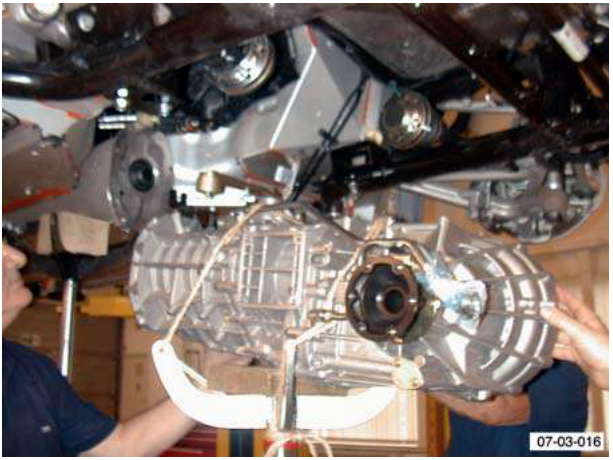

46. Carefully lower the transaxle on the transmission jack to remove the transaxle from the vehicle.

Figure 20

47. Clean the mating faces of the components.

Install

1. Move the transaxle on the transmission jack, into position below the vehicle.

THE TRANSAXLE ASSEMBLY IS VERY HEAVY. GET THE AID OF ONE MORE PERSON WHEN YOU MOVE THE TRANSAXLE. IF YOU DO NOT, PERSONAL INJURY CAN OCCUR.

2. Use the transmission jack to adjust the height of the transaxle to align the transaxle with the torque tube.
3. Install and torque the eight bolts that attach the torque tube to the transaxle.
4. Lower the transmission jack away from the torque tube.
5. Connect the gear selector cables to the ball joints.
6. Install the gear selector cables into the bracket.
