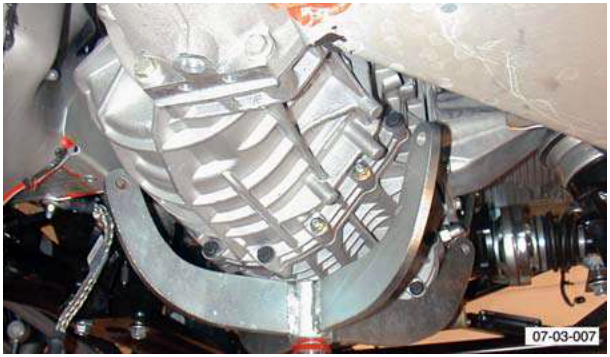

  1. Put a transmission jack below the transaxle (refer to Figure 12).
    2. Transmission jack positioned under transaxle

    Figure 12

  2. Adjust the height of the transmission jack until it holds the transaxle.

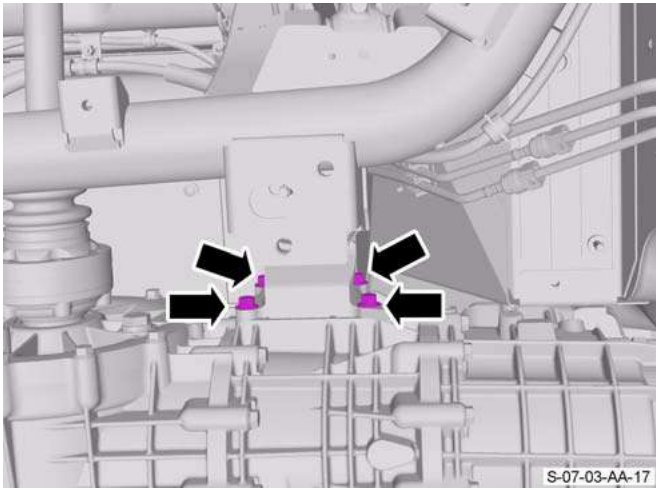

  3. Remove and discard the four bolts that attach the right side transaxle mount bracket to the transaxle. (see Figure 13).
    4. Four bolts on right side transaxle mount bracket

    Figure 13

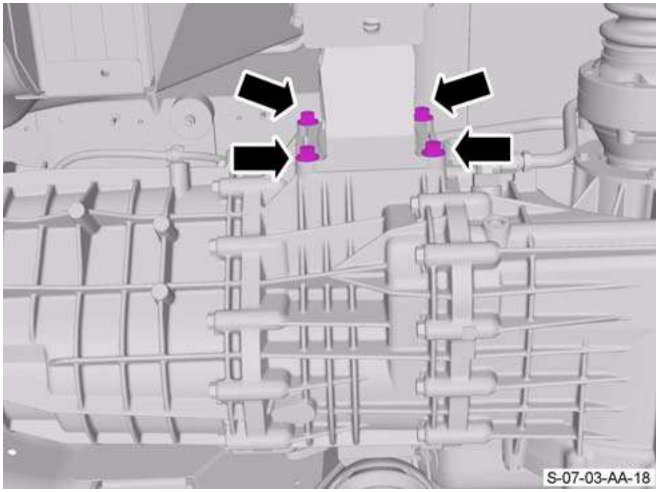

  4. Remove and discard the four bolts that attach the left side transaxle mount bracket to the transaxle.
    5. Four bolts on left side transaxle mount bracket

    Figure 14

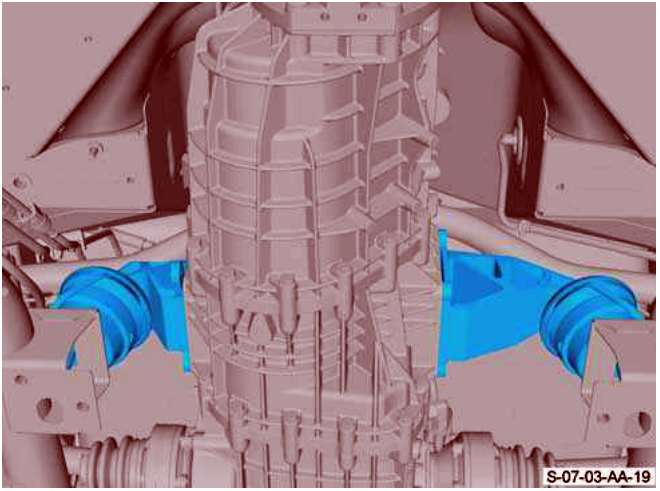

  5. Remove the transaxle mount assemblies.
    6. Transaxle mount assemblies removed

    Figure 15

  6. Use an applicable strap to attach the transaxle to the transmission jack.
  7. Lower the transaxle on the transmission jack by approximately 420 mm.
  8. Release the wiring harness for the reverse lamp switch from the clip.

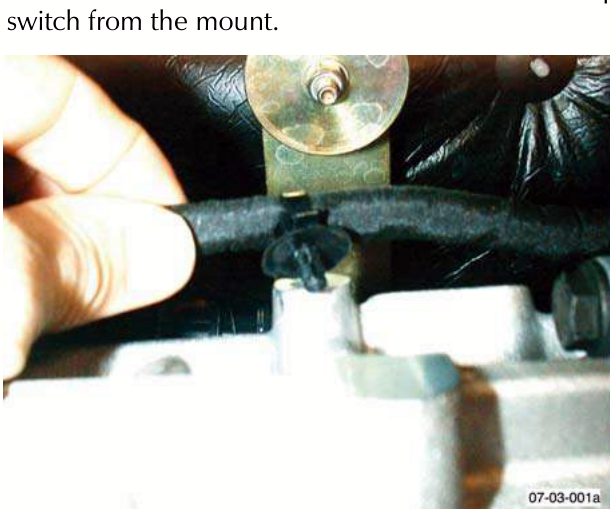

  9. Release the electrical connector for the reverse lamp switch from the mount.
    10. Hand releasing electrical connector

    Figure 16

  10. Disconnect the electrical connector from the reverse lamp switch.
