Install

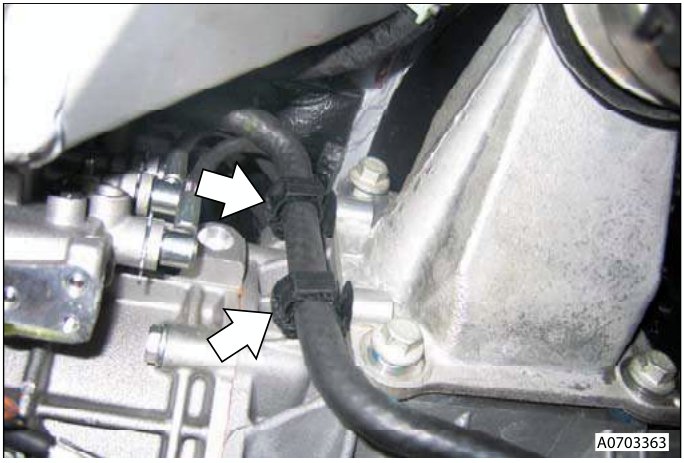

5. Release reservoir hoses from transaxle mounting clips (x2) (see Figure 2).

Figure 2

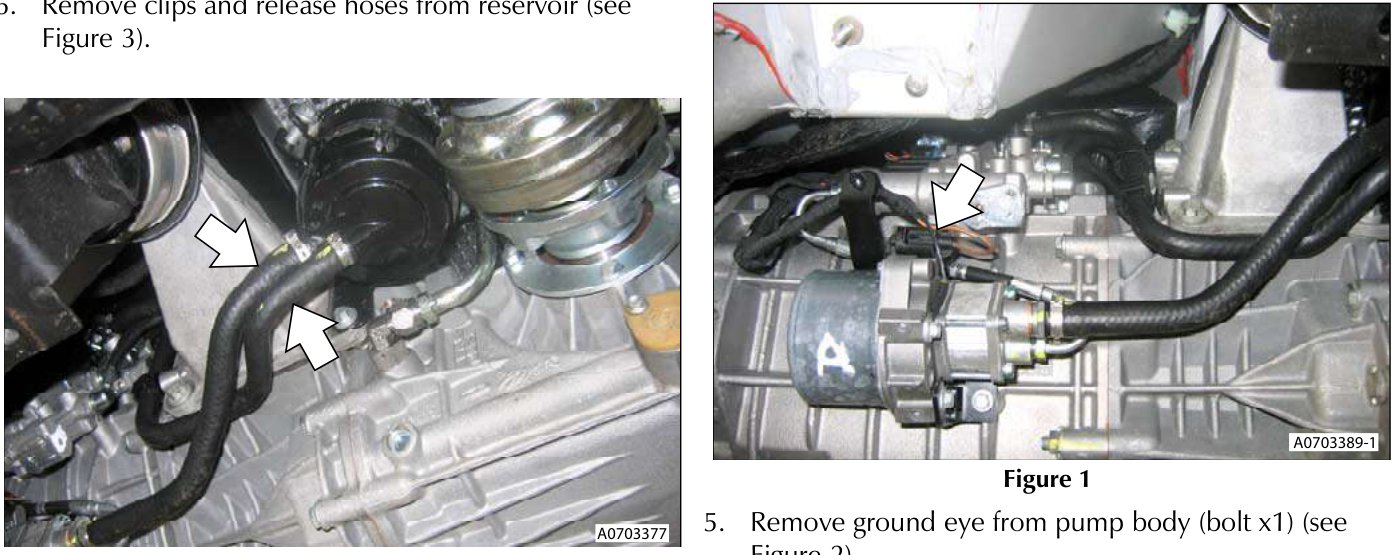

6. Remove clips and release hoses from reservoir (see Figure 3).

Figure 3

Install

1. Install hoses to reservoir and fit new clips.
2. Install reservoir hoses to valve unit and pump. Fit new clips (remove drain tray).
3. Install reservoir hoses to clips.
4. Top-up reservoir.
5. Connect vehicle battery.

WARNING
ALWAYS CONNECT THE BATTERY EARTH (+VE) TERMINAL FIRST.

6. Lower vehicle, turn ignition ON for 20 seconds to activate gearbox pump. Turn ignition OFF and raise vehicle.
7. Top-up reservoir.
8. Install rear undertray (see Workshop Manual procedure 01.02.PB Undertray - Rear - Renew).
9. Lower vehicle on ramp.

Hydraulic Pump Assembly-Renew-Sportshift Only

Removal

1. Raise vehicle on ramp.
2. Disconnect vehicle battery.

WARNING
ALWAYS DISCONNECT THE BATTERY EARTH (- VE) TERMINAL FIRST.

3. Remove rear undertray (see Workshop Manual procedure 01.02.PB Undertray - Rear - Renew).
4. Disconnect pump multiplug (see Figure 1).

Figure 1

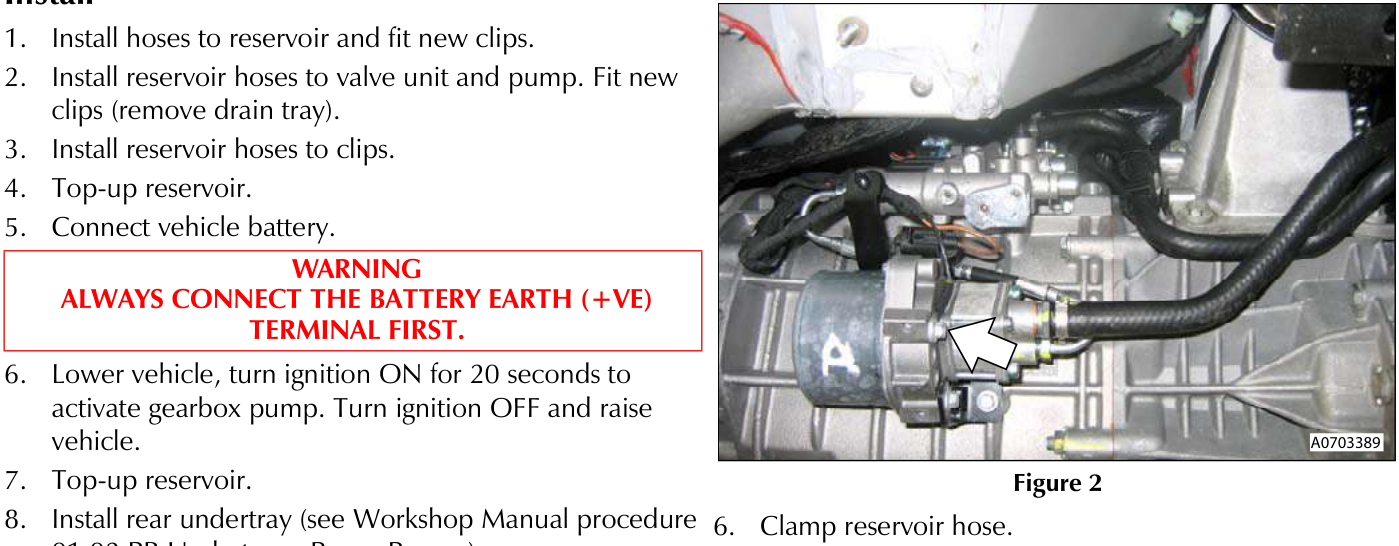

5. Remove ground eye from pump body (bolt x1) (see Figure 2).

Figure 2

6. Clamp reservoir hose.
