A5
Vehicle electrics
Communication / Infotainment
Aerial system (Sportback)
Removing and installing aerial amplifier 4R113
Removing and installing aerial amplifier 4 -R113-
The aerial amplifier 4 -R113- is located on the rear lid (bottom right).
–
Switch off all electrical equipment.
–
Remove ignition key.
Removing
–
Remove rear lid trim
→ General body repairs, interior; Rep. gr.70
.
–

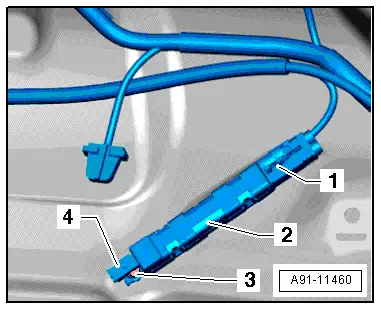

Release and unplug connectors
-1-
and
-4-
at aerial amplifier 4 -R113-
-2-
.
–
Unscrew bolt
-3-
and remove aerial amplifier 4 -R113-
-2-
from rear lid.
Installing
–
Install in reverse sequence of removal.
