Telephone system (USA)

Make

Audi

Model

A5

Section

Communication › Infotainment › Telephone system (USA)

Vehicle electricsTelephone system (USA)

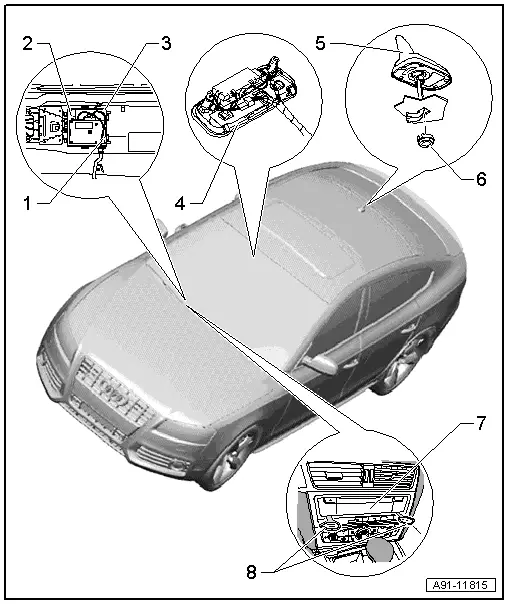

Overview (from week 45/08 onwards)

1 -	Telephone transmitter and receiver unit -R36-

q	Pin assignment (CAN from model year 2009 onwards) → Chapter

q	Pin assignment of Bluetooth hands-free system (CAN) → Chapter

q	Removing and installing → Chapter

2 -	Aerial for Bluetooth -R152-

3 -	Electronics box

4 -	Microphone unit in front roof module -R164-

q	Overview → Chapter

q	Removing and installing → Chapter

5 -	Radio, telephone and navigation system aerial -R52-/roof aerial -R216-

q	Overview (Coupé) → Chapter

q	Overview (Sportback) → Chapter

6 -

Nut

q

6 Nm

7 -	Control unit 1 for information electronics -J794-

q	Pin assignment of mobile phone pre-installation (MMI from week 45/08 onwards) → Chapter

q	Pin assignment of Bluetooth hands-free system (MMI) → Chapter

q	Removing and installing → Chapter

8 -	Radio release tool -T10057-
