MMI infotainment system (Japan)

Make

Audi

Model

A5

Section

Communication › Infotainment › MMI infotainment system (Japan)

Vehicle electricsMMI infotainment system (Japan)

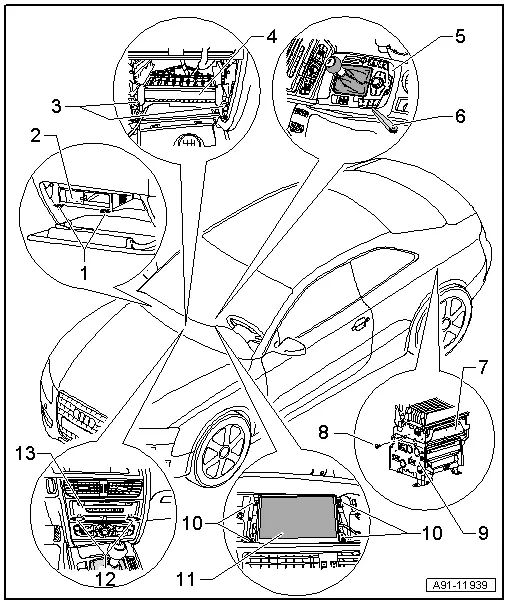

MMI (up to week 44/08) - overview

1 -	Radio release tool -T10057-

2 -	Connection for external audio sources -R199-

q	Connectors (MMI) → Chapter

q	Removing and installing → Chapter

3 -

Bolt

q

2 Nm

- Bolt, bracket

q

2 Nm

4 -	Control unit for front display and information control panel -J523-

q	Connectors (up to week 44/08) → Chapter

q	Removing and installing (up to week 44/08) → Chapter

5 -	Multimedia system operating unit -E380-

q	Connectors → Chapter

q	Removing and installing → Chapter

6 -	Removal wedge -3409-

7 -

Radio -R-

q	Connectors (up to week 44/08) → Chapter

q	Removing and installing (up to week 44/08) → Chapter

8 -

Bolt (2x)

q

4.5 Nm

9 -

Rack

10 -

Bolt

q

2 Nm

11 -	Display unit for front information display and operating unit control unit -J685-

q	Connectors for MMI (up to week 44/08) → Chapter

q	Removing and installing → Chapter

12 -	Radio release tool -T10057-

13 -	CD changer -R41-

q	Connectors (MMI) → Chapter

q	Removing and installing (up to week 44/08) → Chapter
