LEFT FRONT WHEEL ARCH LINER - R.R.

Operation 7055B90 · EXTERIOR PROTECTIONS

Removing

- Position the vehicle on a lift.

- Raise the vehicle.

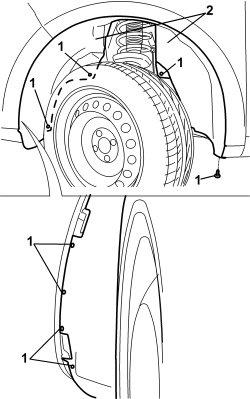

1. Undo the wheel compartment retaining bolts.

2. Remove the wheel compartment by releasing it from its housing.

Refitting

- Check that the wheel compartment is not damaged.

- Place the wheel compartment in position and fit it.

- Tighten the wheel compartment retaining bolts.

- Remove the vehicle from the lift.
