Body fittingsLeft rear wheel arch liner - r.r
LEFT REAR WHEEL ARCH LINER - R.R
Removing
Op. 4450B06 LEFT REAR WHEEL - R.R

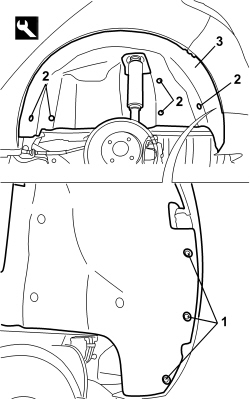

1. Undo the bolts securing the wheel compartment to the rear bumper.
2. Release the retaining buttons using the special tool.
| Tool | Description | Function | Validity |
|---|---|---|---|
| 1823015000 | Knife | Retainer removal |
3. Remove the wheel compartment by releasing it from its housing.
Refitting
- Check that the wheel compartment is not damaged.
- Place the wheel compartment in position and fit it.
- Apply the retaining buttons.
- Tighten the bolts securing the wheel compartment to the rear bumper.
