REAR SEAT ARMREST - R+R

Operation 7050B18 · REAR SEAT HEAD RESTRAINT/ARMREST

Removing

- Release and lower the rear seat right backrest.

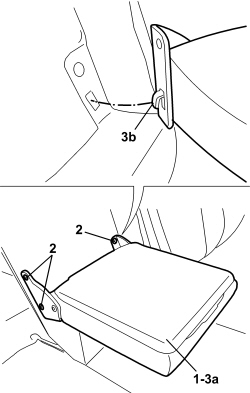

1. Lower the armrest.

2. Undo the bolts.

3. Remove the armrest (3a) releasing the retainer (3b) for the left support.

Refitting

- Check that the armrest is not damaged.

- Position the armrest and attach the retainer for the left support.

- Tighten the bolts.

- Raise the armrest.

- Raise the rear seat right backrest and attach it.
