REAR SEAT BACKREST LOWER ATTACHMENT DEVICE - R.R.

Operation 7050A89 · REAR SEAT ASSEMBLY

Removing

Op. 7050A19 REAR SEAT BACKREST - R.R

Op. 7050A13 SPLIT REAR SEAT LEFT BACKREST - R.R.

Op. 7050B12 REAR SEAT HEAD RESTRAINT - R.R.

Op. 7050D35 LEFT REAR SEAT BACKREST COVER (TWO SEATER) - R.R. WITH BACKREST REMOVED

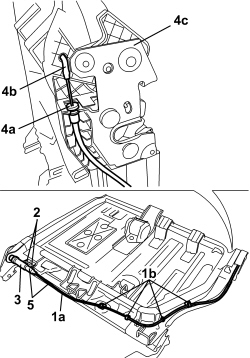

1. Release the flexible cable (1a) from retainers (1b).

2. Undo the bolts.

3. Remove the pin for the device.

4. Disconnect the retainers (4a) and (4b) for the flexible cable (1a) from the lock (4c).

5. Keep the device assembly.

Refitting

- Check that the device is not damaged.

- Position the device.

- Connect the retainers for the flexible cable to the lock.

- Fit the device pin in place.

- Tighten the bolts.

- Attach the flexible cable to the retainers.

1. Operate the device using the lock and check that the pin (1a) slides freely in the opening (1b) in the support (1c).

Op. 7050D35 LEFT REAR SEAT BACKREST COVER (TWO SEATER) - R.R. WITH BACKREST REMOVED
