FIXED GLASS BLIND - R.R

Operation 7030B37 · SLIDING ROOF

Removing

Op. 7040H80 REAR PARCEL SHELF - R.R.

Op. 7040G30 BOOT LIGHT BULB HOLDER - R.R.

Op. 7040H30 FRONT PILLAR TRIM (ONE), LEFT OR RIGHT - R.R.

Op. 7040H38 CENTRE PILLAR UPPER ELEMENT (ONE), LEFT OR RIGHT - R.R

Op. 7040H66 LEFT REAR SIDE TRIM, WITH REAR PARCEL SHELF SUPPORT - R.R.

Op. 7040H67 RIGHT REAR SIDE TRIM, WITH REAR PARCEL SHELF SUPPORT - R.R.

Op. 7040E12 CENTRE COURTESY LIGHT - R+R

Op. 7030B64 SUN ROOF CONTROL SWITCH - R+R

Op. 7040E10 FRONT COURTESY LIGHT - R+R

- Remove the sun blinds.

Op. 7065C34 SUN BLIND (ONE), LEFT OR RIGHT - R.R.

- Remove all the grab handles.

Op. 7065C30 GRAB HANDLE (ONE) LEFT, RIGHT OR CENTRE PASSENGER COMPARTMENT INTERIOR - R.R

Op. 7030B32 SLIDING ROOF DECORATIVE SEAL(1) FRONT OR REAR - R R

- Recline the front seat backrests into the end of travel position.

1. Undo the bolt (1a) and remove the middle courtesy light housing (1b).

2. Prise up the door housing seals in the area of the roof lining.

3. Lower the roof lining.

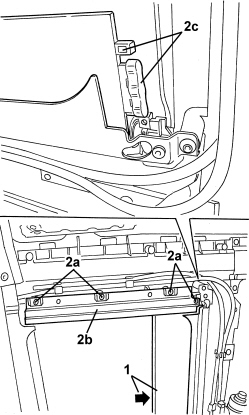

1. Open the blind for the fixed transparent panel completely.

2. Working on both sides of the blind, undo the bolts (2a) and remove the blind guides (2b) releasing them from the actual blind pads (2c).

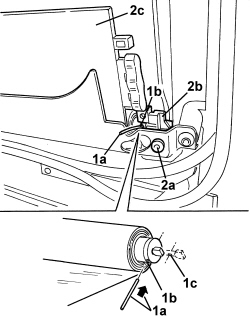

1. If the blind is being reused, in order not to lose the reel inner spring loading, working on the left side of the blind, insert a pin (1a) in the opening and let it come out of the other side of the shaft, rotating the blind gently to also locate the pin (1c) inner opening. Bend the two ends of the pin (1a) slightly so that it does not come out of the opening during the removal of the blind.

2. Undo the bolt (2a) and remove the support (2b) and the blind (2c).

1. If necessary, undo the bolt (1a) and remove the right support (1b) for the blind.

Refitting

- Check that the blind and the supports are not damaged.

- If removed, place the right support for the blind in position and tighten the bolt.

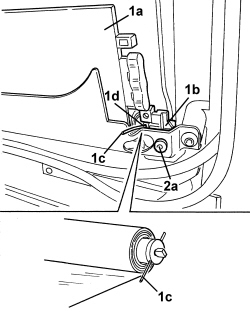

1. Position the blind (1a) connecting it to the right support, then position the left support (1b).

Position the spring (1c) locking pin by the opening (1d) for the support.

2. Tighten the bolt (2a) securing the support (1b).

Extract the pin (1c).

- Working on both sides of the blind, position the blind guides attaching them to the actual blind pads, then tighten the bolts.

- Close the blind and check that it is working properly.

- Position the roof lining and fit the door housing seals.

- Position the middle courtesy light housing and tighten the bolt.

- Place the front seats back in the normal position.
