SLIDING ROOF BLIND - R+R

Operation 7030B28 · SLIDING ROOF

Removing

Op. 7040H80 REAR PARCEL SHELF - R.R.

Op. 7040G30 BOOT LIGHT BULB HOLDER - R.R.

Op. 7030B18 SLIDING ROOF GLASS PANEL - R+R

Op. 7040H30 FRONT PILLAR TRIM (ONE), LEFT OR RIGHT - R.R.

Op. 7040H38 CENTRE PILLAR UPPER ELEMENT (ONE), LEFT OR RIGHT - R.R

Op. 7040H66 LEFT REAR SIDE TRIM, WITH REAR PARCEL SHELF SUPPORT - R.R.

Op. 7040H67 RIGHT REAR SIDE TRIM, WITH REAR PARCEL SHELF SUPPORT - R.R.

Op. 7040E12 CENTRE COURTESY LIGHT - R+R

Op. 7030B64 SUN ROOF CONTROL SWITCH - R+R

Op. 7040E10 FRONT COURTESY LIGHT - R+R

- Remove the sun blinds.

Op. 7065C34 SUN BLIND (ONE), LEFT OR RIGHT - R.R.

- Remove all the grab handles.

Op. 7065C30 GRAB HANDLE (ONE) LEFT, RIGHT OR CENTRE PASSENGER COMPARTMENT INTERIOR - R.R

Op. 7030B32 SLIDING ROOF DECORATIVE SEAL(1) FRONT OR REAR - R R

- Recline the front seat backrests into the end of travel position.

1. Undo the bolt (1a) and remove the side courtesy light housing (1b).

2. Prise up the door housing seals in the area of the roof lining.

3. Lower the roof lining.

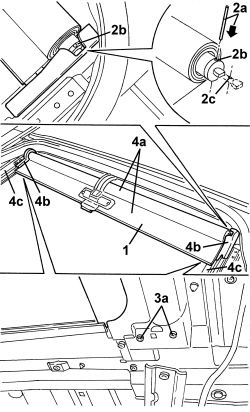

1. Open the sun blind completely.

2. If the blind is being reused, in order not to lose the reel inner spring loading, insert a pin (2a) in the opening (2b) and let it come out on the opposite side of the shaft, rotating the blind slightly to also locate the inner opening for the pin (2c). Bend the two ends of the pin (2a) slightly so that it does not come out of the opening when the blind is removed.

3. Working on the inside of the ceiling, undo the bolts (3a) for the blind on both sides.

4. Remove the blind (4a) and the supports (4b), releasing it from guides (4c).

Refitting

- Check that the blind and the supports are not damaged.

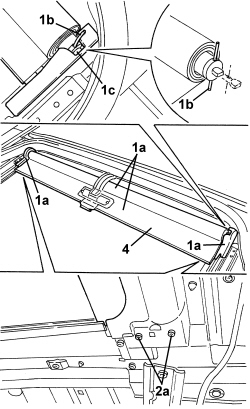

1. Position the blind and supports (1a) and attach to the guides.

Position the spring (1b) locking pin by the opening (1c) for the support.

2. Working on the inside of the ceiling, tighten the bolts (2a) for the blind on both sides.

3. Extract the pin (1b).

4. Close the blind and check that it is working properly.

- Position the roof lining and fit the door housing seals.

- Position the middle courtesy light housing and tighten the bolt.

- Place the front seats back in the normal position.

Op. 7030B32 SLIDING ROOF DECORATIVE SEAL(1) FRONT OR REAR - R R

Op. 7065C30 GRAB HANDLE (ONE) LEFT, RIGHT OR CENTRE PASSENGER COMPARTMENT INTERIOR - R.R

Op. 7065C34 SUN BLIND (ONE), LEFT OR RIGHT - R.R.

Op. 7040E10 FRONT COURTESY LIGHT - R+R

Op. 7030B64 SUN ROOF CONTROL SWITCH - R+R

Op. 7040E12 CENTRE COURTESY LIGHT - R+R

Op. 7040H67 RIGHT REAR SIDE TRIM, WITH REAR PARCEL SHELF SUPPORT - R.R.

Op. 7040H66 LEFT REAR SIDE TRIM, WITH REAR PARCEL SHELF SUPPORT - R.R.

Op. 7040H38 CENTRE PILLAR UPPER ELEMENT (ONE), LEFT OR RIGHT - R.R

Op. 7040H30 FRONT PILLAR TRIM (ONE), LEFT OR RIGHT - R.R.

Op. 7030B18 SLIDING ROOF GLASS PANEL - R+R

Op. 7040G30 BOOT LIGHT BULB HOLDER - R.R.

Op. 7040H80 REAR PARCEL SHELF - R.R.
