INTRODUCTION - AUXILIARY DRIVEBELTS

1.4 16v, 1.4 16v TJet

INTRODUCTION

AIR CONDITIONED VERSIONS

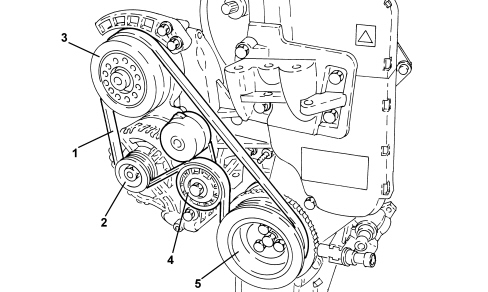

It is the Poly-V type and controls the alternator and the air conditioning compressor.

There is an automatic tensioner, which means that no maintenance operations are required.

1. Auxiliary drivebelt

2. Alternator

3. Air conditioning compressor

4. Automatic tensioner

5. Crankshaft pulley

NON AIR CONDITIONED VERSIONS

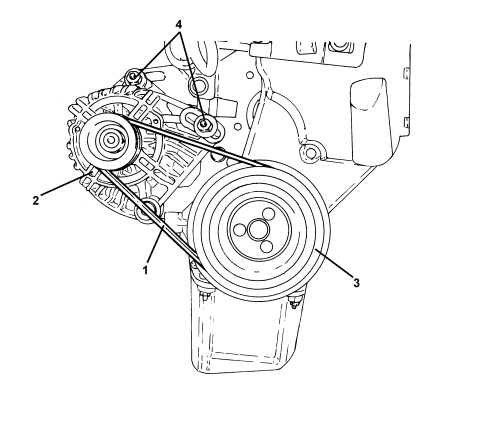

It is the Poly-V type and controls the alternator. The tensioning is carried out via the special slotted upper alternator fastenings.

1. Alternator drive belt

2. Alternator

3. Crankshaft pulley

4. Upper alternator fastenings - belt tensioning

1.9 JTD 8v, 1.9 JTD 16v

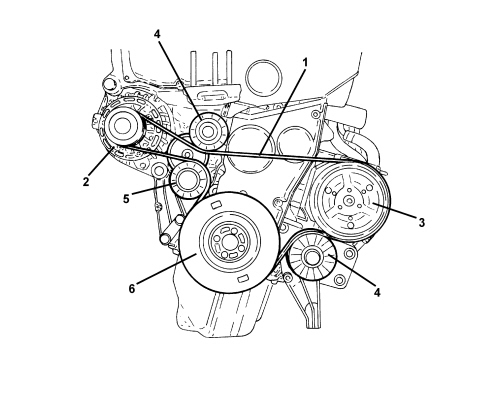

The Poly-V type auxiliary drive belt (1) controls the alternator (2) and, where applicable, the air conditioning compressor (3).

Tensioning is carried out by an automatic tensioner (5) and two fixed tensioners (4), which means that no maintenance operations are required.

The crankshaft pulley (6) contains a flexible sector that reduces crankshaft torsional vibration and stresses on the belt and thus on auxiliary engine components.
