SLIDING CURTAIN DRAGGING DEVICE - R R

Operation 7030B43 · SLIDING ROOF

Removing

- Turn the ignition key to the OFF position.

- Disconnect the negative battery terminal.

(Both)

Op. 7065C33 SUN BLIND WITH COURTESY MIRROR AND COURTESY LIGHT ONE LH OR RH R R

(all)

Op. 7065C30 GRAB HANDLE (ONE) LEFT, RIGHT OR CENTRE PASSENGER COMPARTMENT INTERIOR - R.R

Op. 7040E51 FRONT MODULAR COURTESY LIGHT ASSEMBLY - R R FOR VERSIONS WITH SUN-ROOF

Op. 7040E46 REAR COURTESY LIGHT ASSEMBLY - R R

Op. 7040B26 LOAD PLATFORM COVER BLIND - R+R

FOR VERSIONS WHERE IT IS FITTED

Op. 7040B42 PROTECTION GRILLE FOR ANIMAL TRANSPORT - R and R

(Both)

Op. 7040B44 PROTECTIVE GRILL ATTACHMENT ONE R R

(Both)

Op. 7040H30 FRONT PILLAR TRIM (ONE), LEFT OR RIGHT - R.R.

FOR ALL VERSIONS

(Both)

Op. 7040H36 CENTRE PILLAR LOWER ELEMENT (ONE), LEFT OR RIGHT - R.R

(Both)

Op. 7040H38 CENTRE PILLAR UPPER ELEMENT (ONE), LEFT OR RIGHT - R.R

(Both)

Op. 7040H42 REAR PILLAR TRIM (ONE), LEFT OR RIGHT- R.R

(Both)

Op. 7040H50 REAR PANEL (ONE), LEFT OR RIGHT - R.R

Op. 7040H16 ROOF PANEL LINING FOR VERSIONS WITH SUN ROOF - R.R

Op. 7030B70 SUN ROOF MOVEMENT MOTOR - R+R

Op. 7030B78 SUN ROOF BLIND MOVEMENT MOTOR - R.R.

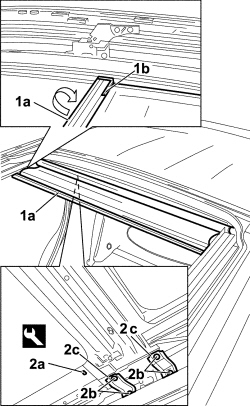

1. Release the blind (1a) from the drivers (1b) using a circular movement.

2. Using the special tool, release the end of travel pin (2a), undo the bolts (2b) and remove the brackets (2c) on both sides.

Removing the end of travel pins destroys them; use new replacement parts when refitting.

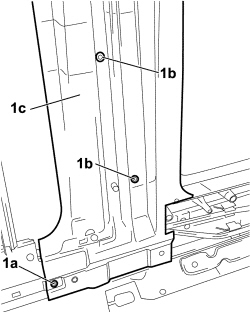

1. Undo the fixing bolts (1a) on both sides, the five fixing bolts (1b) and remove the crossmember (1c) complete with blind.

Op. 7030B47 SLIDING ROOF CABLE GUIDE DEVICE - R.R

Op. 7030B39 SLIDING CURTAIN CABLE GUIDE DEVICE - R R

- Release and remove the drivers from the sliding blind movement cables guide.

Refitting

- Fit the new drivers in the sliding blind movement cables guide.

Op. 7030B39 SLIDING CURTAIN CABLE GUIDE DEVICE - R R

Op. 7030B47 SLIDING ROOF CABLE GUIDE DEVICE - R.R

- Place the centre crossmember in the vehicle fitting the blind in the guides, tighten the fixing bolts to the sun roof frame and to the sun roof guides.

- Fit the mounting brackets and tighten the fixing bolts.

- Fit new end of travel pins and attach the blind to the drivers.

Op. 7030B78 SUN ROOF BLIND MOVEMENT MOTOR - R.R.

Op. 7030B70 SUN ROOF MOVEMENT MOTOR - R+R

Op. 7040H16 ROOF PANEL LINING FOR VERSIONS WITH SUN ROOF - R.R

(Both)

Op. 7040H50 REAR PANEL (ONE), LEFT OR RIGHT - R.R

(Both)

Op. 7040H42 REAR PILLAR TRIM (ONE), LEFT OR RIGHT- R.R

(Both)

Op. 7040H38 CENTRE PILLAR UPPER ELEMENT (ONE), LEFT OR RIGHT - R.R

(Both)

Op. 7040H36 CENTRE PILLAR LOWER ELEMENT (ONE), LEFT OR RIGHT - R.R

(Both)

Op. 7040H30 FRONT PILLAR TRIM (ONE), LEFT OR RIGHT - R.R.

FOR VERSIONS WHERE IT IS FITTED

(Both)

Op. 7040B44 PROTECTIVE GRILL ATTACHMENT ONE R R

Op. 7040B42 PROTECTION GRILLE FOR ANIMAL TRANSPORT - R and R

FOR ALL VERSIONS

Op. 7040B26 LOAD PLATFORM COVER BLIND - R+R

Op. 7040E46 REAR COURTESY LIGHT ASSEMBLY - R R

Op. 7040E51 FRONT MODULAR COURTESY LIGHT ASSEMBLY - R R FOR VERSIONS WITH SUN-ROOF

(All)

Op. 7065C30 GRAB HANDLE (ONE) LEFT, RIGHT OR CENTRE PASSENGER COMPARTMENT INTERIOR - R.R

(Both)

Op. 7065C33 SUN BLIND WITH COURTESY MIRROR AND COURTESY LIGHT ONE LH OR RH R R

- Connect the negative battery terminal.
