SLIDING ROOF (ASSEMBLY) - R+R

Operation 7030B12 · SLIDING ROOF

Removing

- Turn the ignition key to the OFF position.

- Disconnect the negative battery terminal.

(Both)

Op. 7065C33 SUN BLIND WITH COURTESY MIRROR AND COURTESY LIGHT ONE LH OR RH R R

(all)

Op. 7065C30 GRAB HANDLE (ONE) LEFT, RIGHT OR CENTRE PASSENGER COMPARTMENT INTERIOR - R.R

Op. 7040E51 FRONT MODULAR COURTESY LIGHT ASSEMBLY - R R FOR VERSIONS WITH SUN-ROOF

Op. 7040E46 REAR COURTESY LIGHT ASSEMBLY - R R

Op. 7040B26 LOAD PLATFORM COVER BLIND - R+R

FOR VERSIONS WHERE IT IS FITTED

Op. 7040B42 PROTECTION GRILLE FOR ANIMAL TRANSPORT - R and R

(Both)

Op. 7040B44 PROTECTIVE GRILL ATTACHMENT ONE R R

(Both)

Op. 7040H30 FRONT PILLAR TRIM (ONE), LEFT OR RIGHT - R.R.

FOR ALL VERSIONS

Both

Op. 7040L44 REAR DOOR RUNNING BOARD (ONE), LEFT OR RIGHT - R.R.

(Both)

Op. 7040H36 CENTRE PILLAR LOWER ELEMENT (ONE), LEFT OR RIGHT - R.R

(Both)

Op. 7040H38 CENTRE PILLAR UPPER ELEMENT (ONE), LEFT OR RIGHT - R.R

(Both)

Op. 7040H42 REAR PILLAR TRIM (ONE), LEFT OR RIGHT- R.R

(Both)

Op. 7040H50 REAR PANEL (ONE), LEFT OR RIGHT - R.R

Op. 7040H16 ROOF PANEL LINING FOR VERSIONS WITH SUN ROOF - R.R

Op. 5570T61 MULTI-FUNCTION AERIAL - R R

Op. 7210E56 R.R. TAILGATE

Op. 7030B18 SLIDING ROOF GLASS PANEL - R+R

Op. 7030B42 SLIDING ROOF SPOILER - R+R

Op. 7030B22 GLASS SEAL - R+R WITH GLASS REMOVED

Op. 7030B49 SLIDING ROOF FRONT ANTI-WIND NOISE GASKET - R R

Op. 7030B51 SLIDING ROOF CENTRAL ANTI-WIND NOISE GASKET - R R

Op. 7030B41 SLIDING ROOF ASSEMBLY OUTER MOULDING (ONE) - R R

Op. 7030B91 SLIDING ROOF ASSEMBLY CENTRAL CROSS MEMBER - R R

Op. 7030B37 FIXED GLASS BLIND - R.R

Op. 7030B74 SUN-ROOF CABLE LOOM - R.R OR REPLACE

Op. 7030B78 SUN ROOF BLIND MOVEMENT MOTOR - R.R.

Op. 7030B70 SUN ROOF MOVEMENT MOTOR - R+R

Op. 7030B47 SLIDING ROOF CABLE GUIDE DEVICE - R.R

Op. 7030B39 SLIDING CURTAIN CABLE GUIDE DEVICE - R R

Op. 7030B92 REAR SLIDING ROOF CROSS MEMBER - R R

Op. 7030B50 SUN ROOF SLIDING GUIDE (ONE), LH OR RH - R.R

Op. 7030B53 SLIDING ROOF GLASS SUPPORT ROD (ONE) RH OR LH - R R

Op. 7030B48 SLIDING ROOF REAR FIXED GLASS PANEL - R.R.

Op. 7030B93 FRONT SLIDING ROOF - R R

Op. 7030B94 REAR SLIDING ROOF - R R

1. Working from inside the vehicle, unscrew the nuts securing the sun roof frame (two front and two rear).

1. Use a Fein vibrating cutter (1a) and Fein cutting blade (1b) to cut the sealant (1c) and cut the second sealant strip (1d) on the roof (1e), still working from the rear.

1. Use a Fein vibrating cutter (1a) and suitable Fein cutting blade (1b) to cut the sealant (1c) along the sliding roof frame (1d).

- Repeat this operation on both sides of the vehicle.

1. Working from inside the car and using a Fein vibrating cutter and Fein cutting blade 63502103010, cut and remove the spoiler fastening area to free up the working area.

2. Working from inside the vehicle, cut the first section of seaslant (2a), still from the rear with the help of a second mechanic, lift up the sliding roof frame, cut the sealant (2b) and remove the actual frame (2c).

Refitting

1. Use appropriate equipment to cut and level the sealant strip to leave a thickness between 0.25 and 1 mm in the roof housing compartment.

The thickness of the sealant remaining in the roof housing will act as a support for the new bonding.

Thoroughly clean the roof housing compartment on the body with compressed air and degrease thoroughly with heptane

When bonding, 60 minutes after the bead of sealant has been cut and levelled, the surface of the actual sealant must be treated using the special activating product and it is necessary to wait for 15 minutes before fitting the windscreen to allow the primer thinner to evaporate.

2. Apply the glass adhesion promoter (primer) (2b) to the site of the old sealant strip using the wick (2a) supplied in the Kit.

- Clean the new roof using heptane.

- Use a pneumatic gun to extrude a sealant strip to the site of the old strip in the roof compartment.

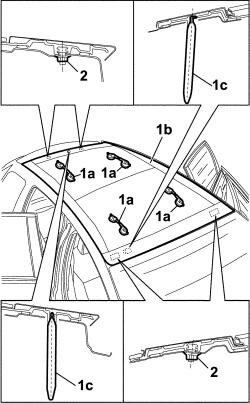

1. Using four suction pads (1a), lift up the roof (1b) and place it correctly in position on the vehicle with the help of the special pins (1c).

2. Tighten the front and rear fixing nuts.

1. Compress the roof (1c) using the belts (1a) and suction pads (1b).

The vehicle should not be handed back for at least 24 hours after the bonding of the roof.

Refer to the sealant manufacturer''s instructions for the drying times.

- Remove the locating pins.

Op. 7210E56 R.R. TAILGATE

Op. 5570T61 MULTI-FUNCTION AERIAL - R R

Op. 7040H16 ROOF PANEL LINING FOR VERSIONS WITH SUN ROOF - R.R

(Both)

Op. 7040H50 REAR PANEL (ONE), LEFT OR RIGHT - R.R

(Both)

Op. 7040H42 REAR PILLAR TRIM (ONE), LEFT OR RIGHT- R.R

(Both)

Op. 7040H38 CENTRE PILLAR UPPER ELEMENT (ONE), LEFT OR RIGHT - R.R

(Both)

Op. 7040L44 REAR DOOR RUNNING BOARD (ONE), LEFT OR RIGHT - R.R.

(Both)

Op. 7040H36 CENTRE PILLAR LOWER ELEMENT (ONE), LEFT OR RIGHT - R.R

(Both)

Op. 7040H30 FRONT PILLAR TRIM (ONE), LEFT OR RIGHT - R.R.

FOR VERSIONS WHERE IT IS FITTED

(Both)

Op. 7040B44 PROTECTIVE GRILL ATTACHMENT ONE R R

Op. 7040B42 PROTECTION GRILLE FOR ANIMAL TRANSPORT - R and R

FOR ALL VERSIONS

Op. 7040B26 LOAD PLATFORM COVER BLIND - R+R

Op. 7040E46 REAR COURTESY LIGHT ASSEMBLY - R R

Op. 7040E51 FRONT MODULAR COURTESY LIGHT ASSEMBLY - R R FOR VERSIONS WITH SUN-ROOF

(All)

Op. 7065C30 GRAB HANDLE (ONE) LEFT, RIGHT OR CENTRE PASSENGER COMPARTMENT INTERIOR - R.R

(Both)

Op. 7065C33 SUN BLIND WITH COURTESY MIRROR AND COURTESY LIGHT ONE LH OR RH R R

- Connect the negative battery terminal.
