F015 left fog light
- Make
- Fiat
- Model
- Croma Factory Service Manual
- Year
- 2005–2010
- Section
- Exterior lights › F015 left fog light
Connectors and pin-outsF015 left fog light

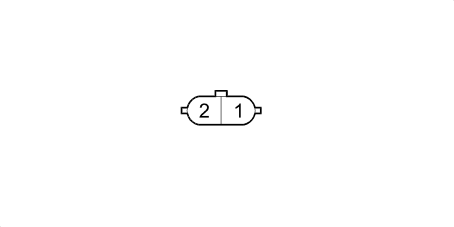

F015 LEFT FOG LIGHT
| Wiring | Colour |
|---|---|
| See 12 FRONT | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1 | MB | See B001A ENGINE COMPARTMENT JUNCTION UNIT (FRONT) | 4 | |
| 2 | 1 | N | See C010 LEFT FRONT EARTH | 3 | |
